Cruise Control Systems
›
Intelligent Cruise Control Systems
›
Description
›
Can Communication
›
CAN Communication Unit For 2WD Model
›
Input/Output Chart
Input/Output Chart

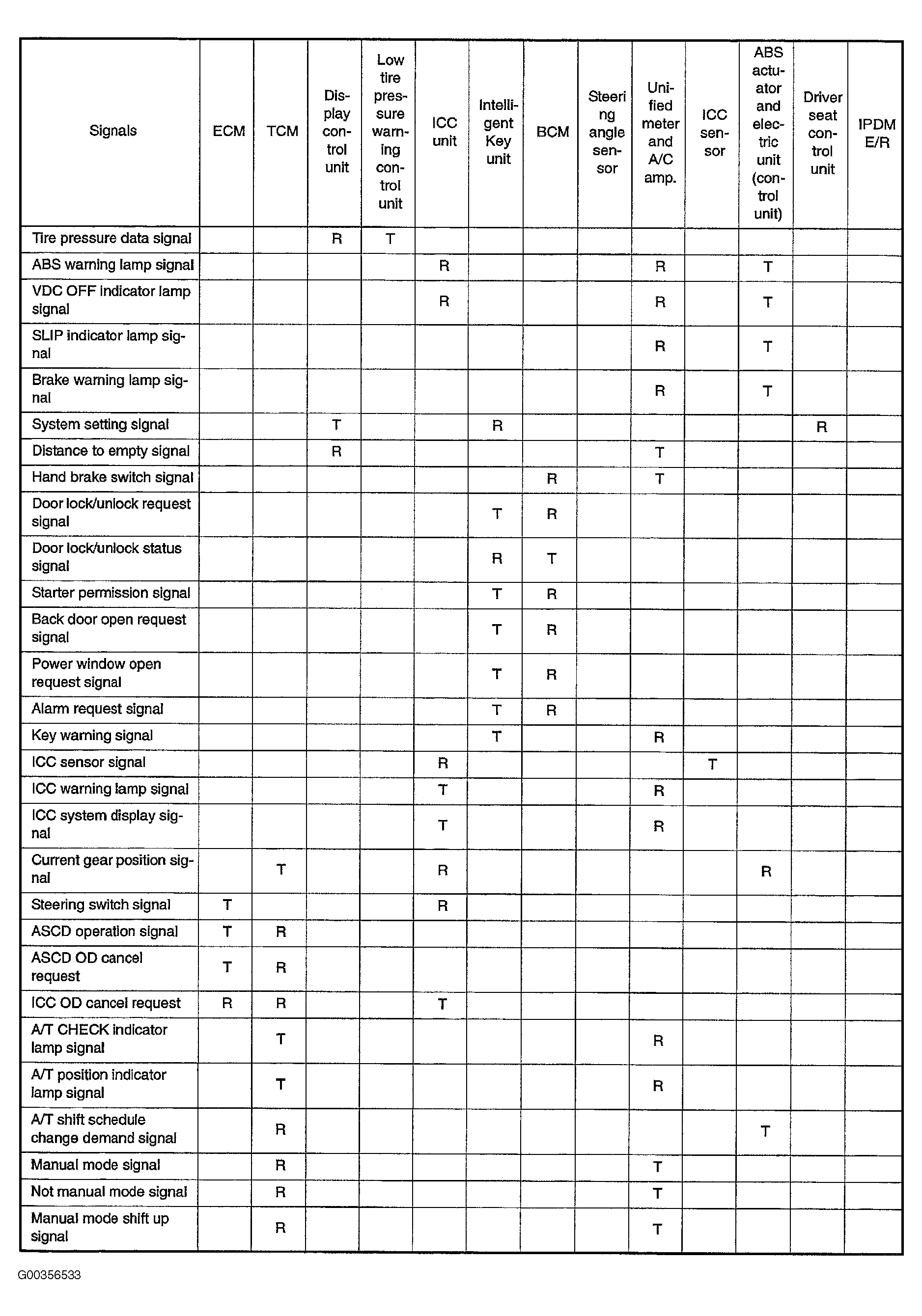

Fig 1: Identifying Input/Output Signal Chart (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

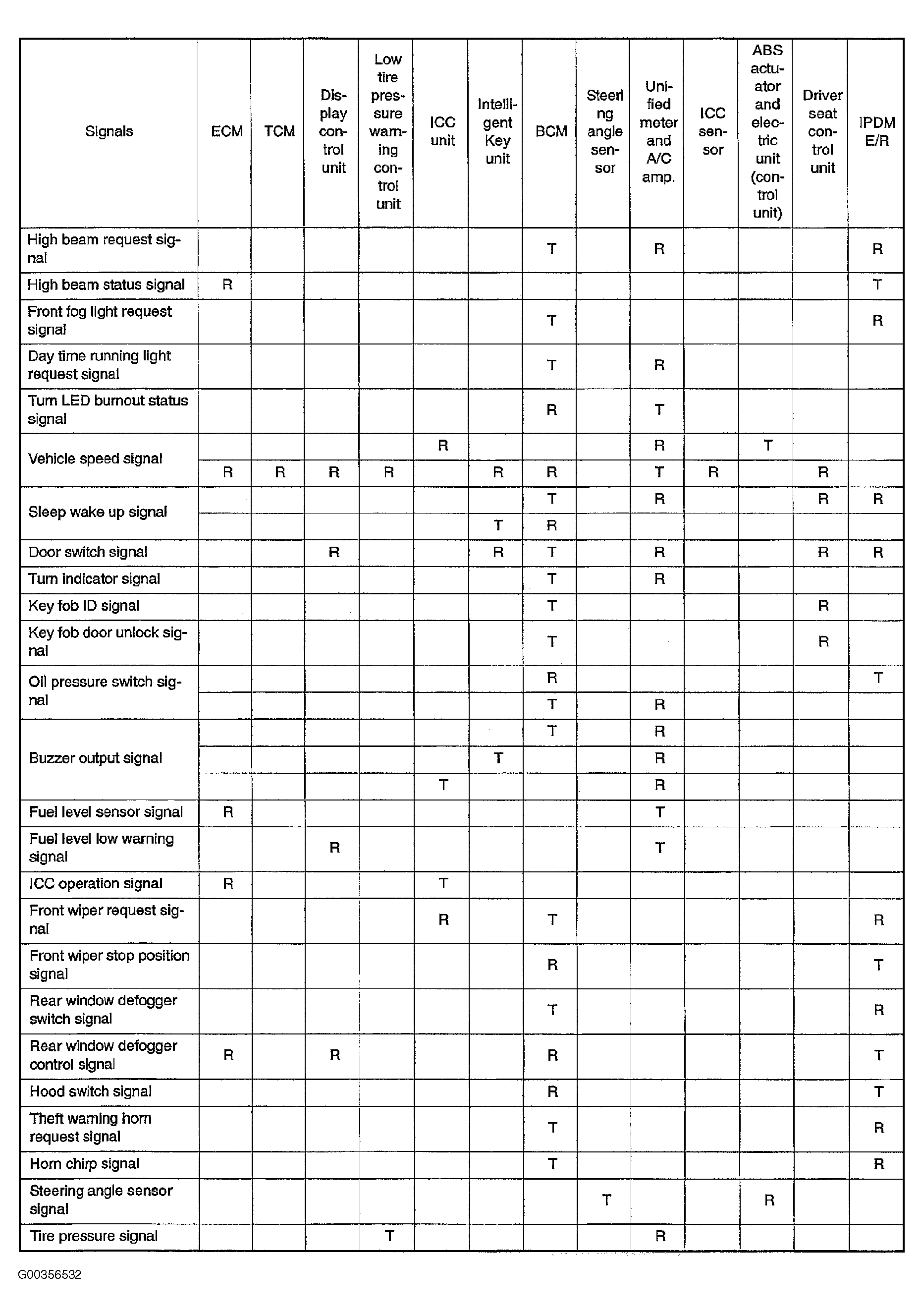

Fig 2: Identifying Input/Output Signal Chart (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

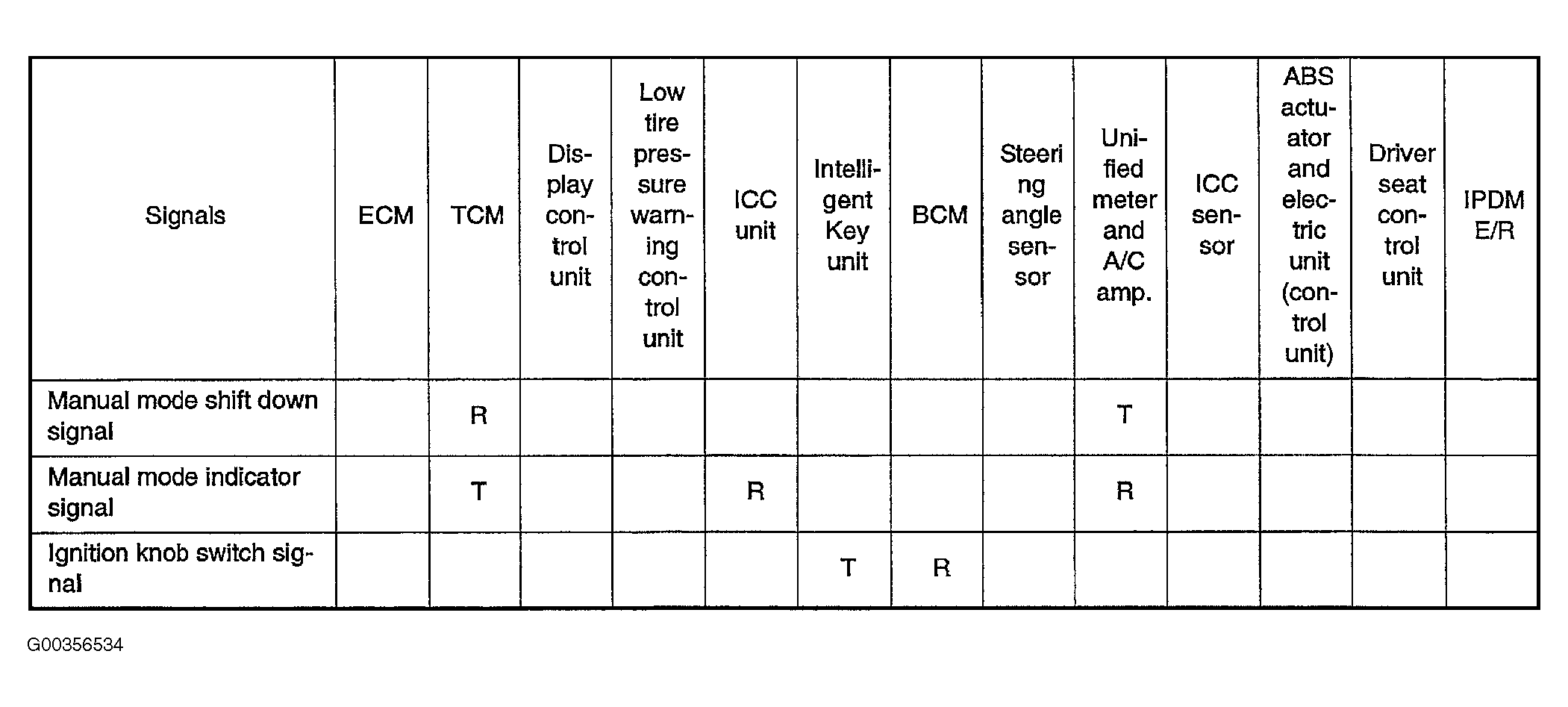

Fig 3: Identifying Input/Output Signal Chart (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

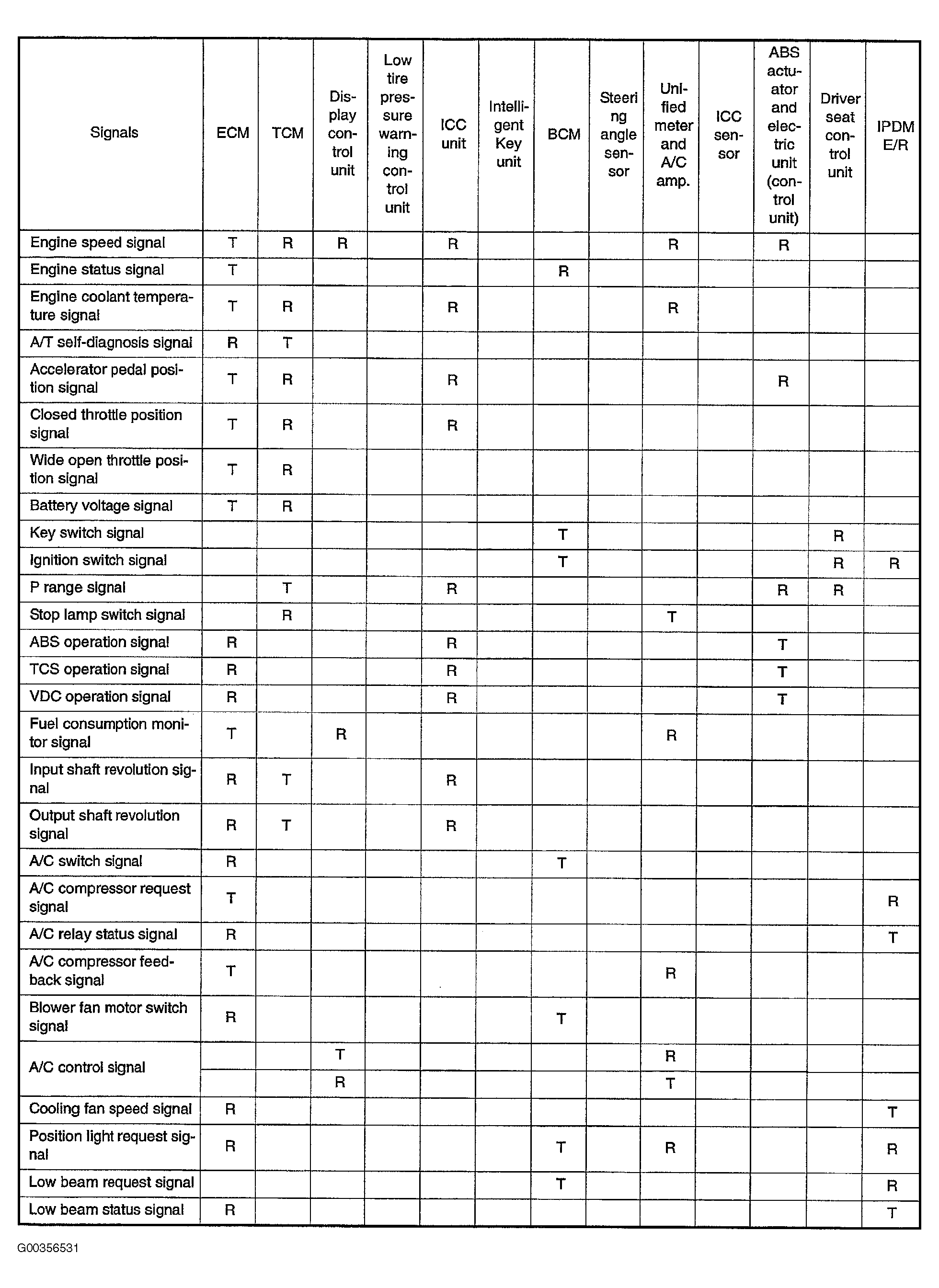

Fig 4: Identifying Input/Output Signal Chart (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
