Description
›
Can Communication
›
CAN Communication Unit For 2WD Model
›
System Diagram
System Diagram

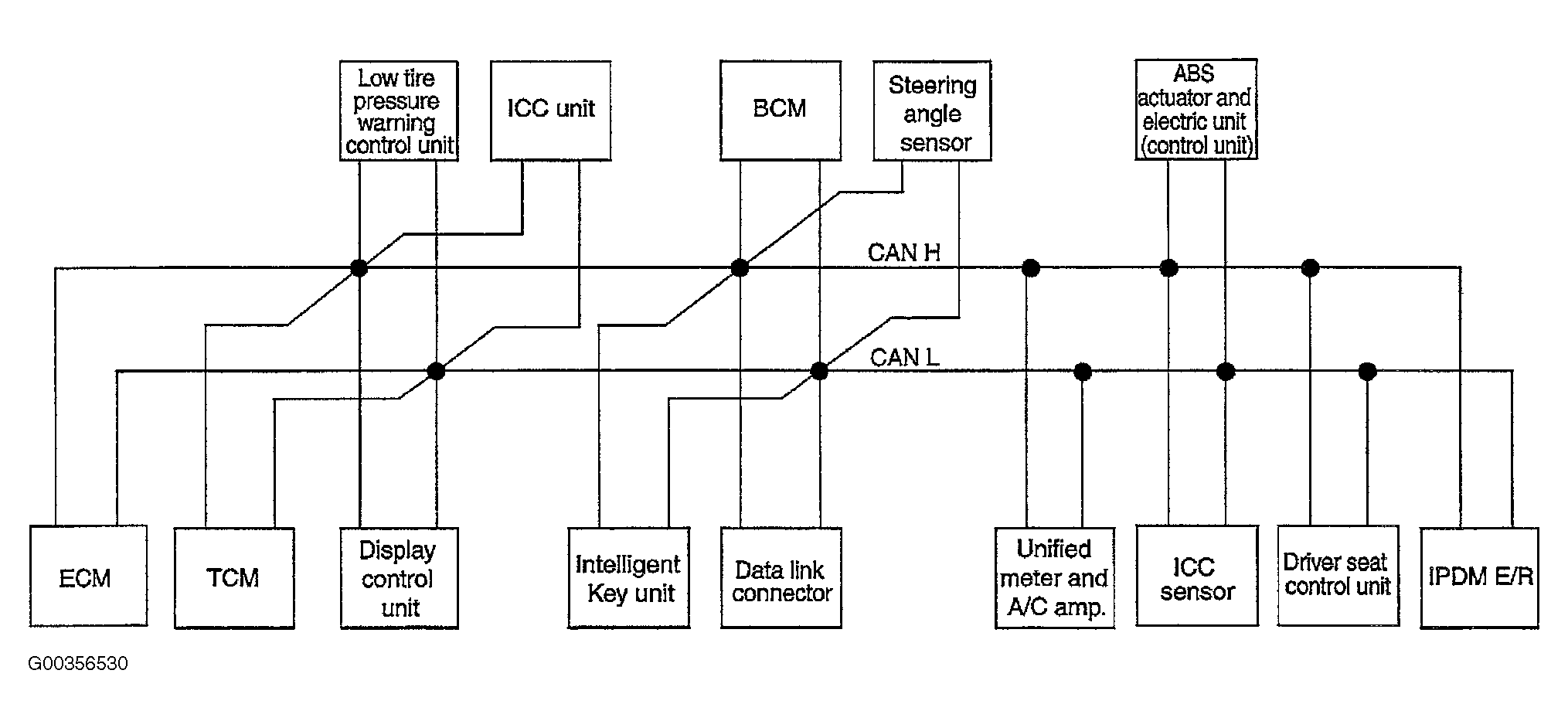

Fig 1: Identifying CAN Communication System Diagram For 2WD Models
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
