Terminals And Reference Value For ICC Sensor
Terminals And Reference Value For ICC Sensor

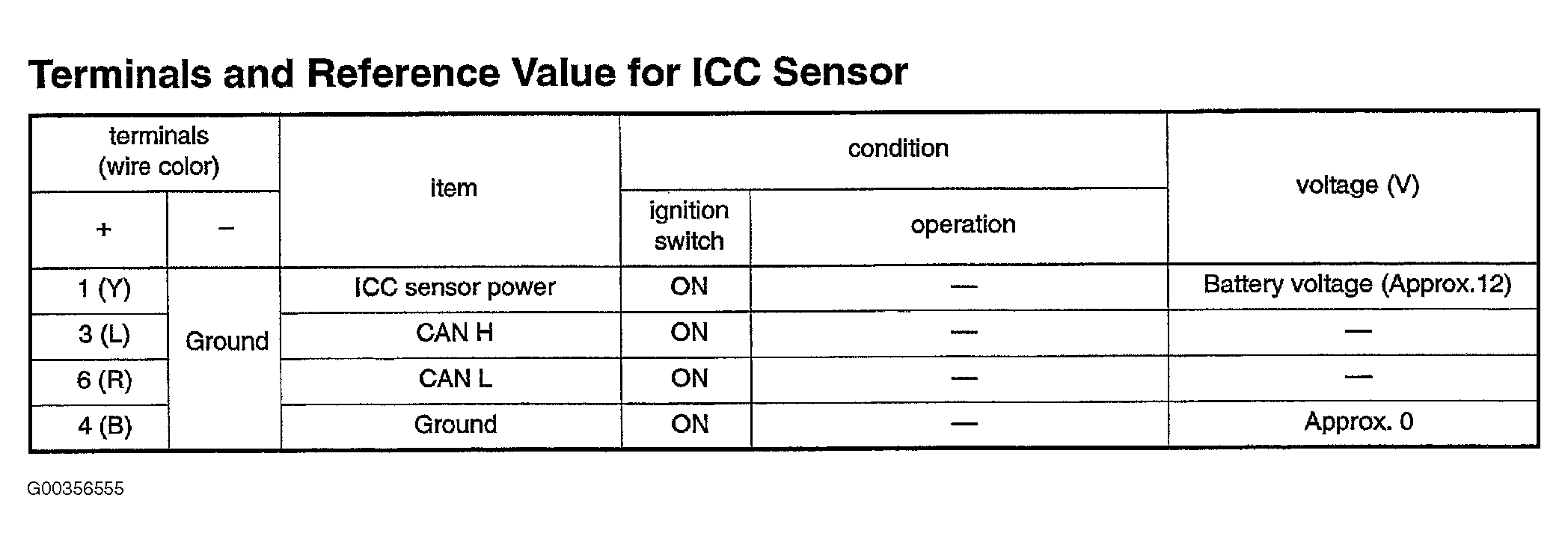

Fig 1: Identifying Terminals & Reference Value Chart For ICC Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
