System Description
›
Systems Controlled By BCM Directly
Systems Controlled By BCM Directly

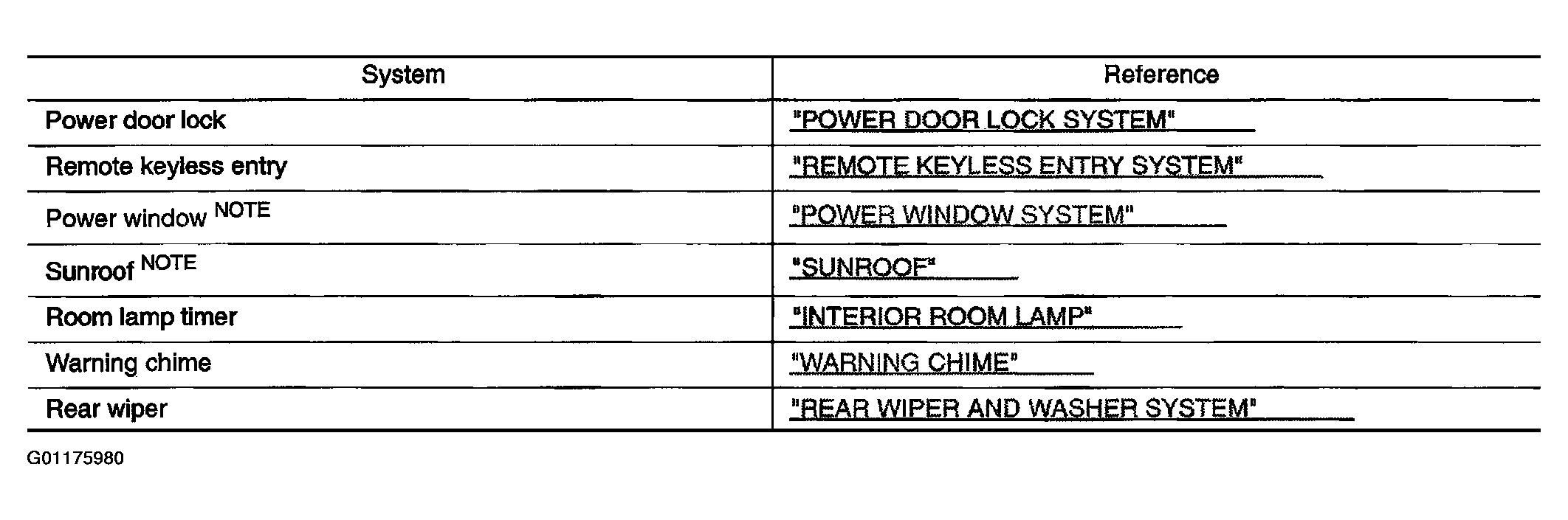

Fig 1: Systems Controlled By BCM Directly
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Power supply only. No system control.
Courtesy of NISSAN MOTOR CO., U.S.A.
