Back Door Auto Closure System
›
Terminals And Reference Value For Back Door Closure Control Unit
Terminals And Reference Value For Back Door Closure Control Unit

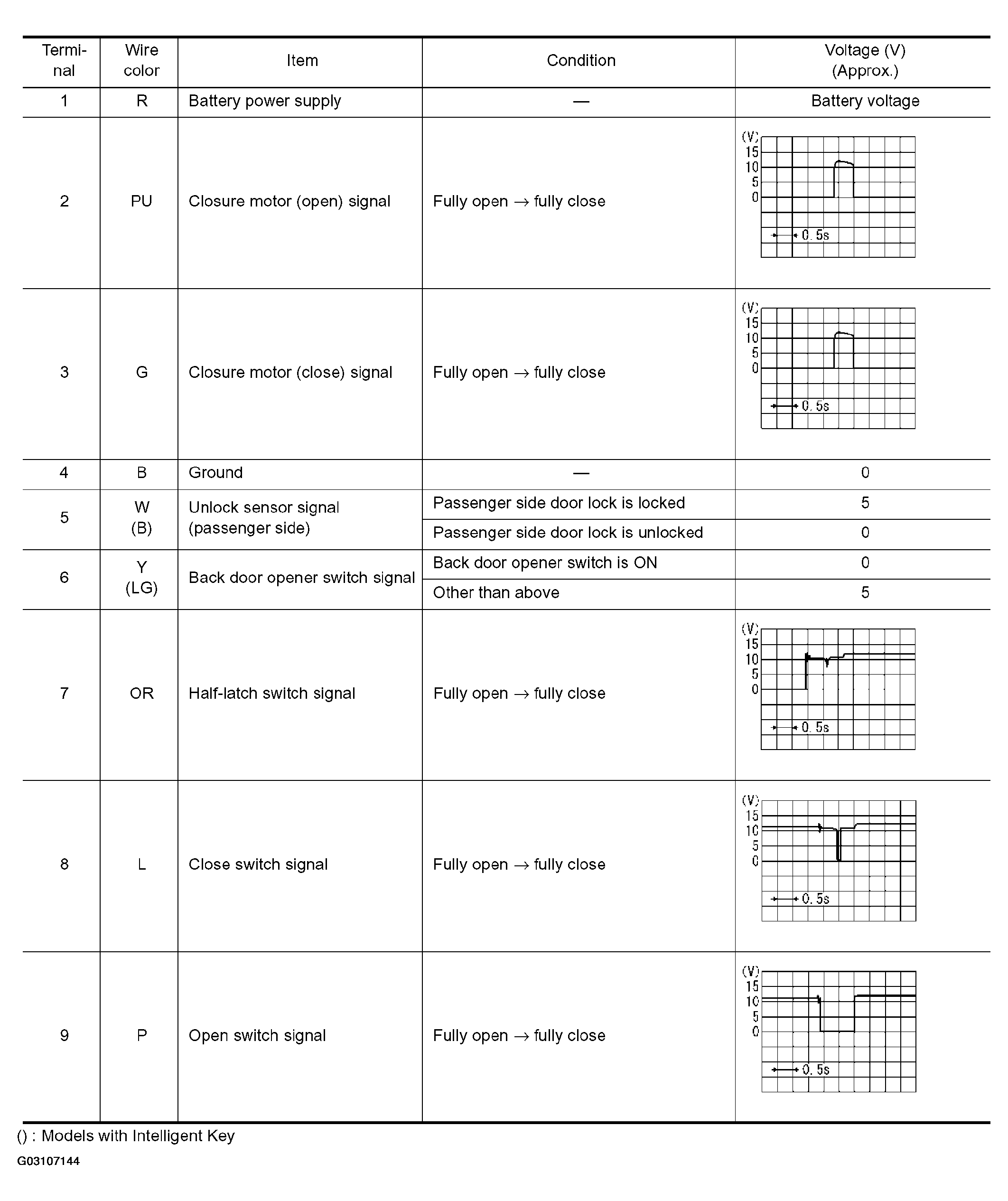

Fig 1: Identifying Terminals And Reference Value For Back Door Closure Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
