Intelligent Key System
›
Terminals and Reference Value for Steering Lock unit
Terminals and Reference Value for Steering Lock unit

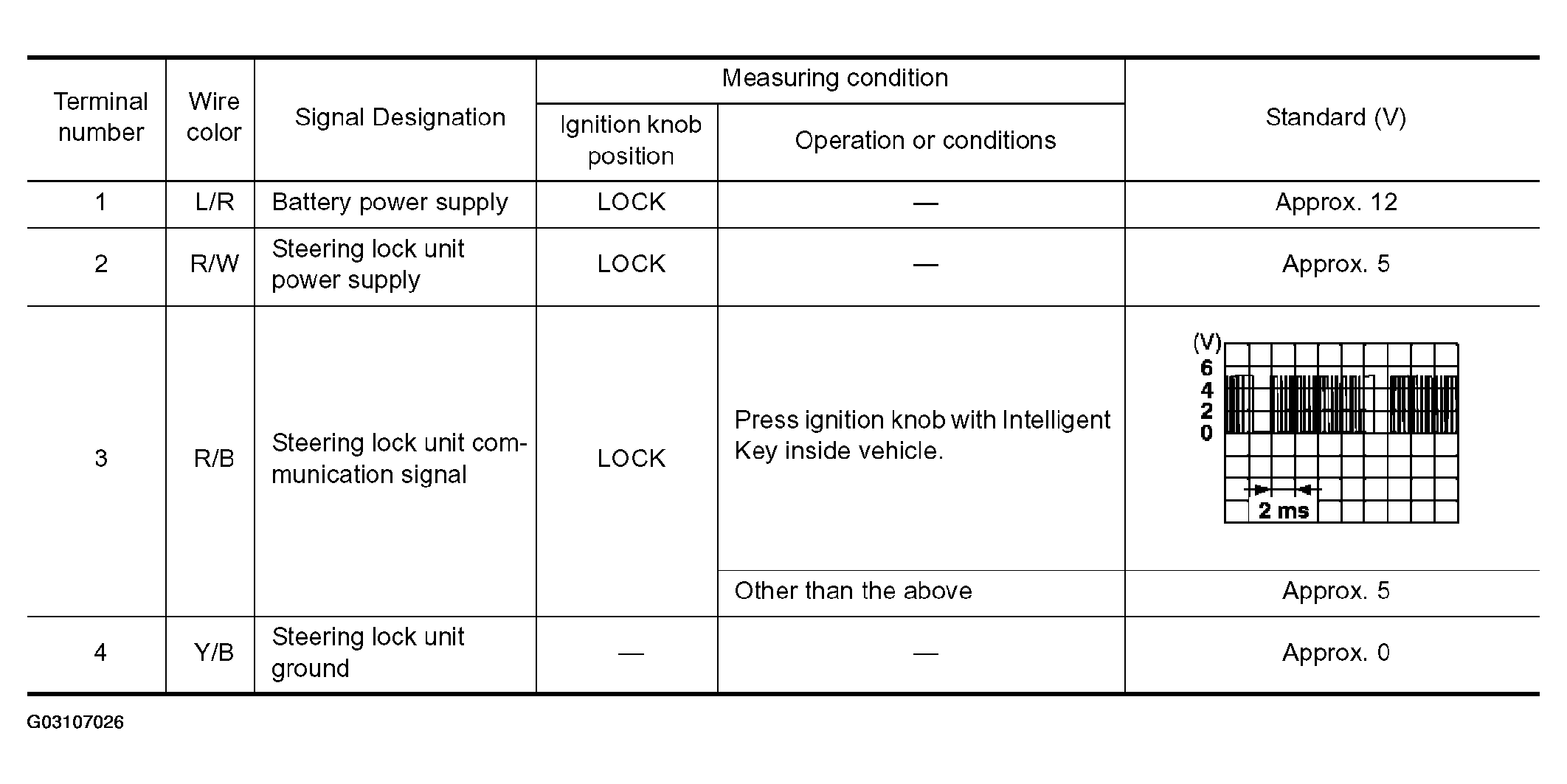

Fig 1: Steering Lock Unit Terminals And Reference Value
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
