Parking Brake Control
›
Components
Parking Brake Control: Components

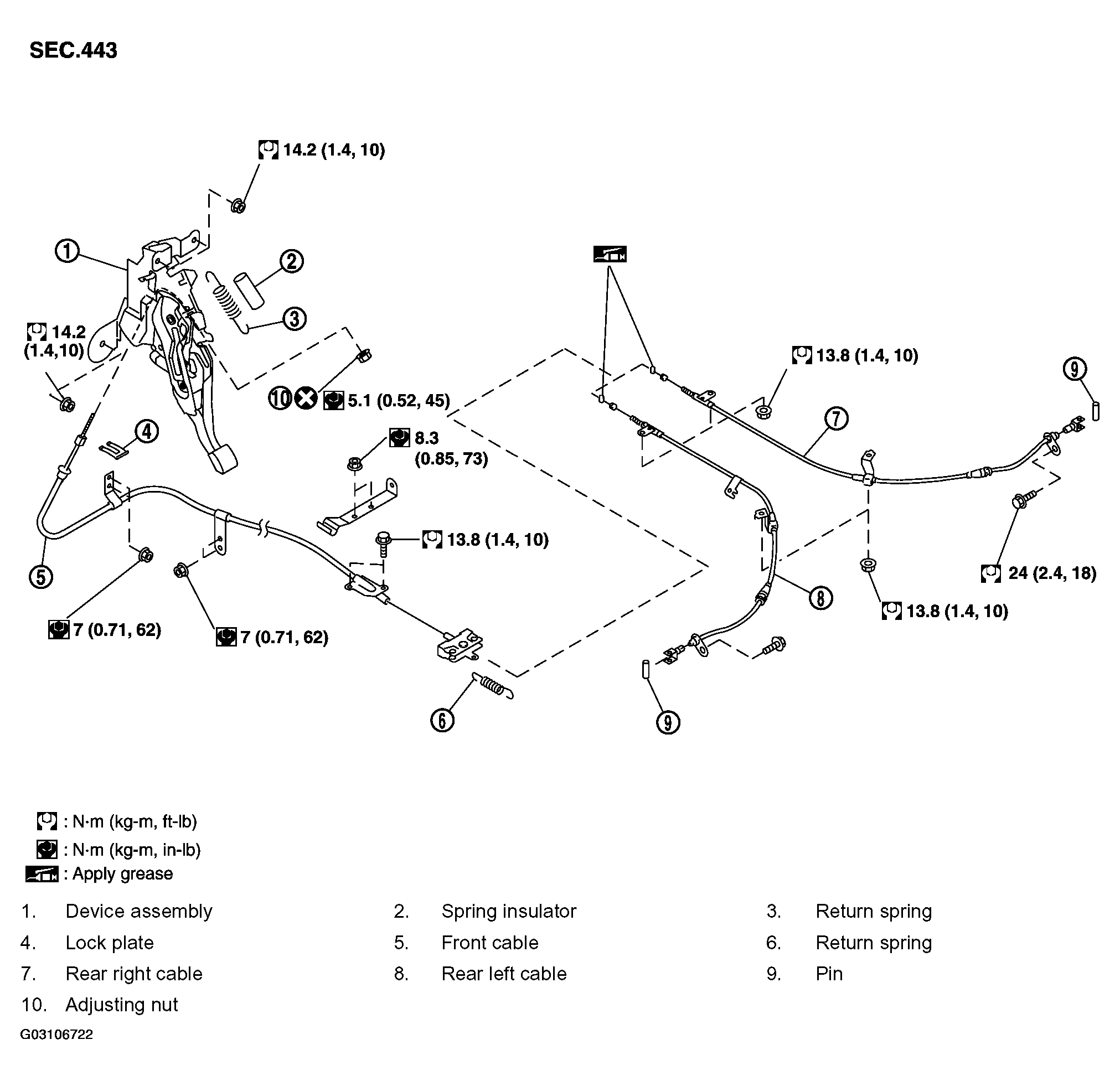

Fig 1: Identifying Parking Brake Control Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
