Repair and Diagnosis
›
Electrical
›
Body Electrical
›
IPDM E/R (Intelligent Power Distribution Module Engine Room)
›
Consult-II
›
IPDM E/R Terminal Arrangement
IPDM E/R Terminal Arrangement

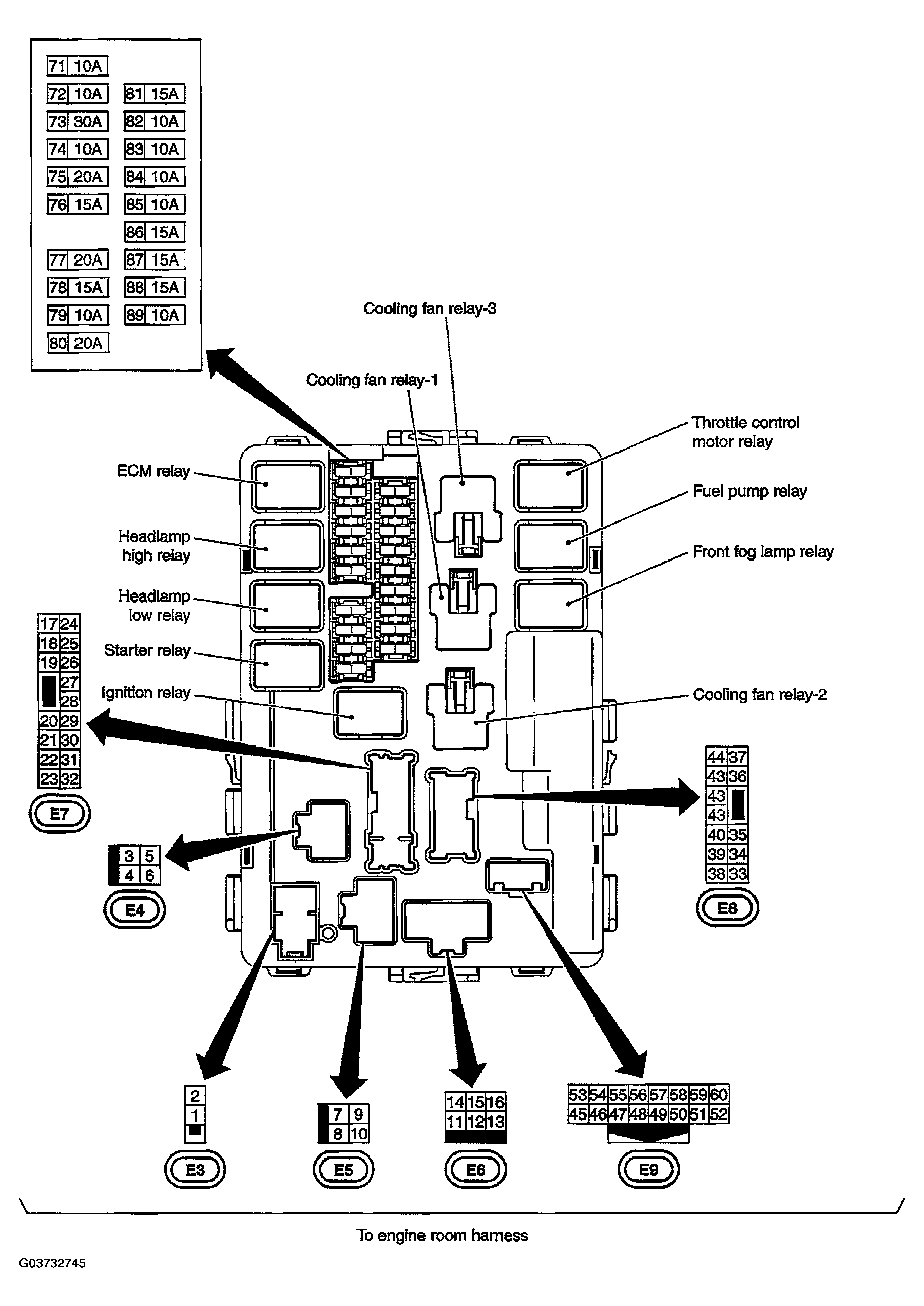

Fig 1: Identifying IPDM E/R Terminal Arrangement
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
