Data Monitor

Operation Procedure

Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
Touch either "MAIN SIGNALS", "CAN DIAG SUPPORT MNTR" or "SELECTION FROM MENU" on the "DATA MONITOR" screen.

Fig 1: Identifying CONSULT-II Display Screen - DATA MONITOR
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
When "SELECTION FROM MENU" is selected, touch individual items to be monitored. When "MAIN SIGNALS" is selected, main items will be monitored.
Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".

Fig 2: Identifying Unified Meter & A/C Amp Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

Display Item List

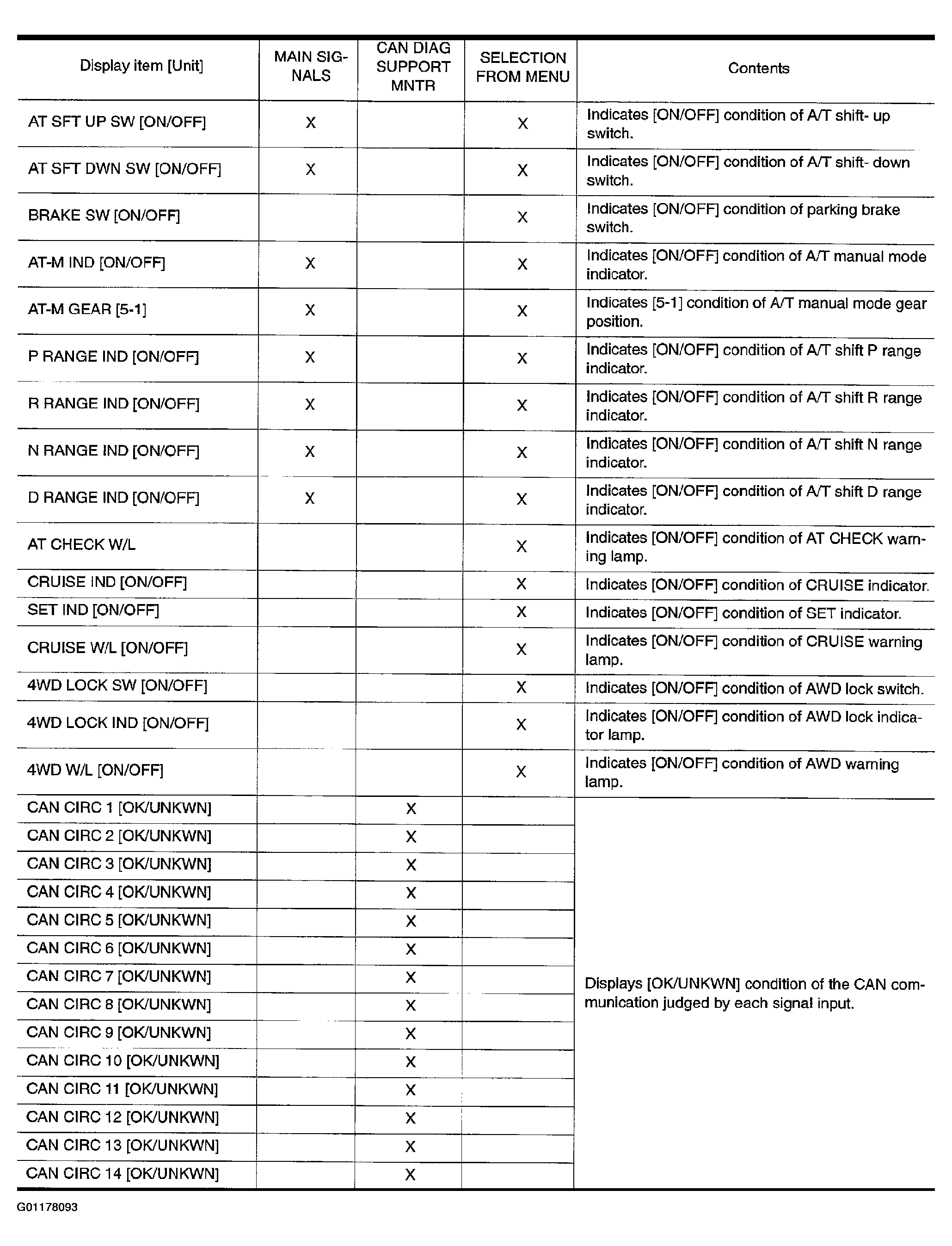

Fig 3: Identifying Display Item List (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

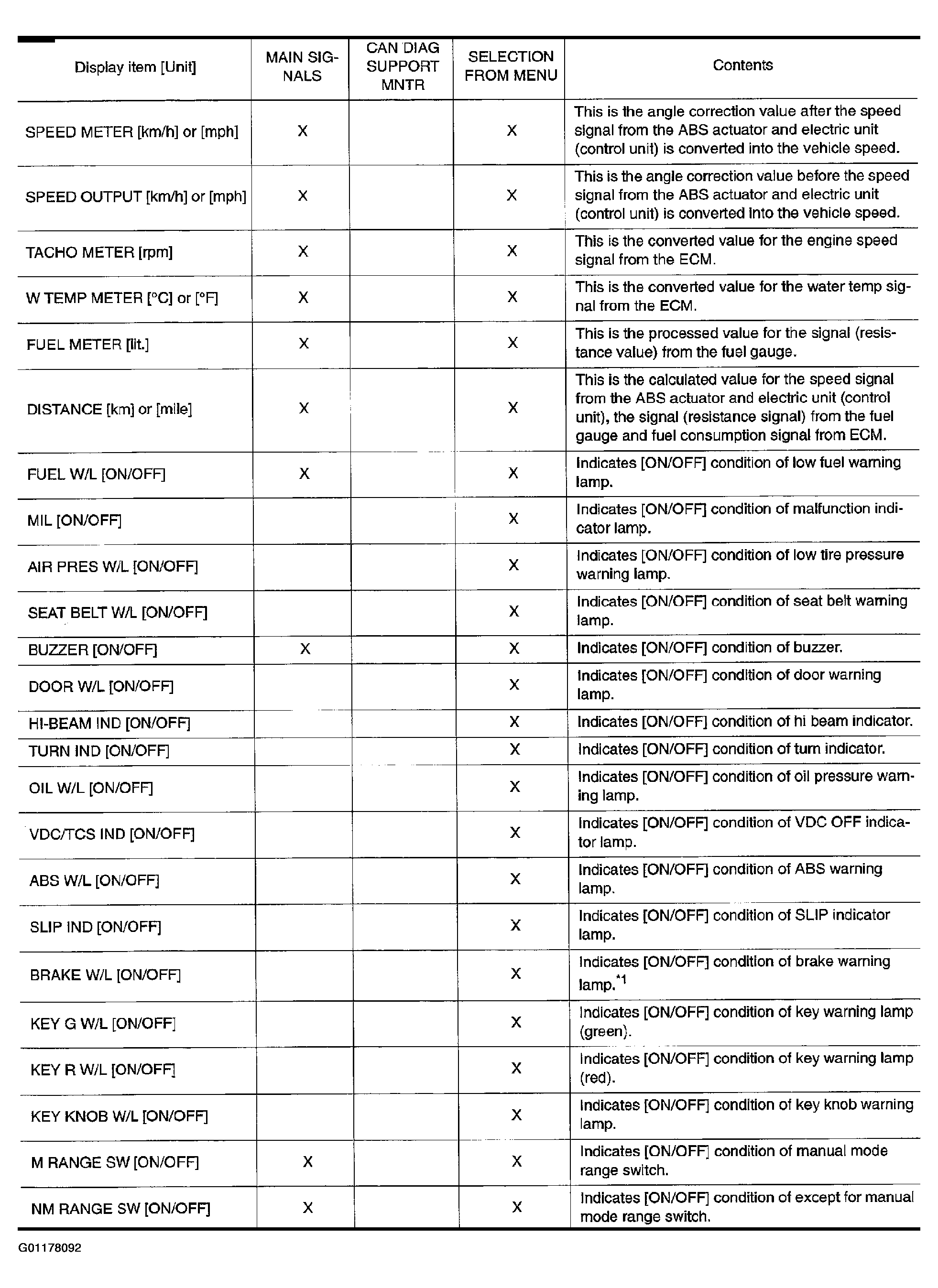

Fig 4: Identifying Display Item List (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

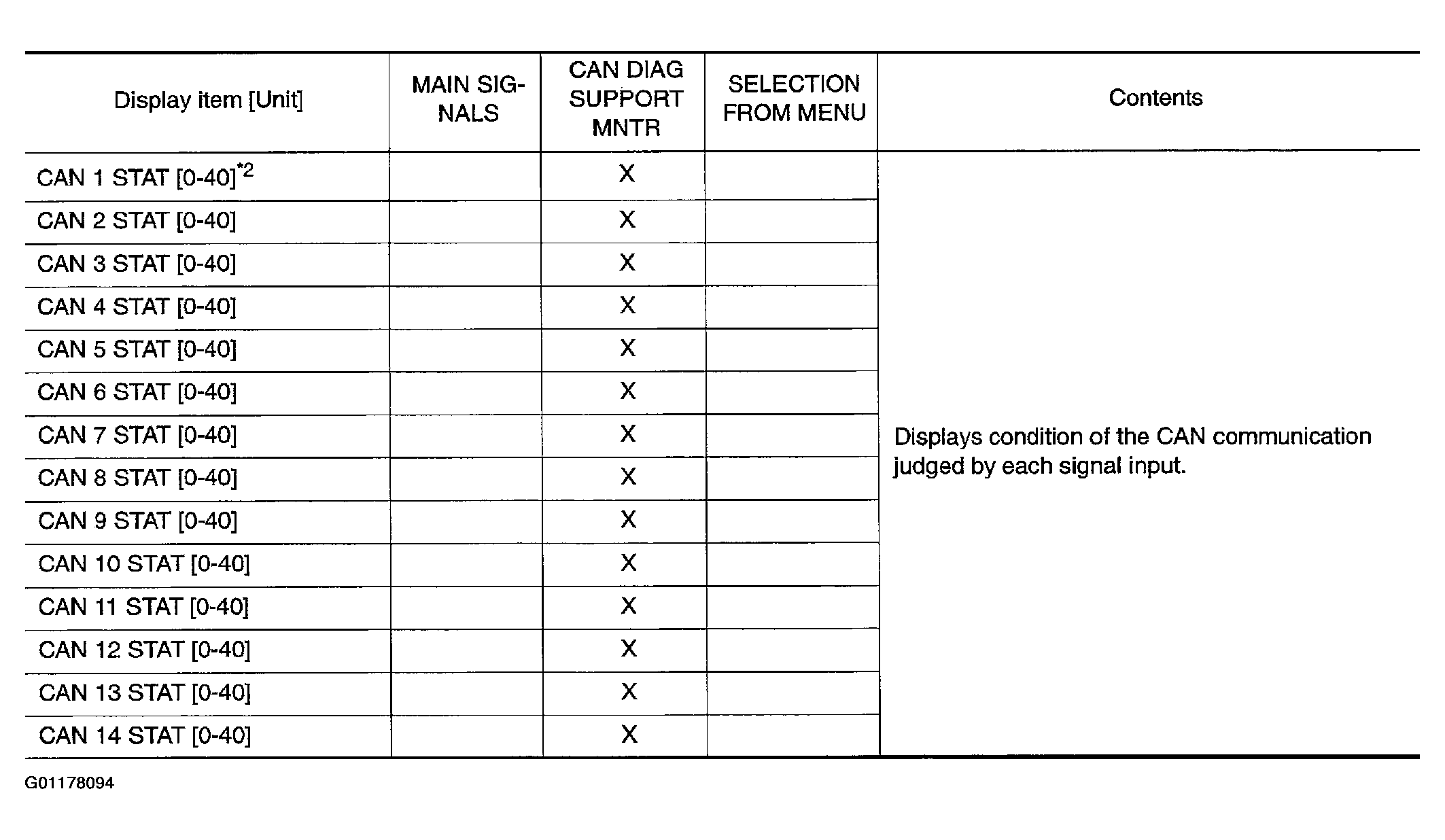

Fig 5: Identifying Display Item List (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.

*1: Monitor keeps indicating "OFF" when break warning lamp is on by the parking brake operation or low break fluid level.

*2: CAN status indicates the condition of the CAN communication judged by each signal input.

Normal: If any problems were not found in the past, CAN status indicates "0". In case of operating properly at the present in spite of having problem in the past, then CAN status indicates "39-1".
Malfunction: If there is a malfunction, CAN indicates "40".

After returning to normal condition, every time ignition switch is turned OFF from ON, the indication will change like "39" to "38" to "37"..."1". And if a malfunction is detected again, CAN status indicates "40". (Though returning to the normal condition, "0" is not indicated. To reset, select and press the "ERASE" on the "SELF-DIAGNOSIS" screen.)
