Center Console
›
Notes
Center Console: Notes

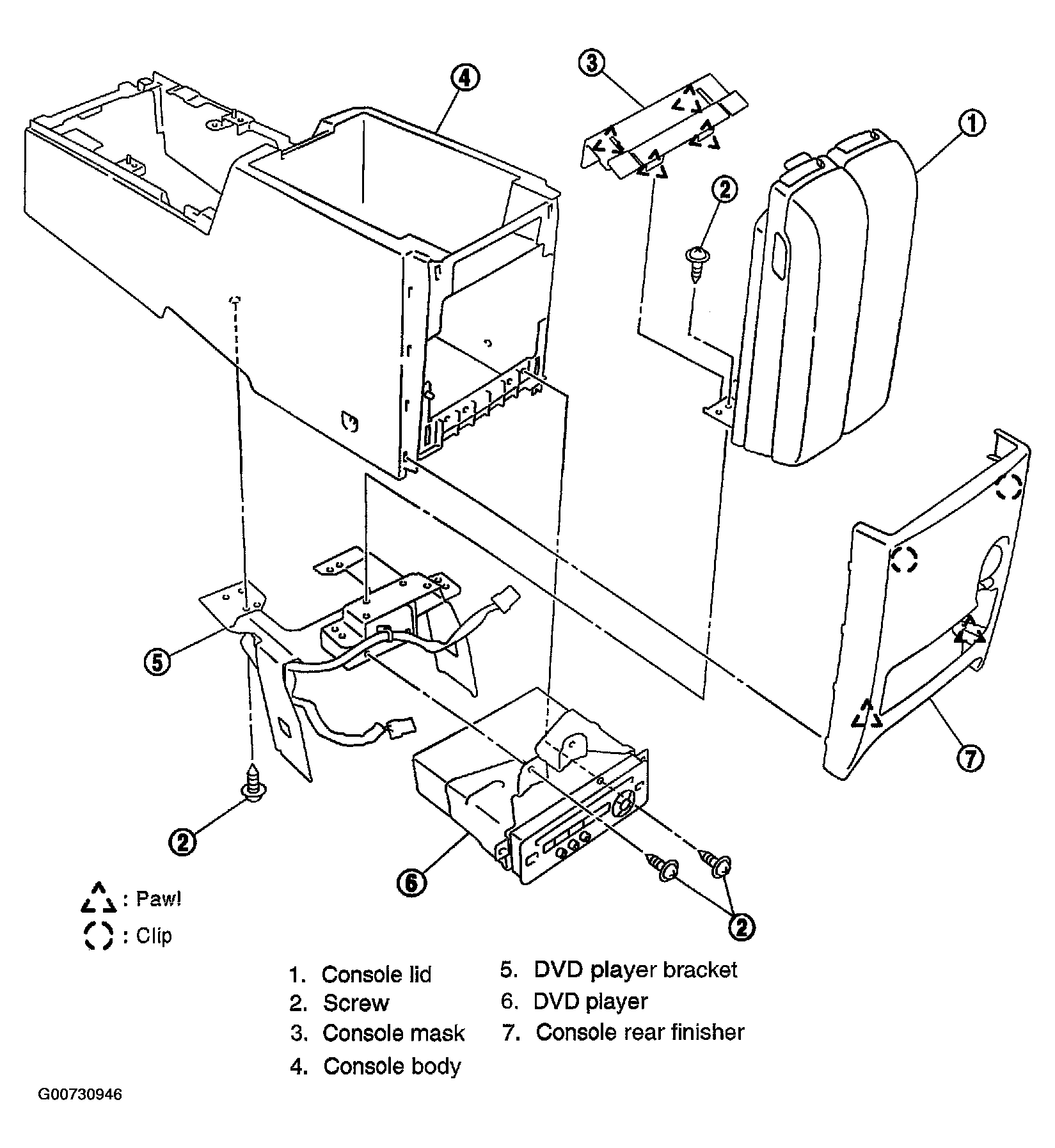

Fig 1: Displaying Center Console Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
