Lubrication System
›
System Drawing
System Drawing

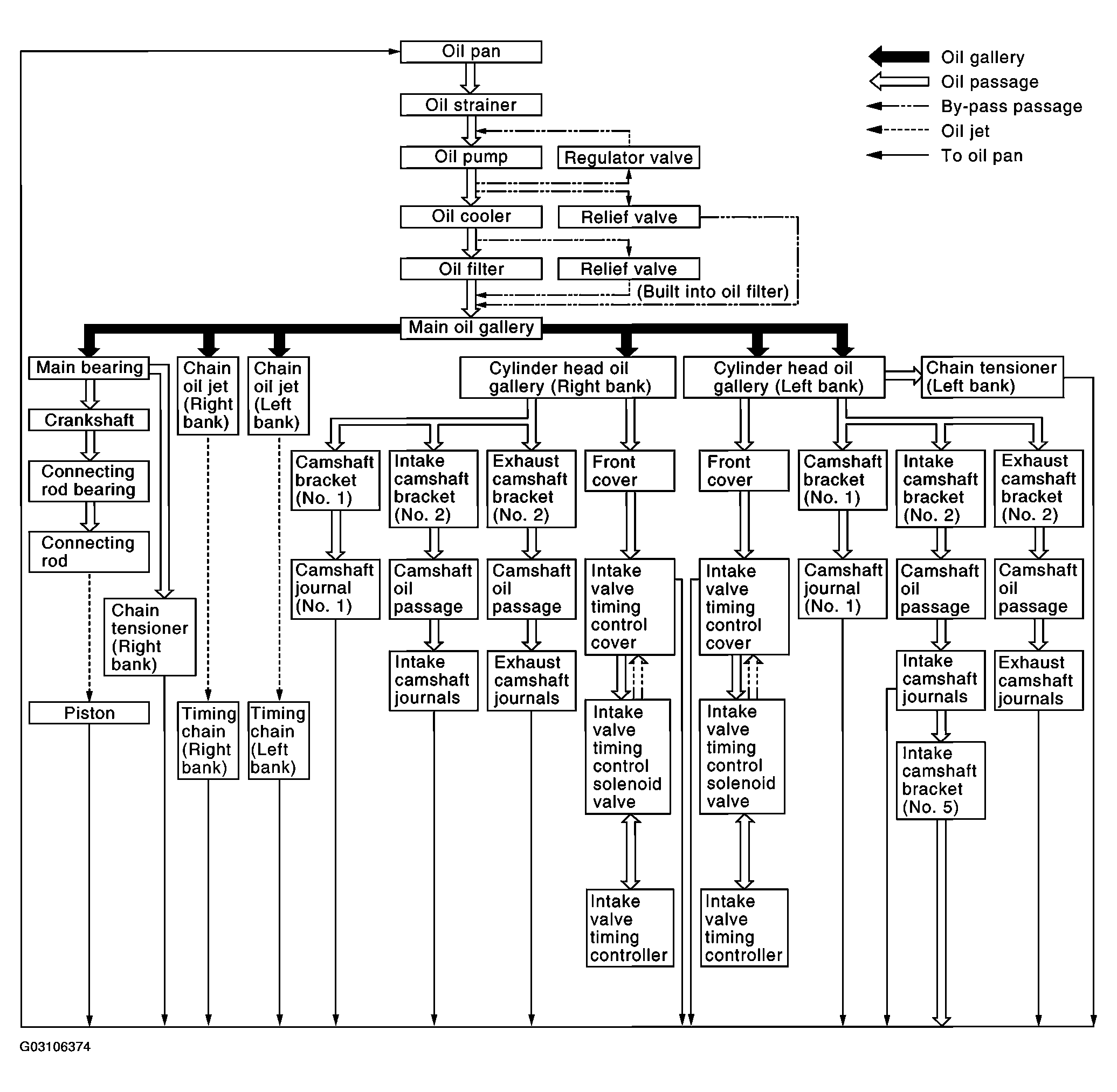

Fig 1: Lubrication System Drawing
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
