Diagnostic Procedure

For wiring diagram, see Fig 1 . For diagnostic procedure, see Fig 2 .

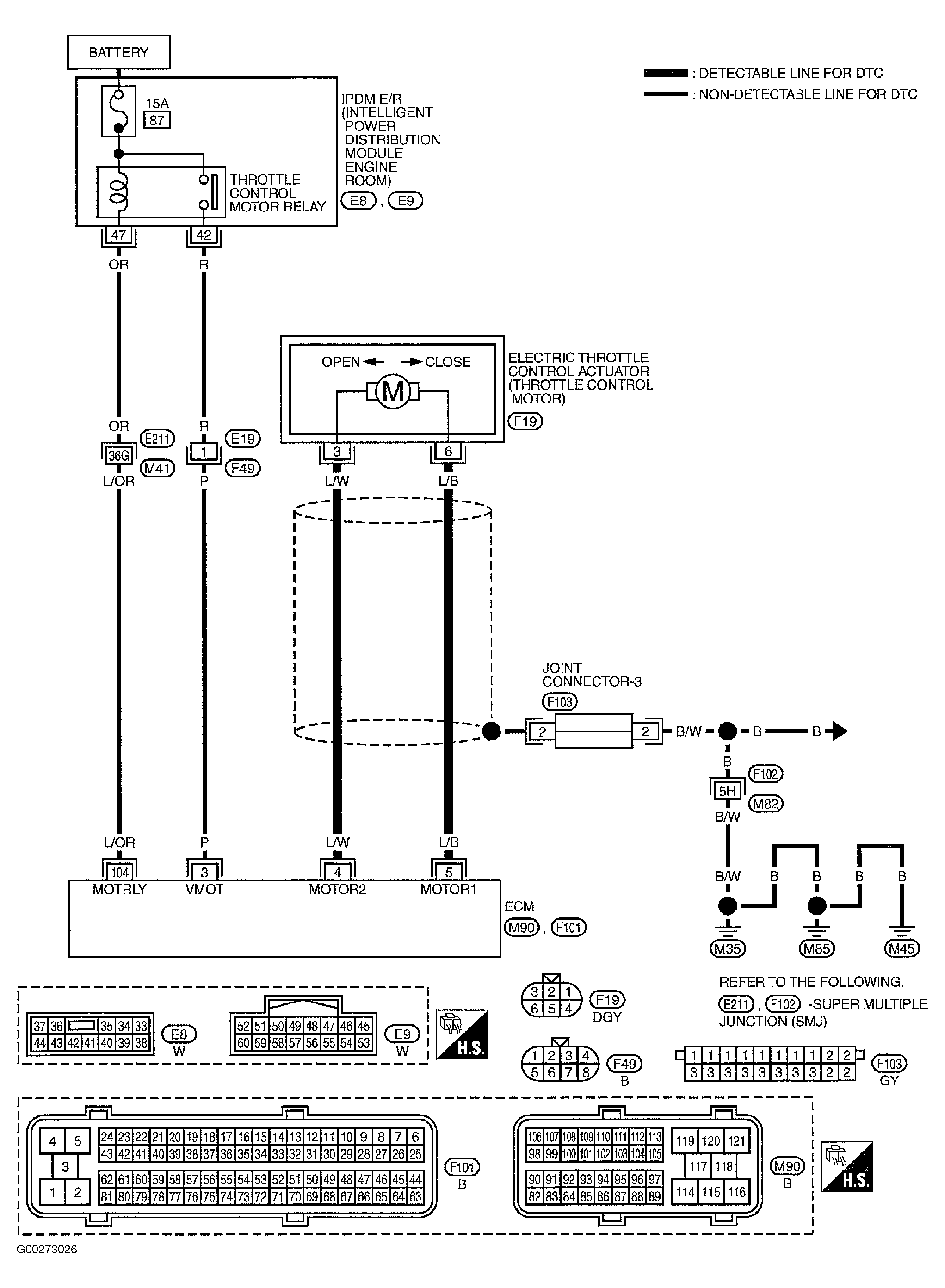

Fig 1: Throttle Control Motor Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

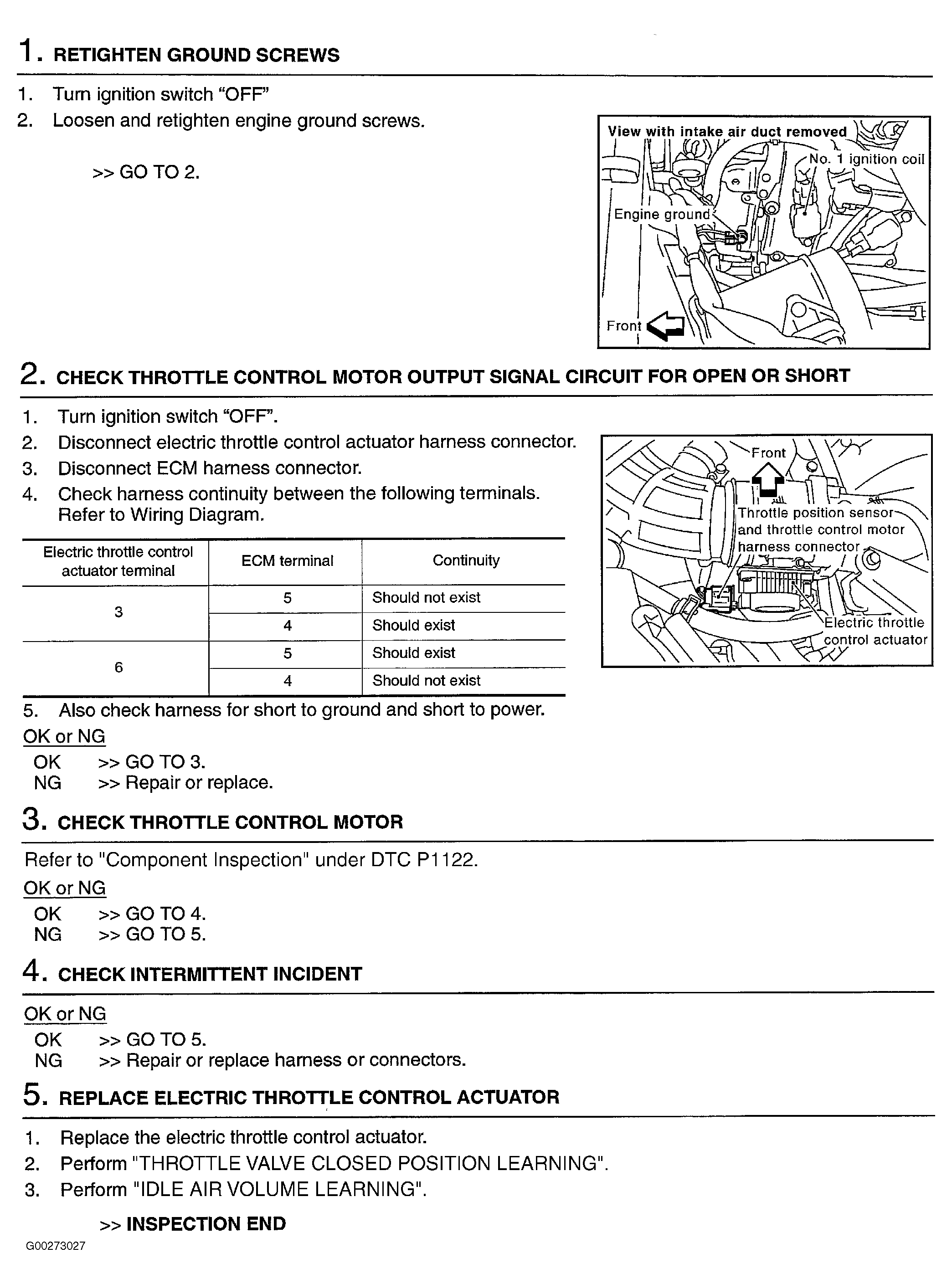

Fig 2: Diagnostic Procedure For Throttle Control Motor

Courtesy of NISSAN MOTOR CO., U.S.A.
