DTC P1564: Automatic Speed Control Device (ASCD) Steering Switch
›
Diagnostic Procedure
Diagnostic Procedure
For wiring diagram, see
Fig 1
. For diagnostic procedure, see
Fig 2
and
Fig 3
.

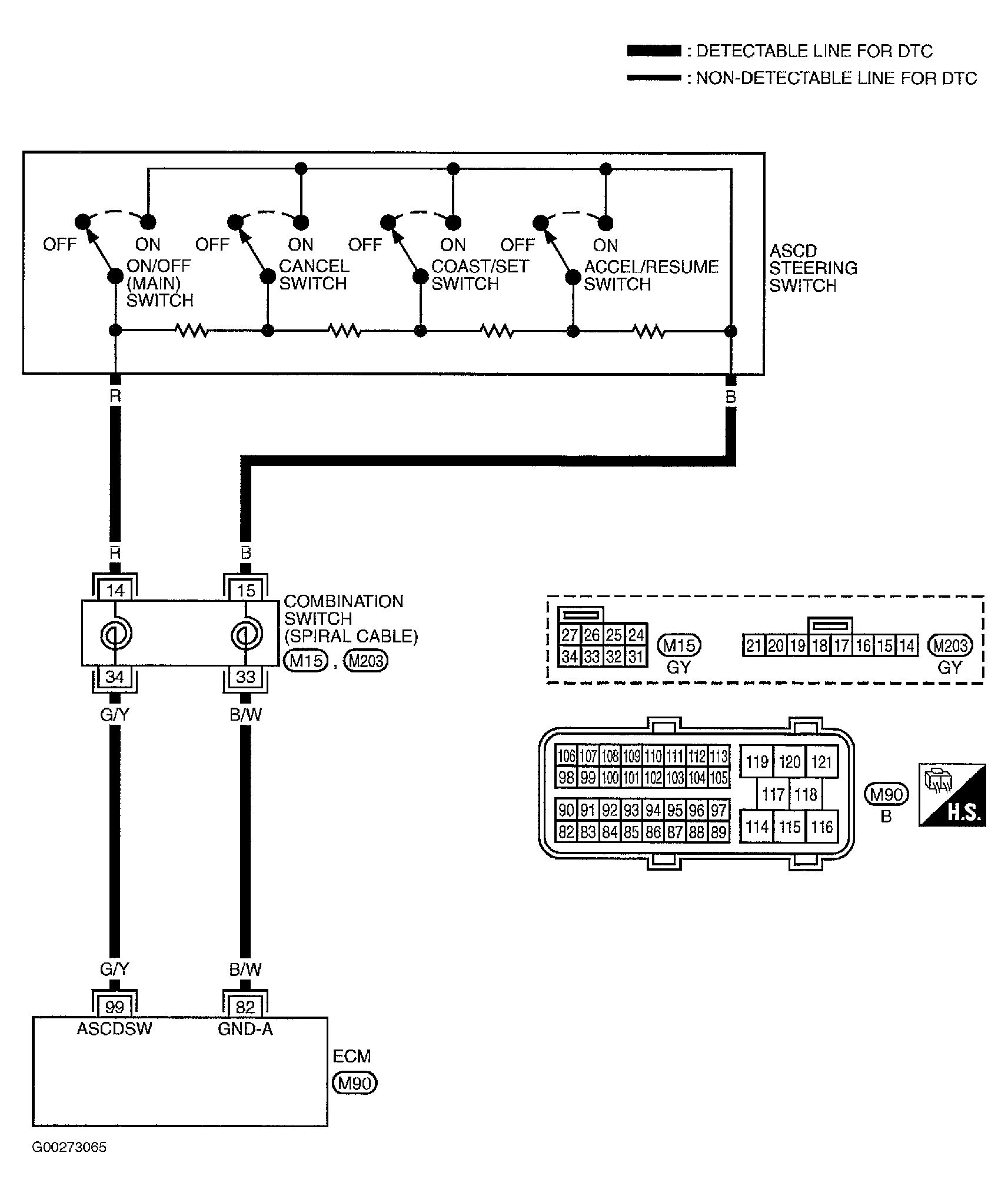

Fig 1: ASCD Steering Switch Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

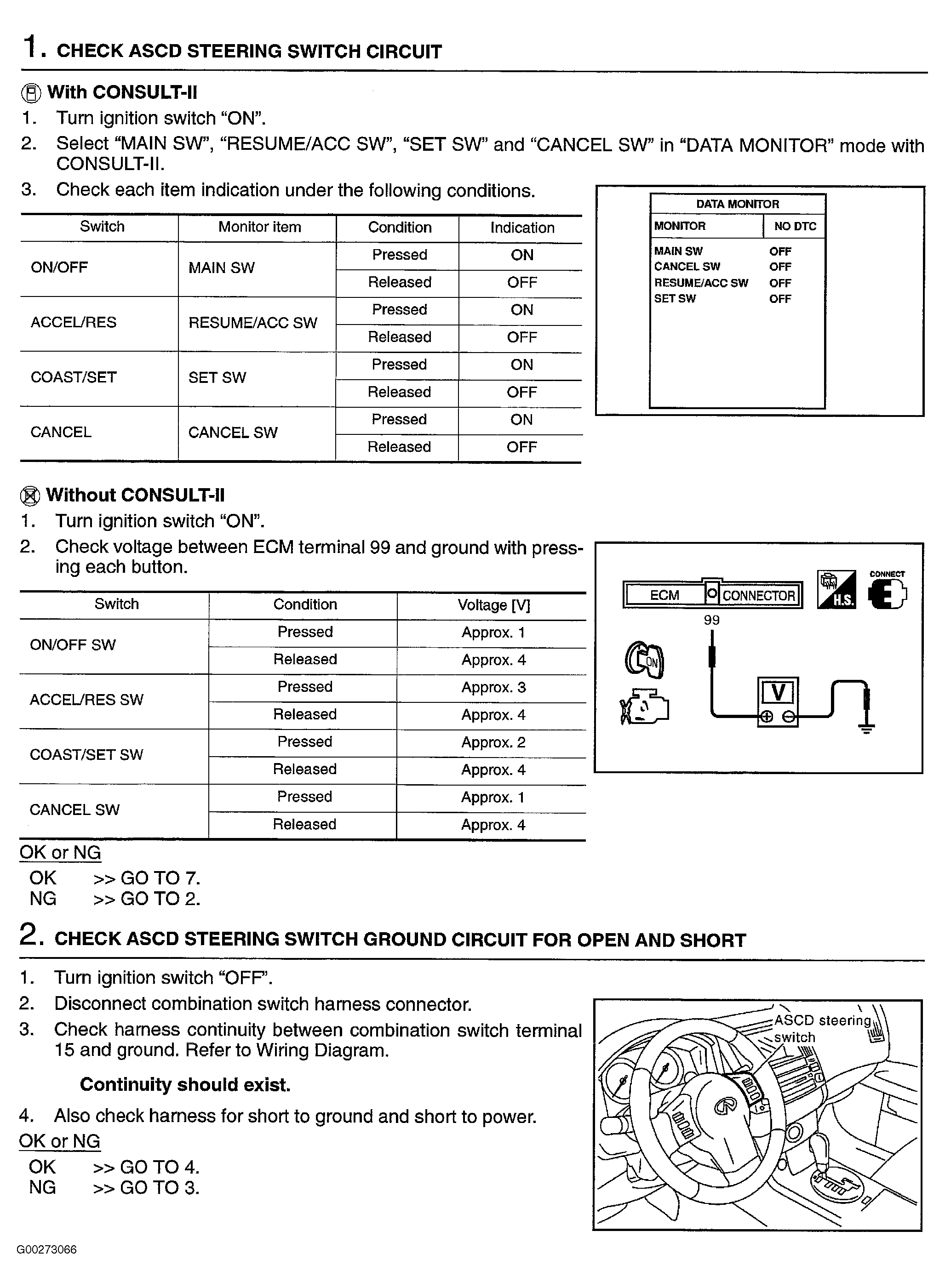

Fig 2: Diagnostic Procedure For ASCD Steering Switch (Step 1-2)
Courtesy of NISSAN MOTOR CO., U.S.A.

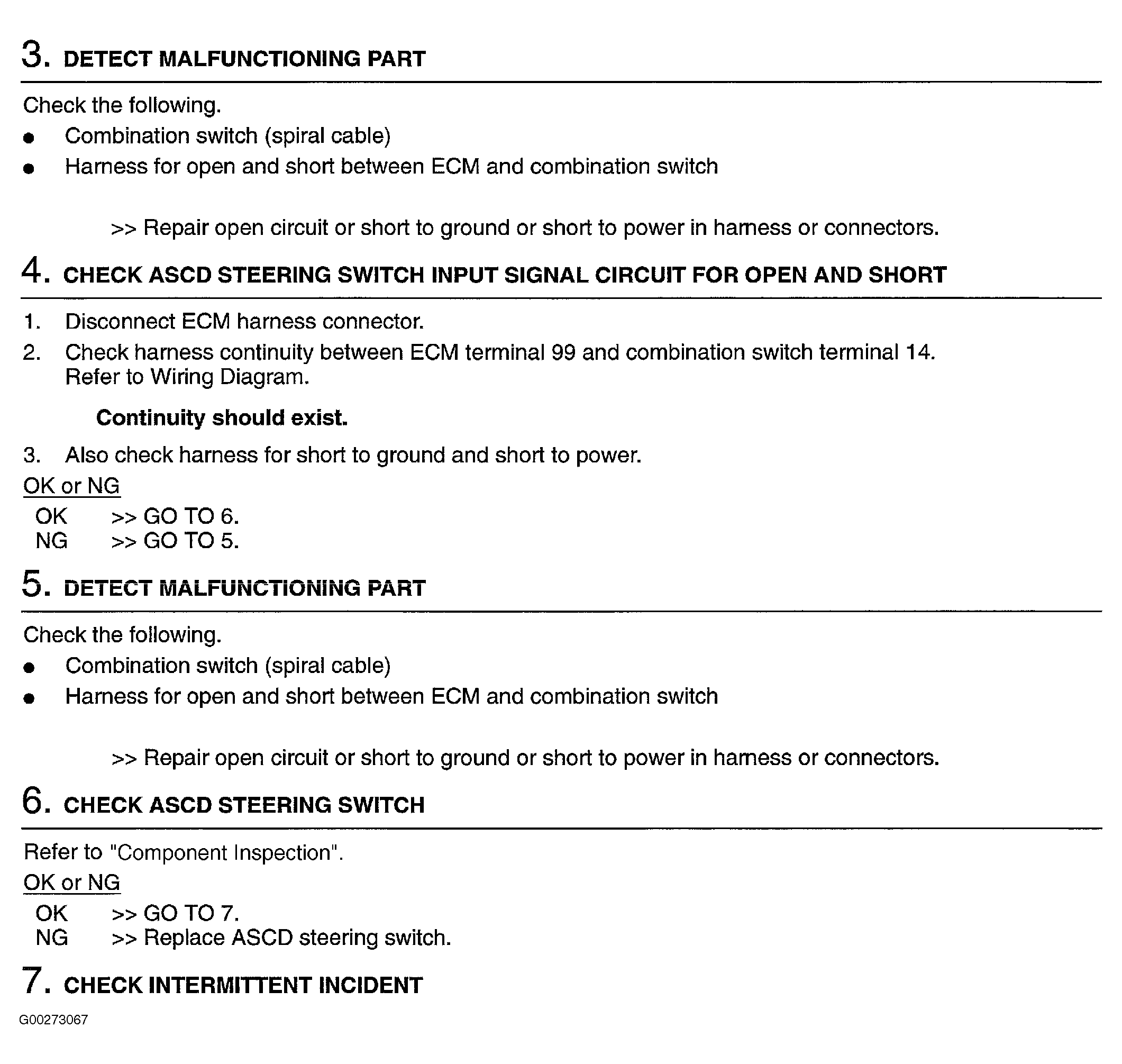

Fig 3: Diagnostic Procedure For ASCD Steering Switch (Step 3-7)
Courtesy of NISSAN MOTOR CO., U.S.A.
