Component Inspection

For component inspection, see Fig 1 .

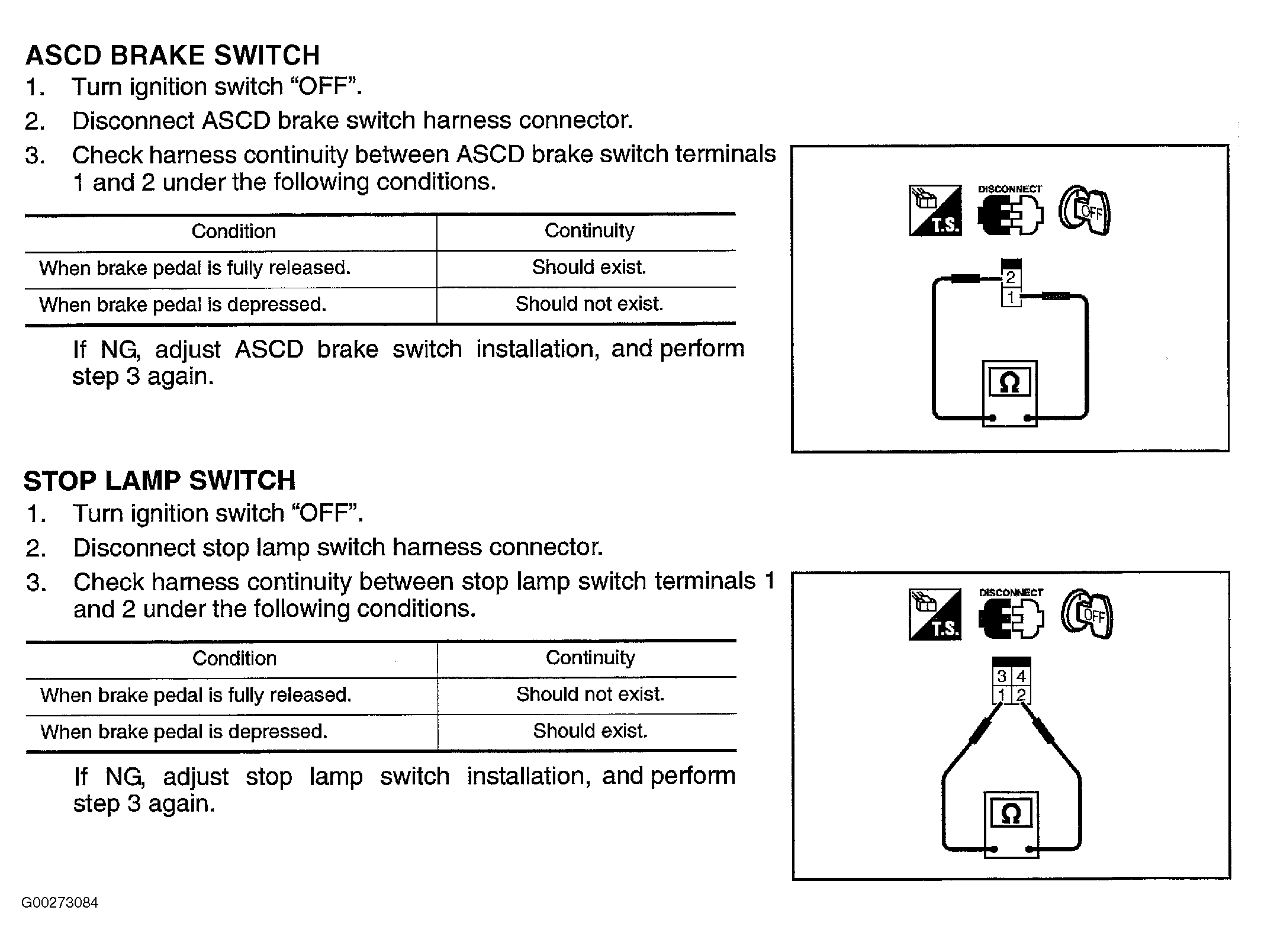

Fig 1: Component Inspection Of ASCD Brake Switch
G00273084Courtesy of NISSAN MOTOR CO., U.S.A.
