Diagnostic Procedure

For wiring diagram, see Fig 1 . For diagnostic procedure, see Fig 2 -Fig 5 .

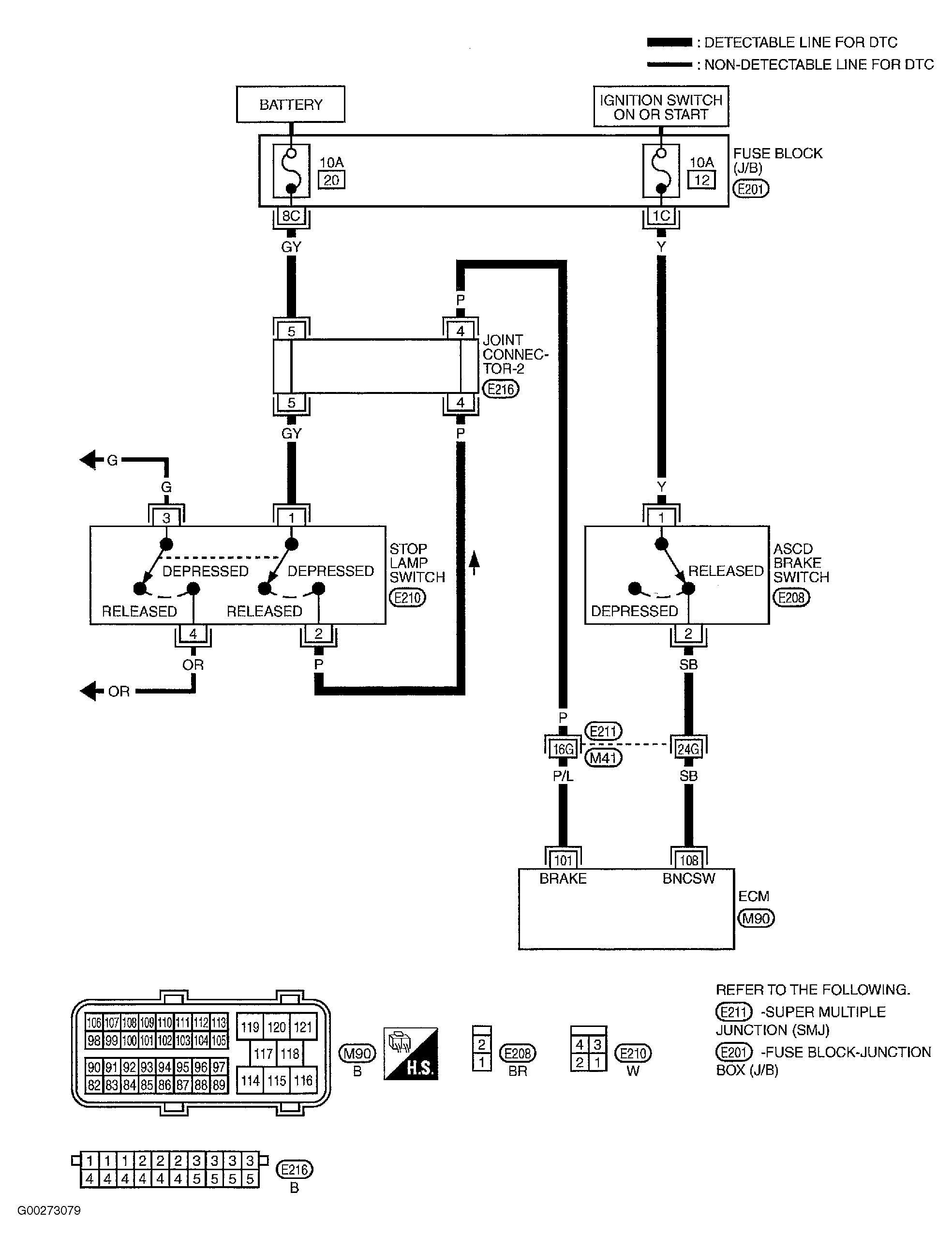

Fig 1: ASCD Brake Switch Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

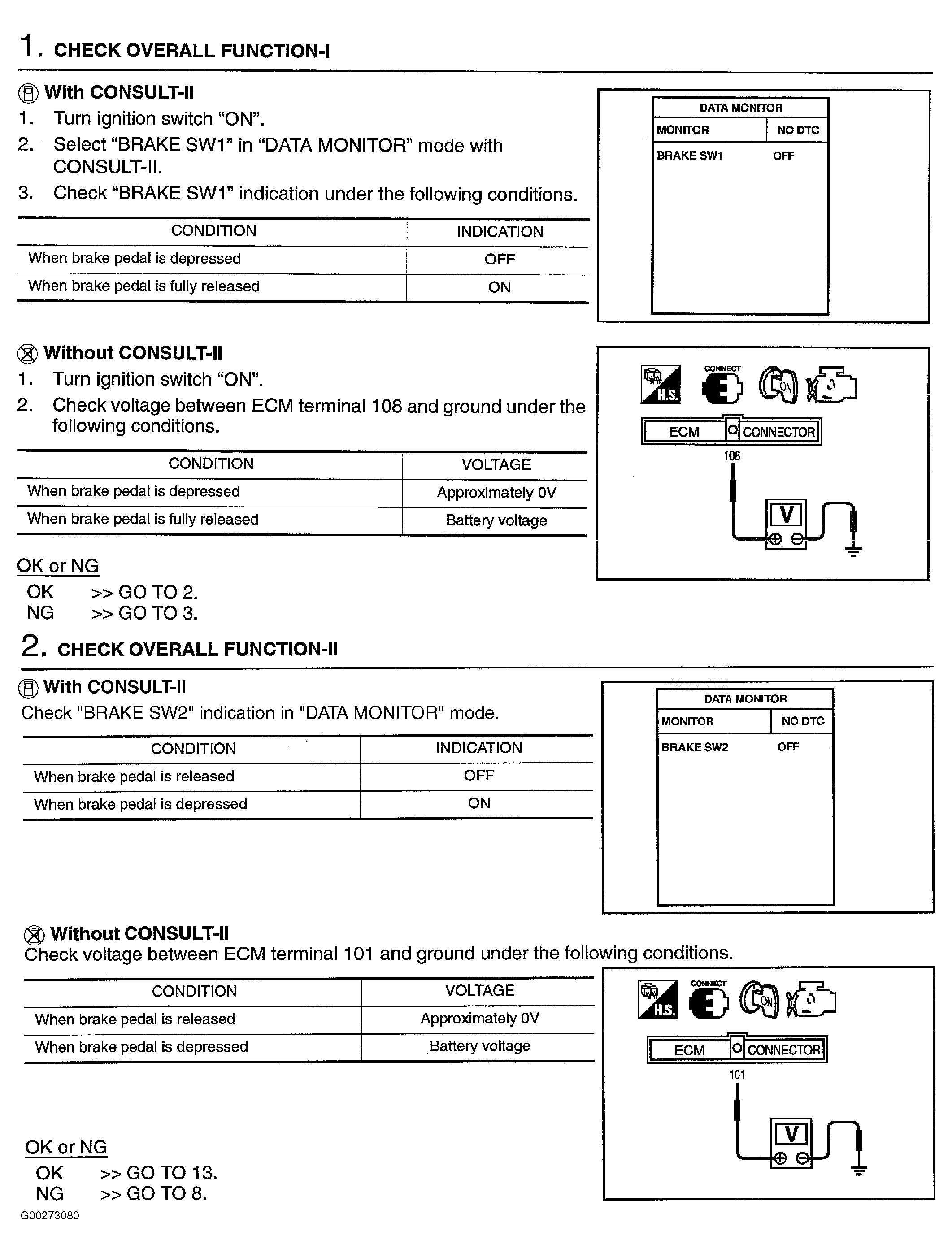

Fig 2: Diagnostic Procedure For ASCD Brake Switch (Step 1-2)

Courtesy of NISSAN MOTOR CO., U.S.A.

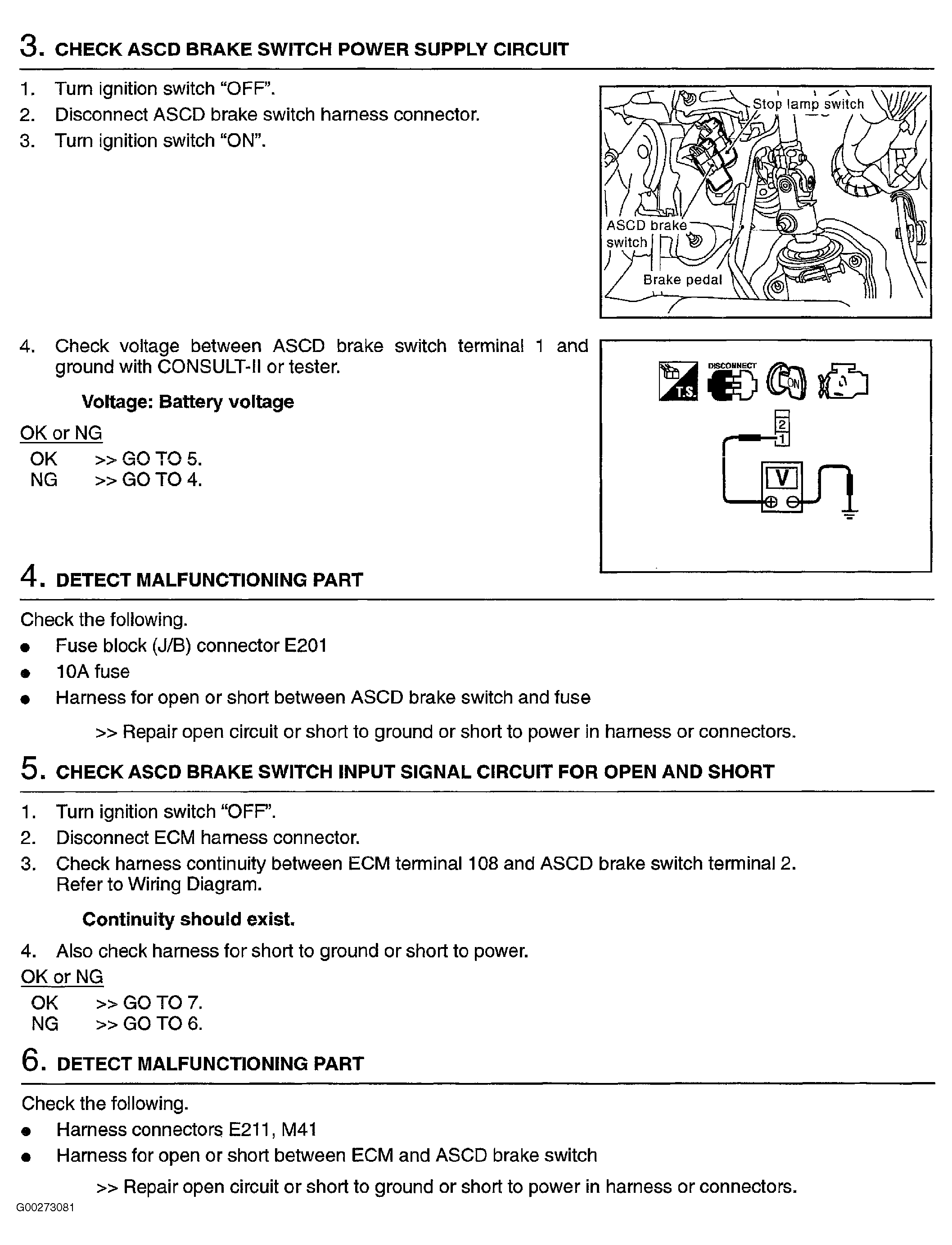

Fig 3: Diagnostic Procedure For ASCD Brake Switch (Step 3-6)

Courtesy of NISSAN MOTOR CO., U.S.A.

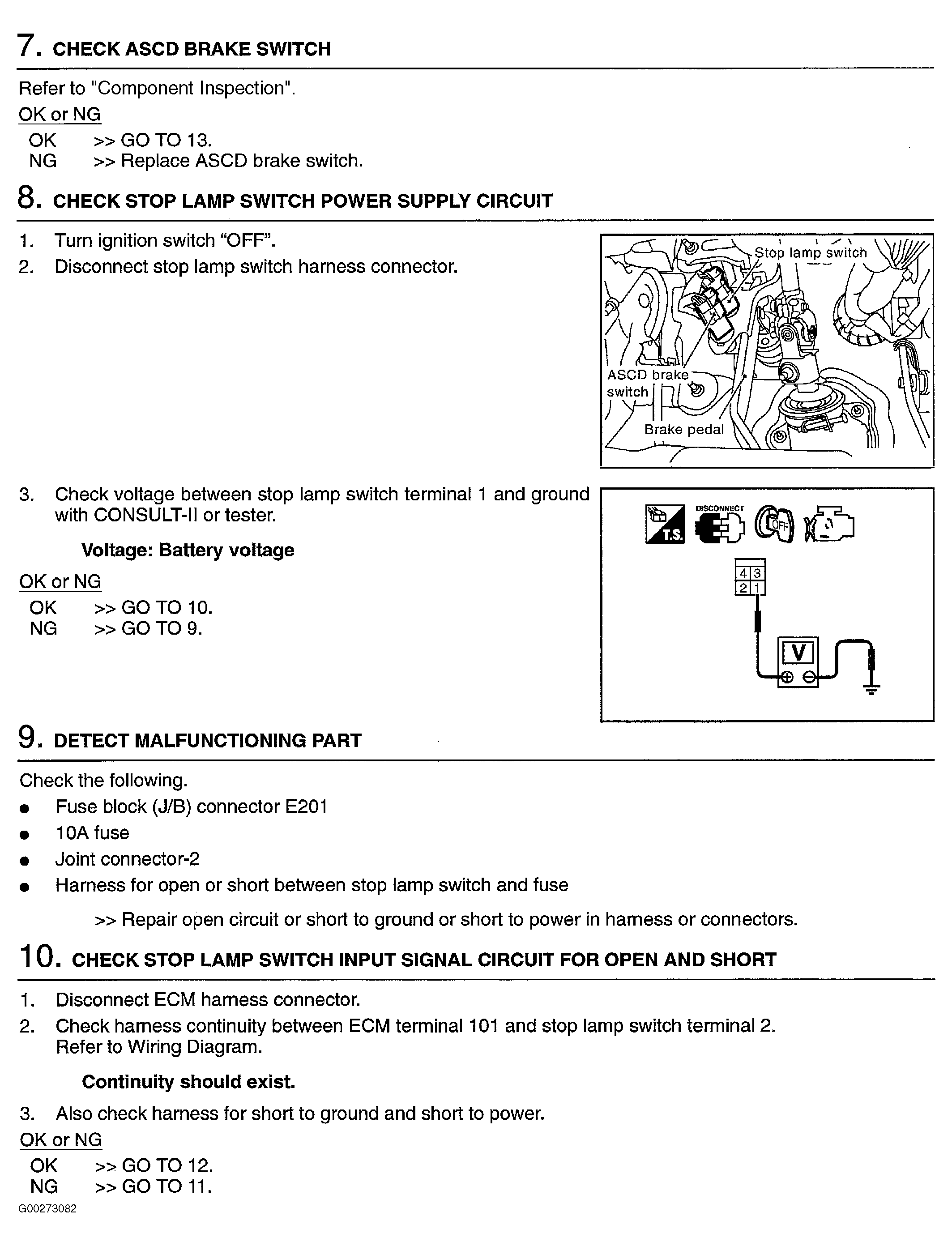

Fig 4: Diagnostic Procedure For ASCD Brake Switch (Step 7-10)

Courtesy of NISSAN MOTOR CO., U.S.A.

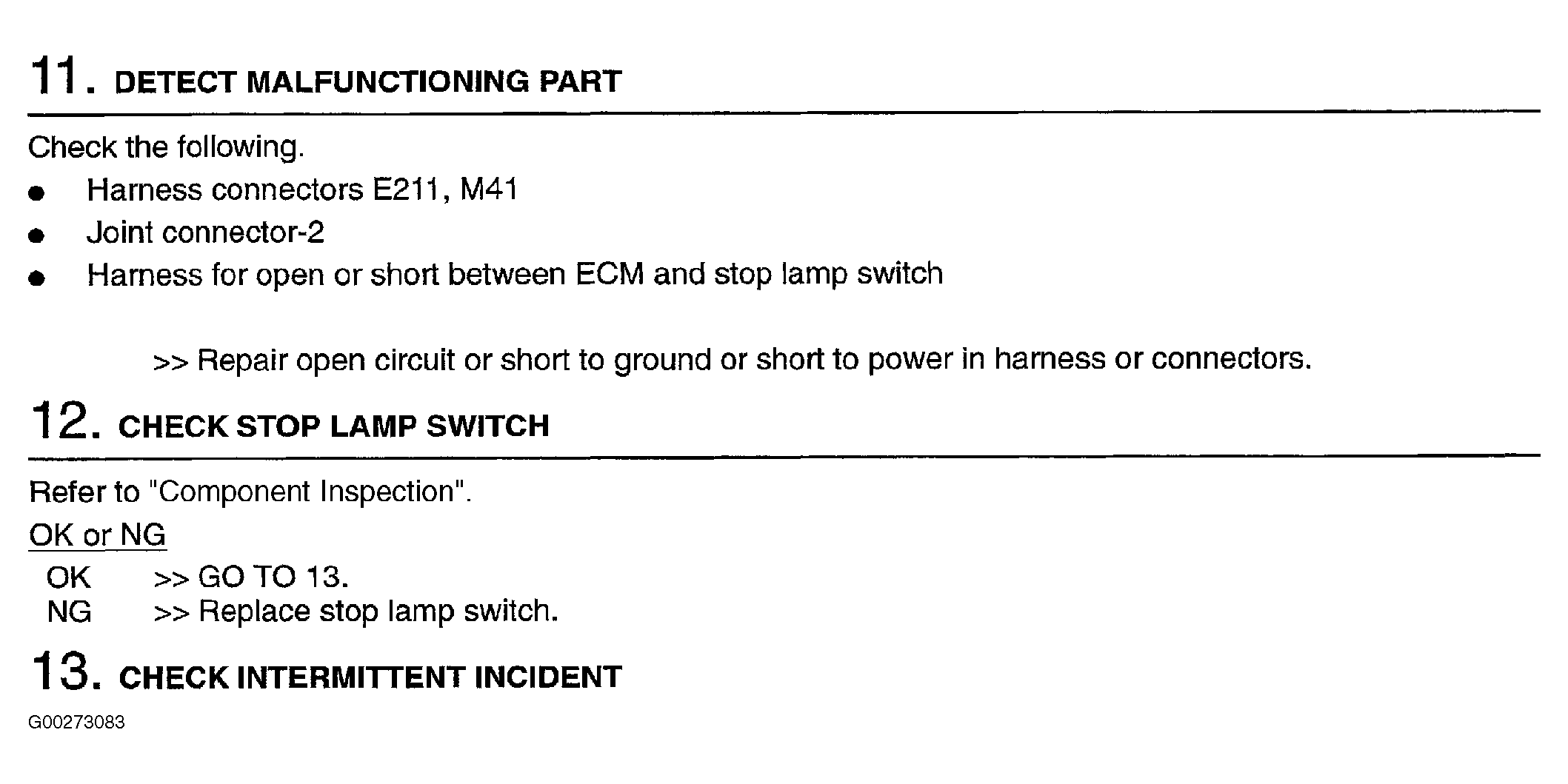

Fig 5: Diagnostic Procedure For ASCD Brake Switch (Step 11-13)

Courtesy of NISSAN MOTOR CO., U.S.A.
