Diagnostic Procedure

For wiring diagram, see Fig 1 . For diagnostic procedure, see Fig 2 and Fig 3 .

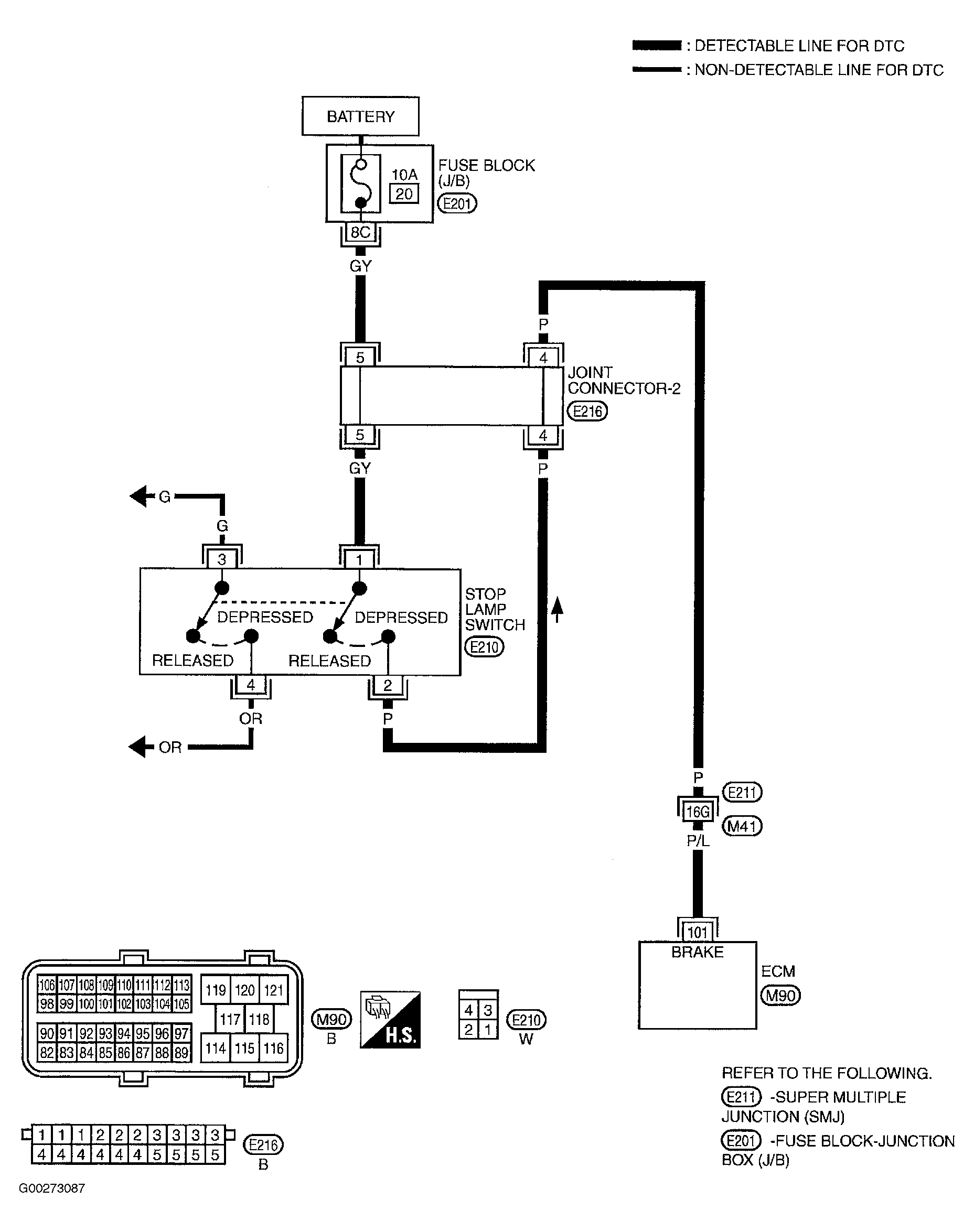

Fig 1: Brake Switch Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

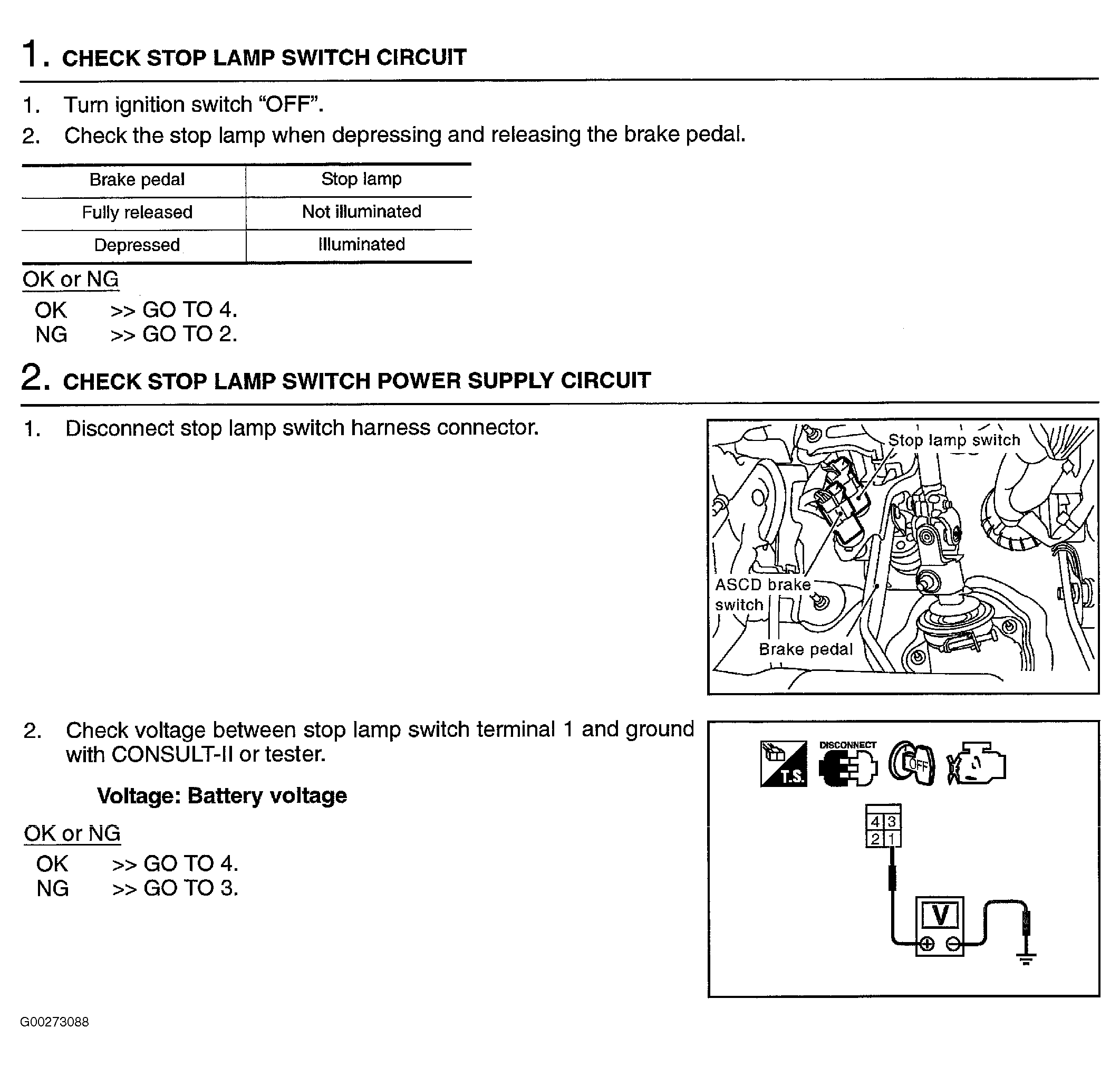

Fig 2: Diagnostic Procedure For Brake Switch (Step 1-2)

Courtesy of NISSAN MOTOR CO., U.S.A.

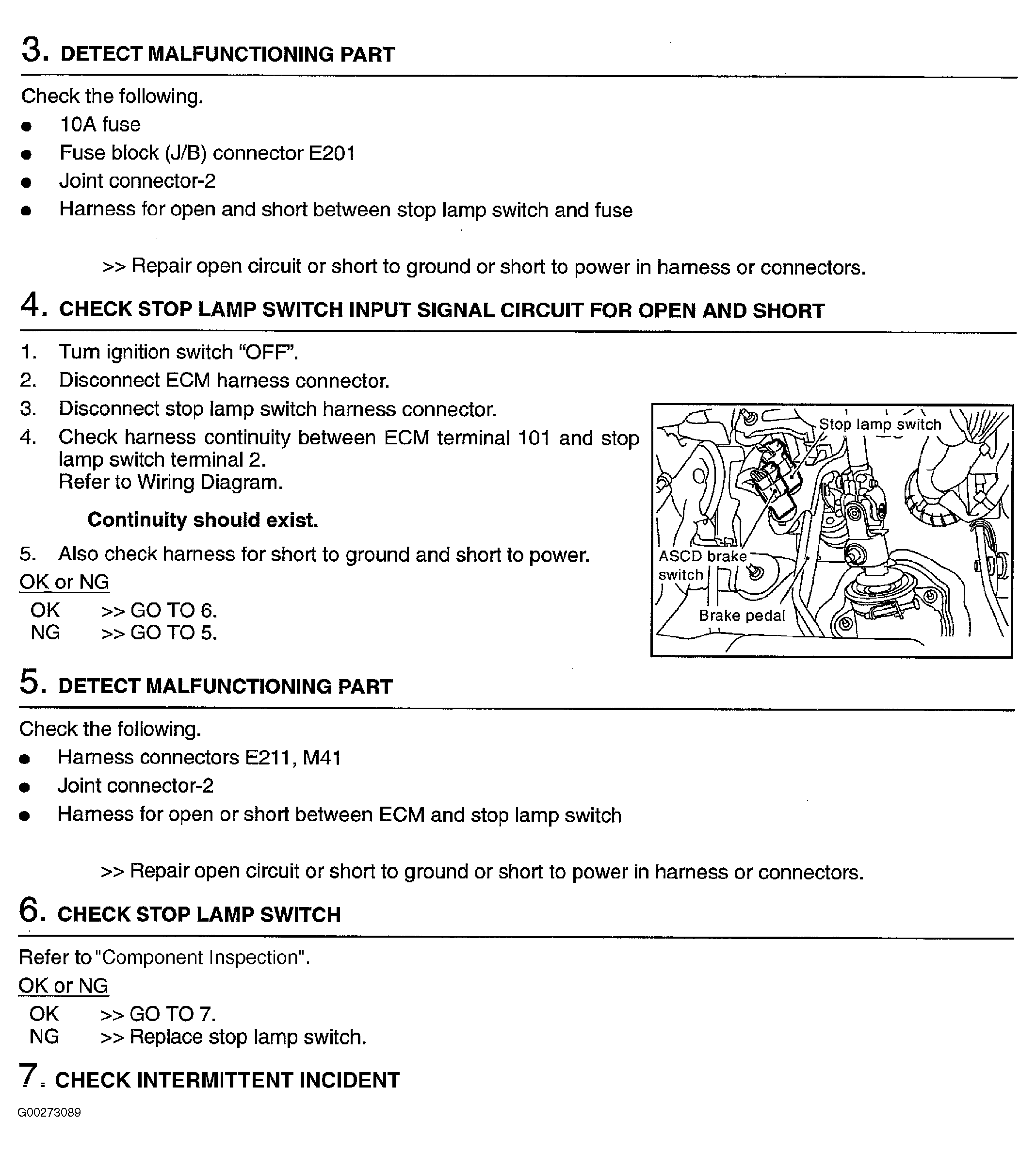

Fig 3: Diagnostic Procedure For Brake Switch (Step 3-7)

Courtesy of NISSAN MOTOR CO., U.S.A.
