Self-Diagnostic System
›
Engine Control Module Location
Engine Control Module Location
ECM is located behind instrument lower panel on passenger side. See
Fig 1
.

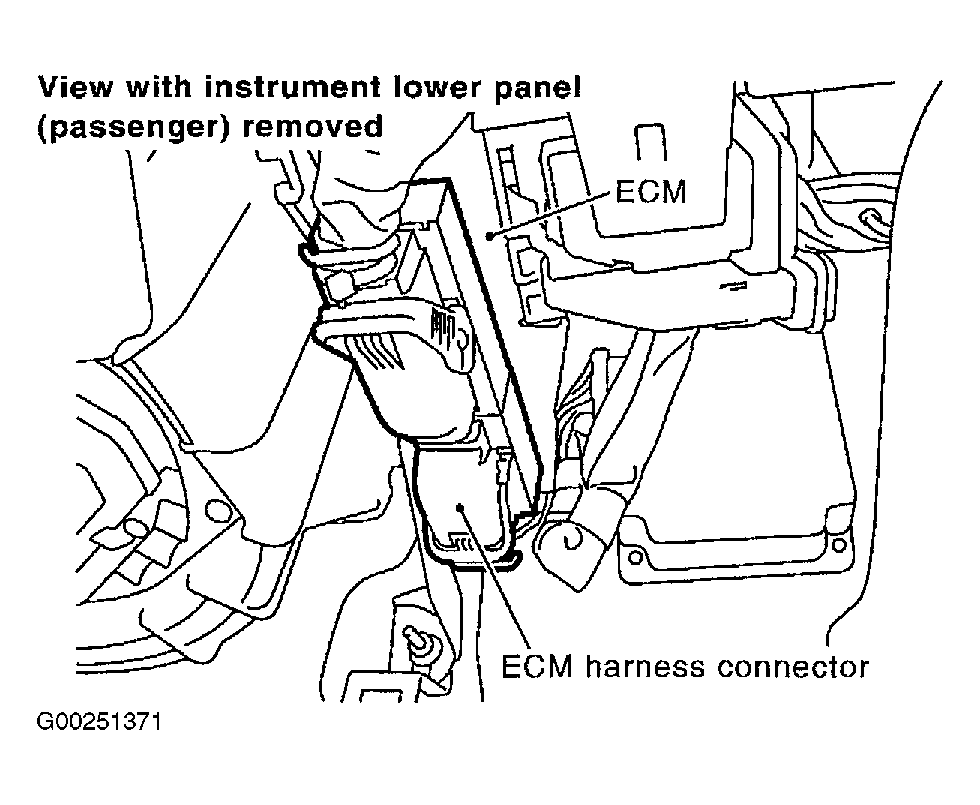

Fig 1: Locating ECM
Courtesy of NISSAN MOTOR CO., U.S.A.
