Separation Work

WARNING: This page is about a different car, the 2004 Infiniti FX35 and 2003 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Install engine slingers into front of RH bank cylinder head and rear of left bank cylinder head.
1. Slinger bolts:
  1. 28.0 N.m (2.9 kg-m, 21 ft-lb)

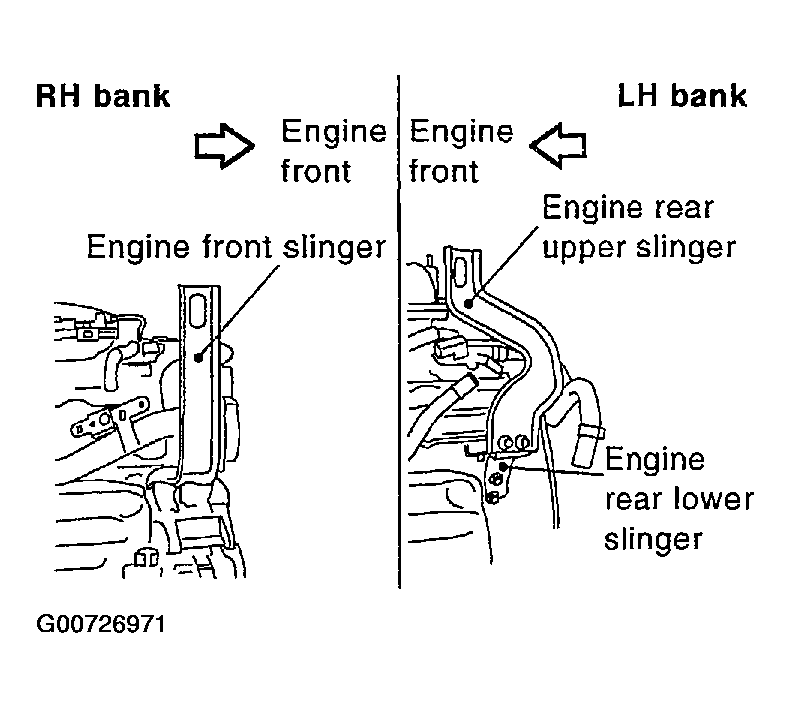

    Fig 1: Installing Engine Slingers
    Courtesy of NISSAN MOTOR CO., U.S.A.
Remove power steering oil pump from engine side. Refer to POWER STEERING OIL PUMP .
Remove engine mounting insulator RR under side nut with power tool.
Lift with hoist and separate engine and transmission assembly from suspension member.
CAUTION:
- Before and during this lifting, always check if any harnesses are left connected.
- Avoid damage to and oil/grease smearing or spills onto engine mounting insulator.
Remove front drive shaft LH and RH sides. Refer to REMOVAL, OVERHAUL & INSTALLATION .
Remove alternator. Refer to GENERATOR .
Remove starter motor. Refer to REMOVAL & INSTALLATION .
Remove front propeller shaft from front final drive assembly side. Refer to FRONT PROPELLER SHAFT .
Separate engine from transmission assembly. Refer to REMOVAL & INSTALLATION .
Remove engine mounting insulator FR and engine mounting bracket with power tool.
Remove front final drive assembly from oil pan (upper). Refer to FRONT FINAL DRIVE ASSEMBLY .
