Data Monitor Mode Reference Values

WARNING: This page is about a different car, the 2003 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

For throttle position sensor specification data, see Fig 1.

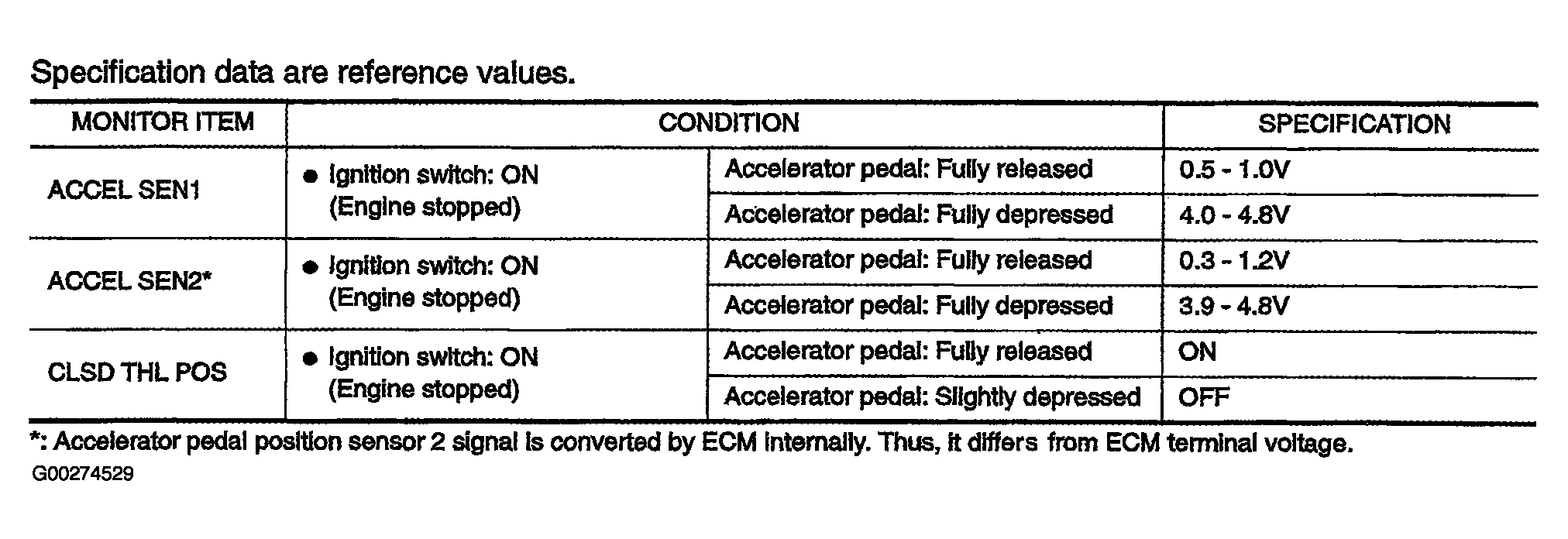

Fig 1: Identifying APP Sensor Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.
