Disassembly & Assembly For Combination Meter: Disassembly

WARNING: This page is about a different car, the 2003 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

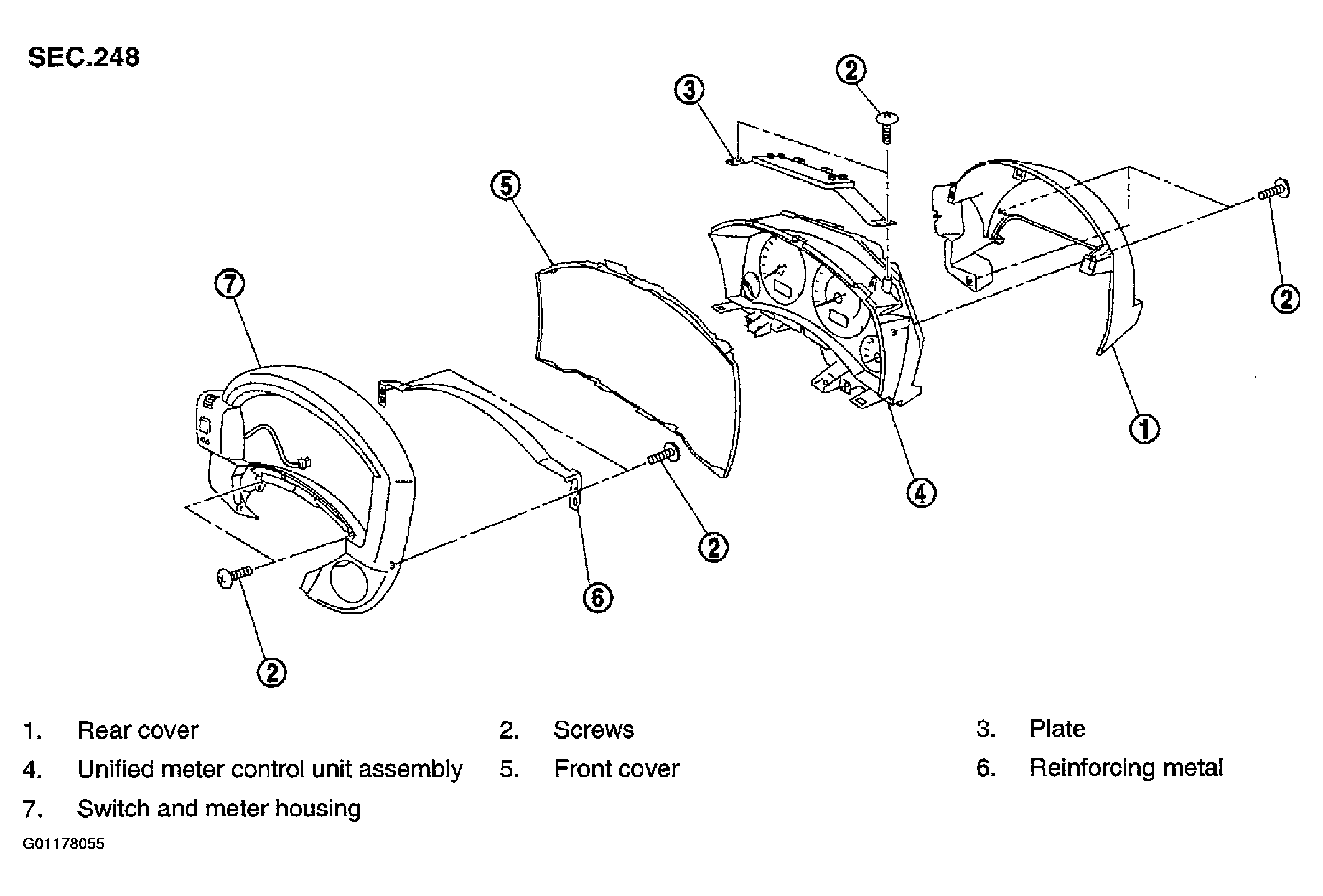

Fig 1: Exploded View Of Combination Meter
G01178055Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove screws (3) and remove rear cover.
  2. Disconnect odo/trip meter and illumination control switch connector.
    Fig 2: Removing Screws & Rear Cover
    G01178056Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (2) and remove switch and meter housing.

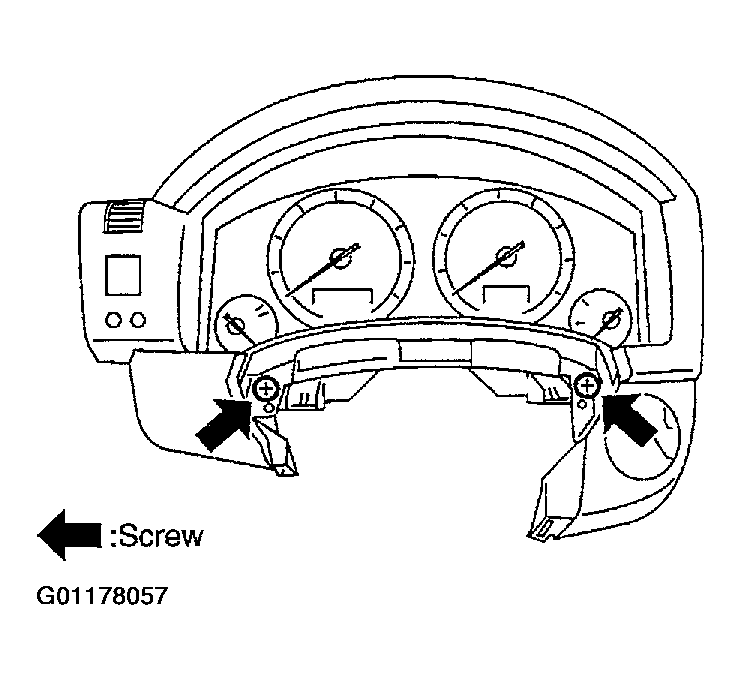

    Fig 3: Removing Screws, Switch & Meter Housing
    G01178057Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove screws (2) and remove reinforcing metal.

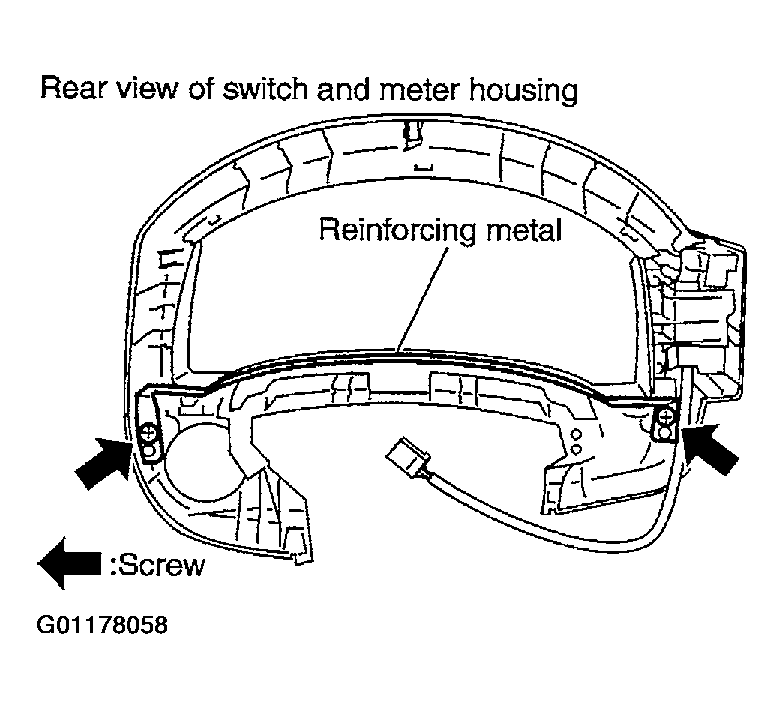

    Fig 4: Removing Screws & Reinforcing Metal
    G01178058Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Disengage tabs (8) to separate front cover.
  6. Remove screws (2) and remove prate.
