Can Communication Unit (With ICC)
›
System Diagram
System Diagram

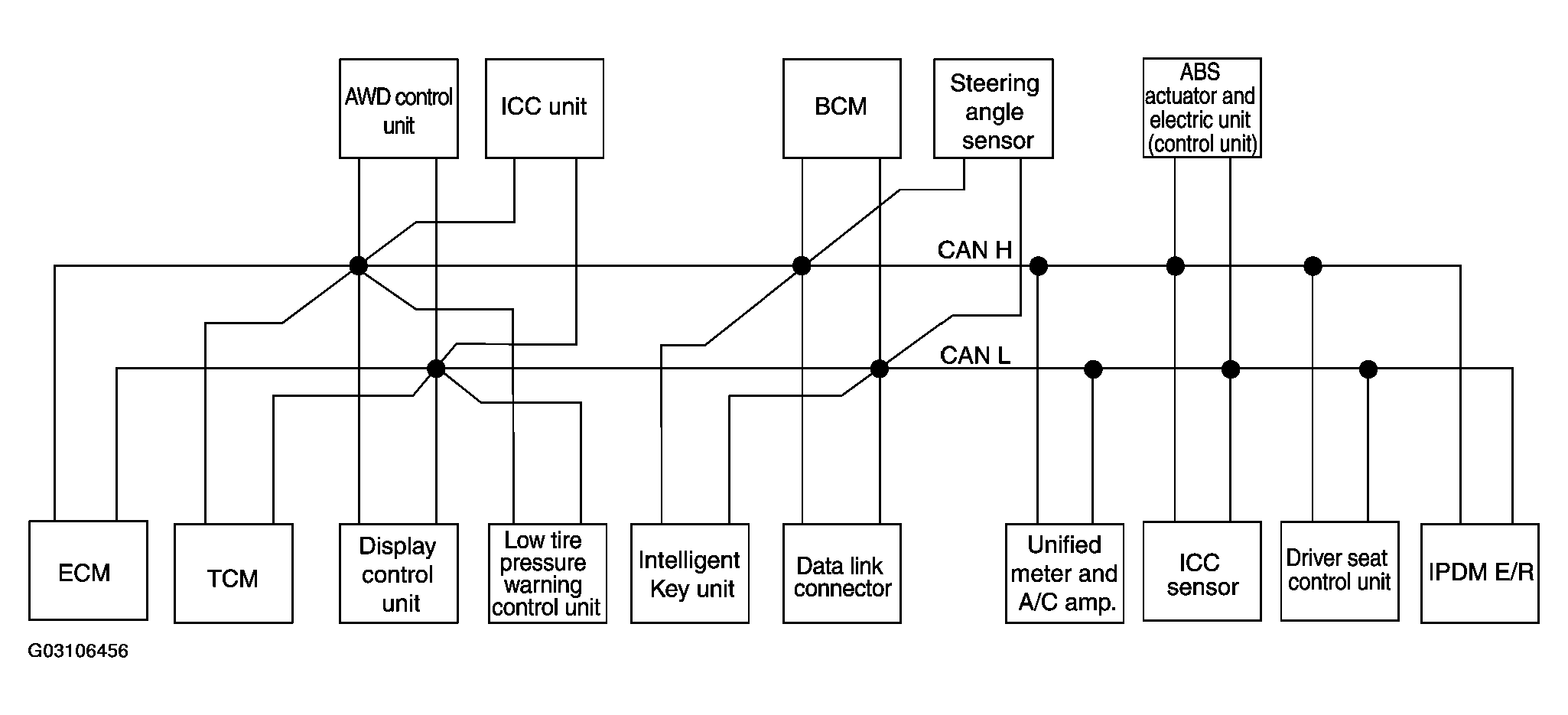

Fig 1: Identifying Can Communication Unit With ICC
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
