Home › Infiniti › 2003 › FX45 › Repair and Diagnosis › Transmission › Transfer Case › Transfer Assembly › Components

Transfer Assembly: Components

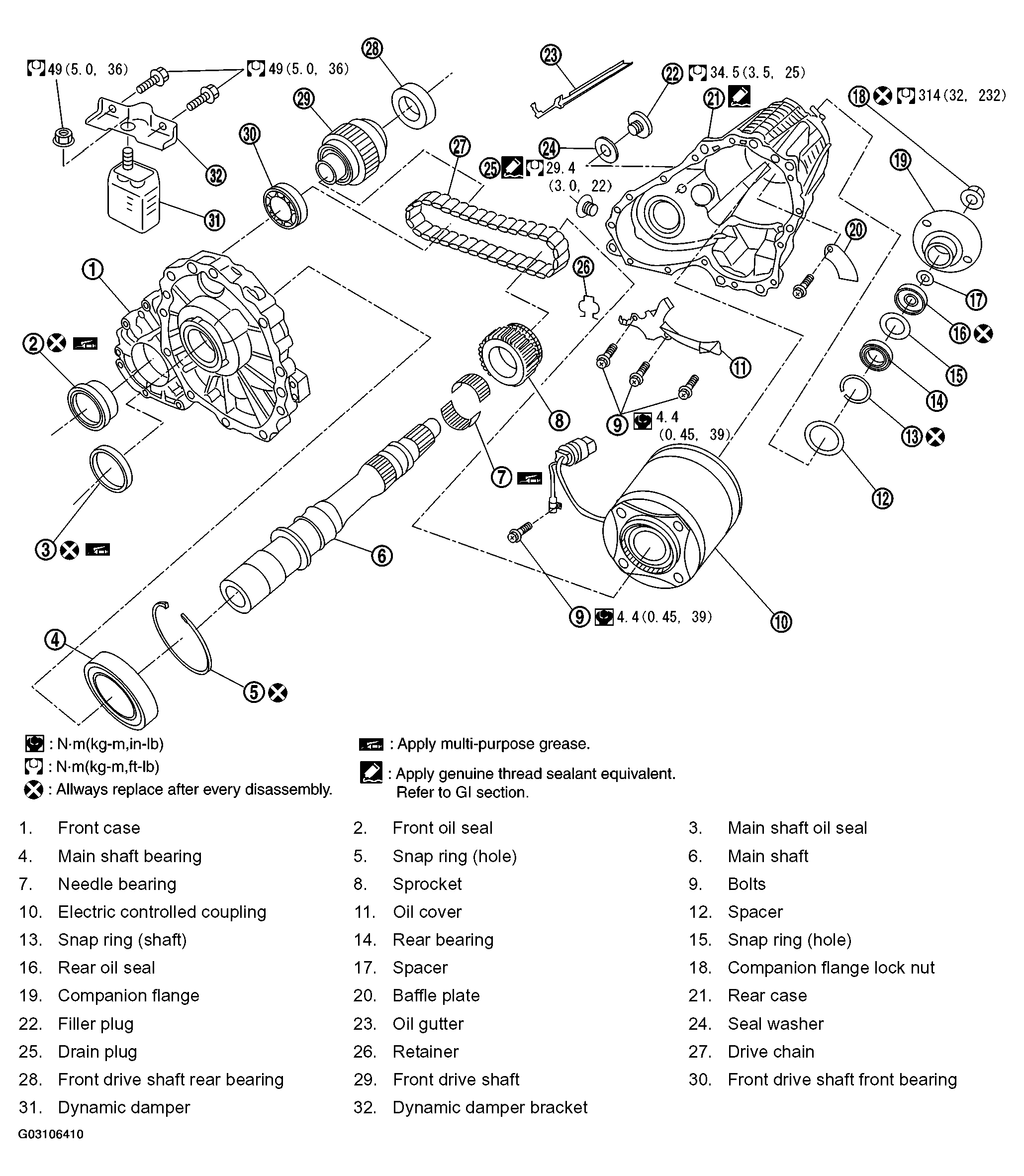

Fig 1: Exploded View Of Transfer Assembly Components
G03106410Courtesy of NISSAN MOTOR CO., U.S.A.
