Main Shaft and Electric Controlled Coupling

  1. Remove the snap ring from main shaft.
  2. Remove the spacer, electric controlled coupling, sprocket and needle bearing from main shaft.

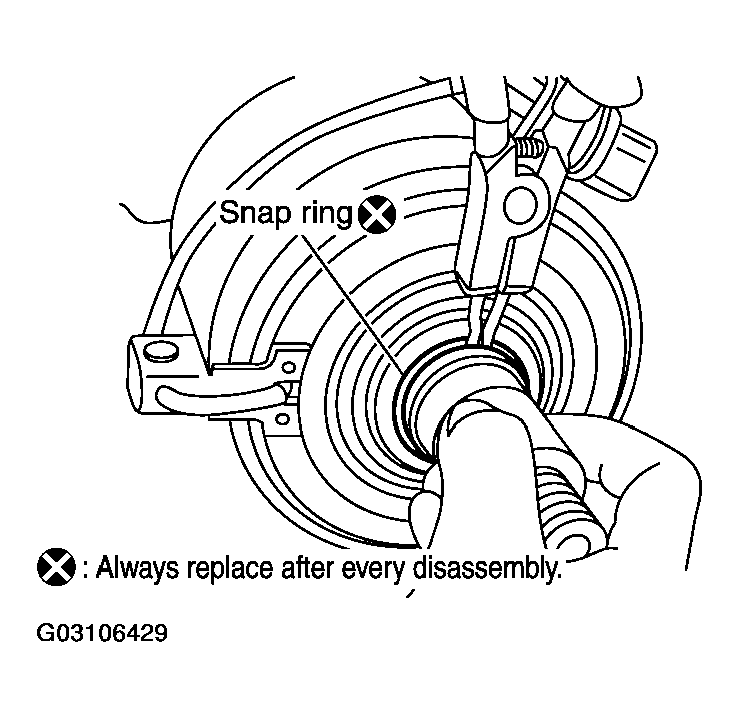

    Fig 1: Removing Snap Ring From Main Shaft
    G03106429Courtesy of NISSAN MOTOR CO., U.S.A.
