Engine Controls System - Component Testing - Coupe
›
ASCD Indicator
›
Wiring Diagram
ASCD Indicator: Wiring Diagram

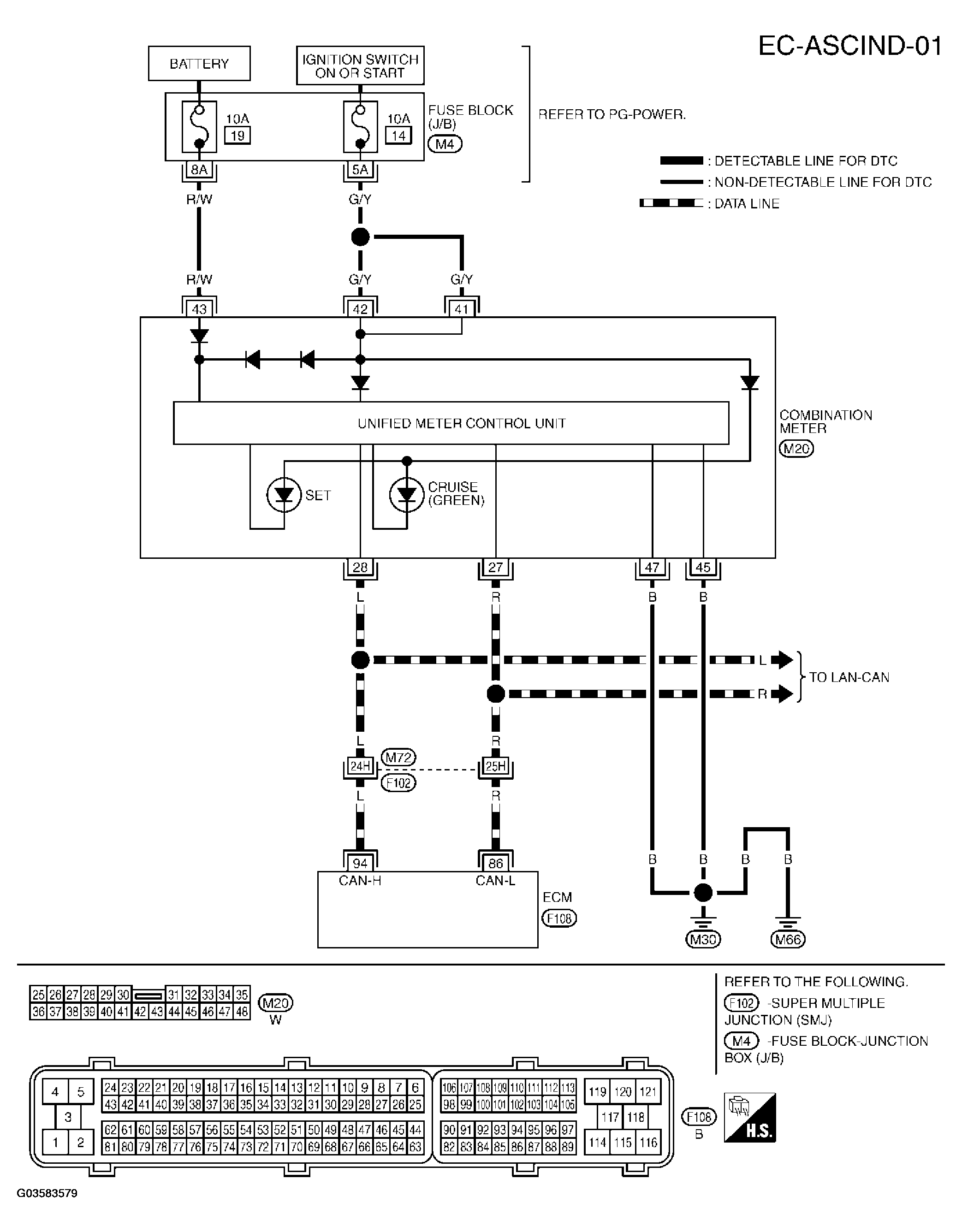

Fig 1: Wiring Diagram ASCD Indicator
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
