Data Monitor Mode
For DATA MONITOR mode descriptions, see
Fig 1
-
Fig 5
.

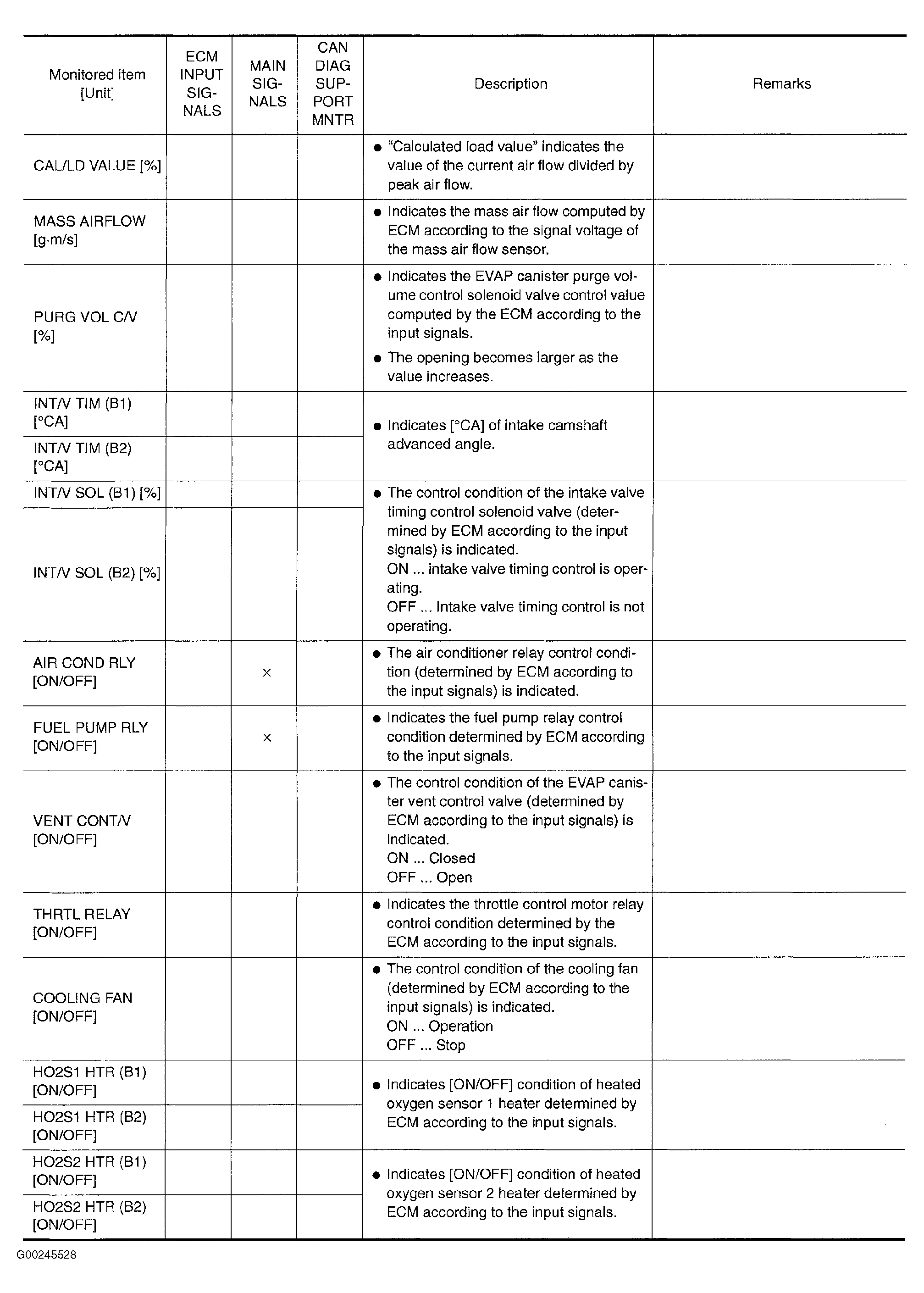

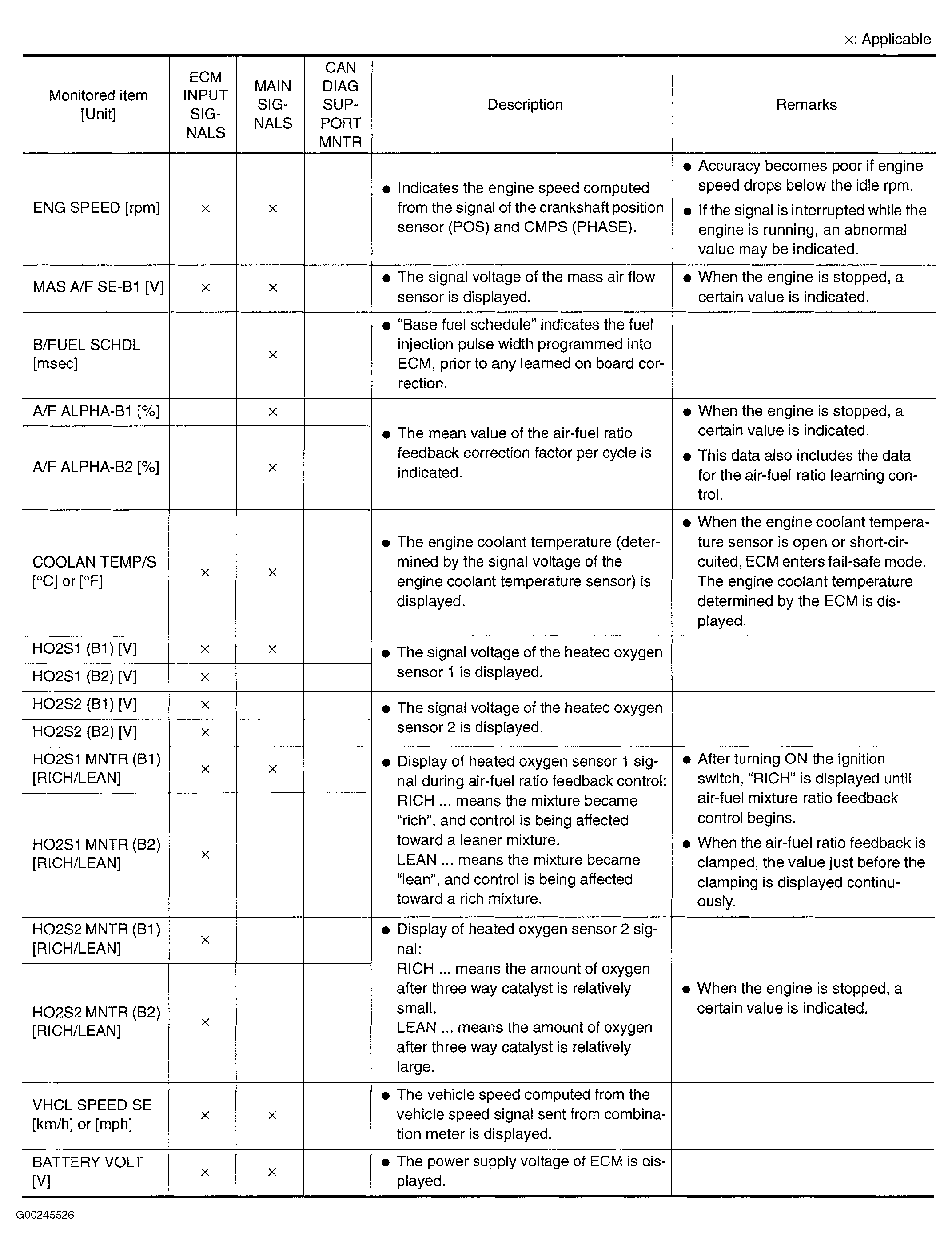

Fig 1: Data Monitor Mode Descriptions (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

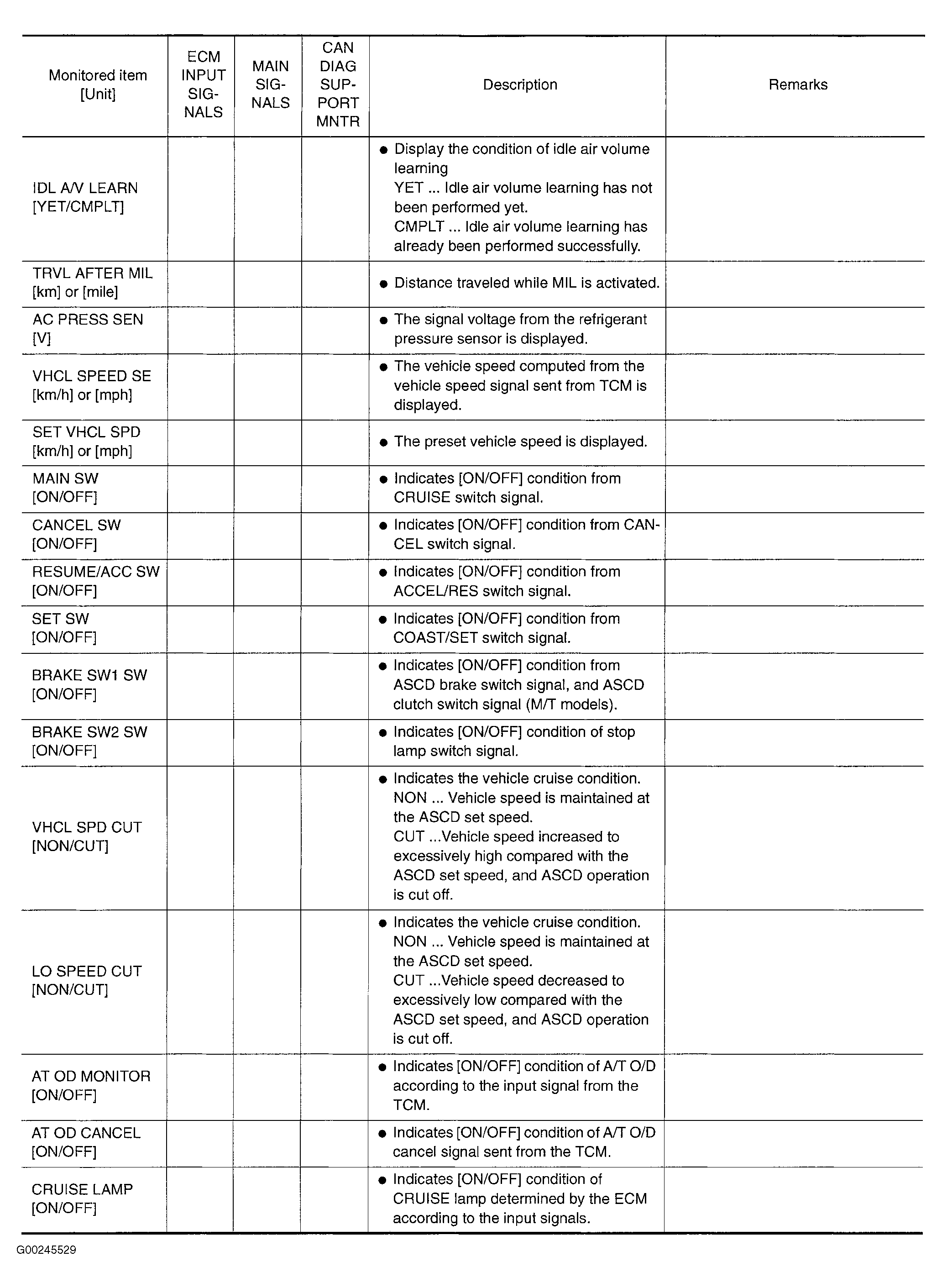

Fig 2: Data Monitor Mode Descriptions (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Data Monitor Mode Descriptions (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Data Monitor Mode Descriptions (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

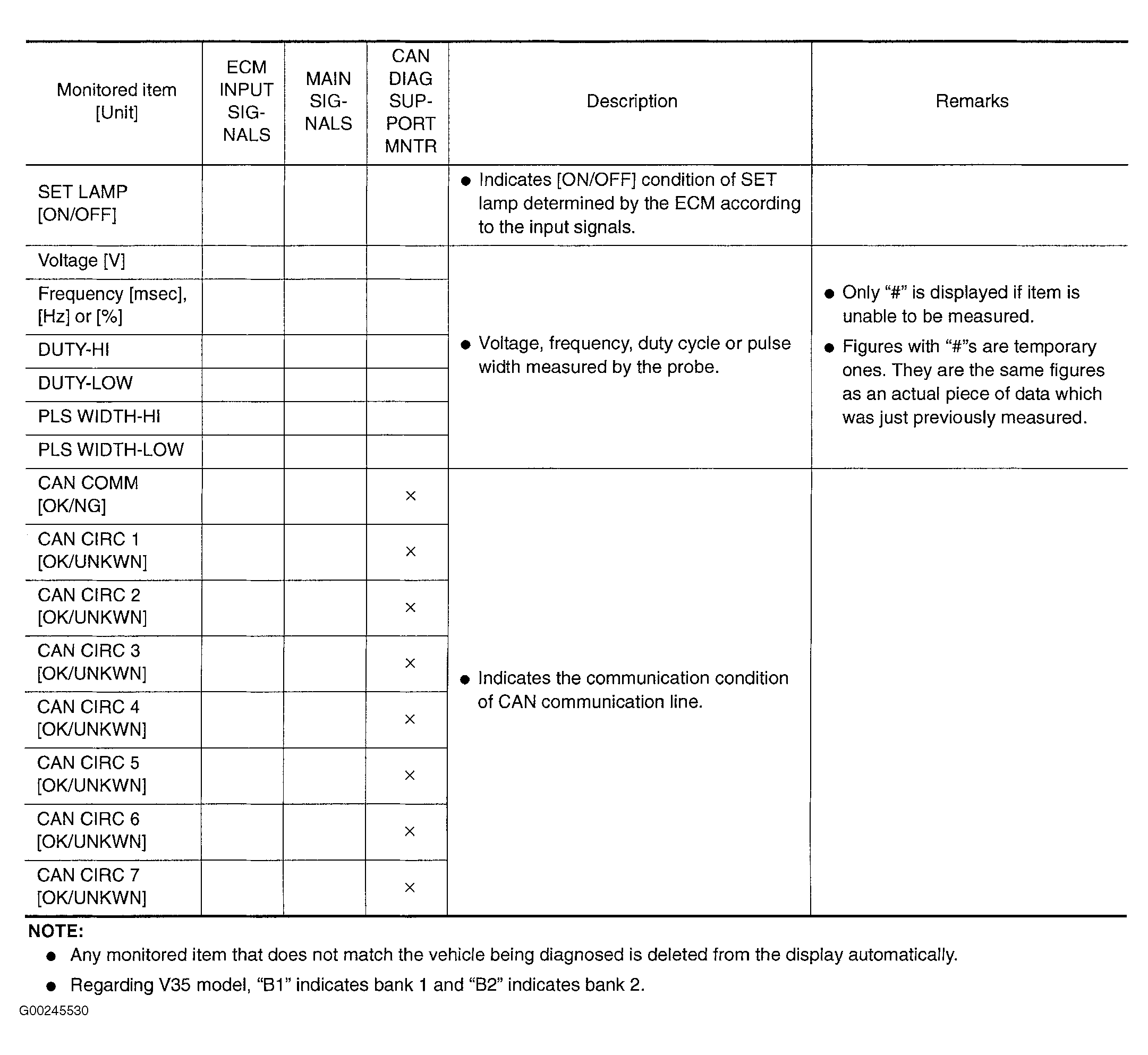

Fig 5: Data Monitor Mode Descriptions (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
