"Multi Remote ENT"

  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

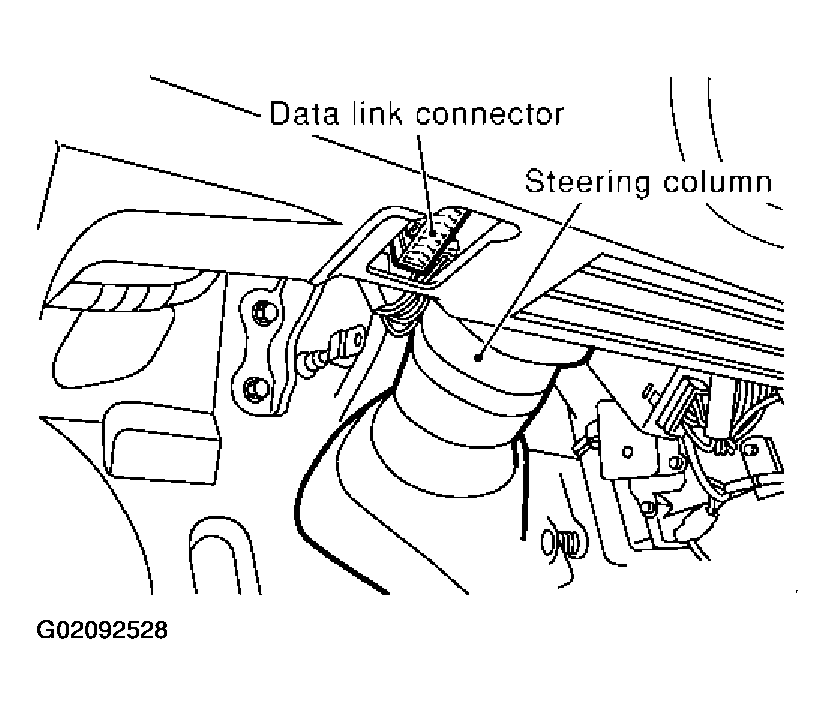

    Fig 1: Locating Data Link Connector
    G02092528Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: CONSULT-II Display-Touch "(START NISSAN BASED VHCL)"
    G02092529Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "SMART ENTRANCE". If "SMART ENTRANCE" is not indicated, go to GENERAL INFORMATION article.
    Fig 3: CONSULT-II Display-Touch "SMART ENTRANCE"
    G02092530Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "MULTI REMOTE ENT".
    Fig 4: CONSULT-II Display-Touch "MULTI REMOTE ENT"
    G02092531Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Select diagnosis mode. "DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.
    Fig 5: CONSULT-II Display-Touch Select Diagnosis Mode
    G02092532Courtesy of NISSAN MOTOR CO., U.S.A.
