Symptom Chart

NOTE:

Always check keyfob battery before replacing keyfob.
The panic alarm operation and trunk lid opener operation of keyfob system do not activate with the ignition key inserted in the ignition key cylinder.

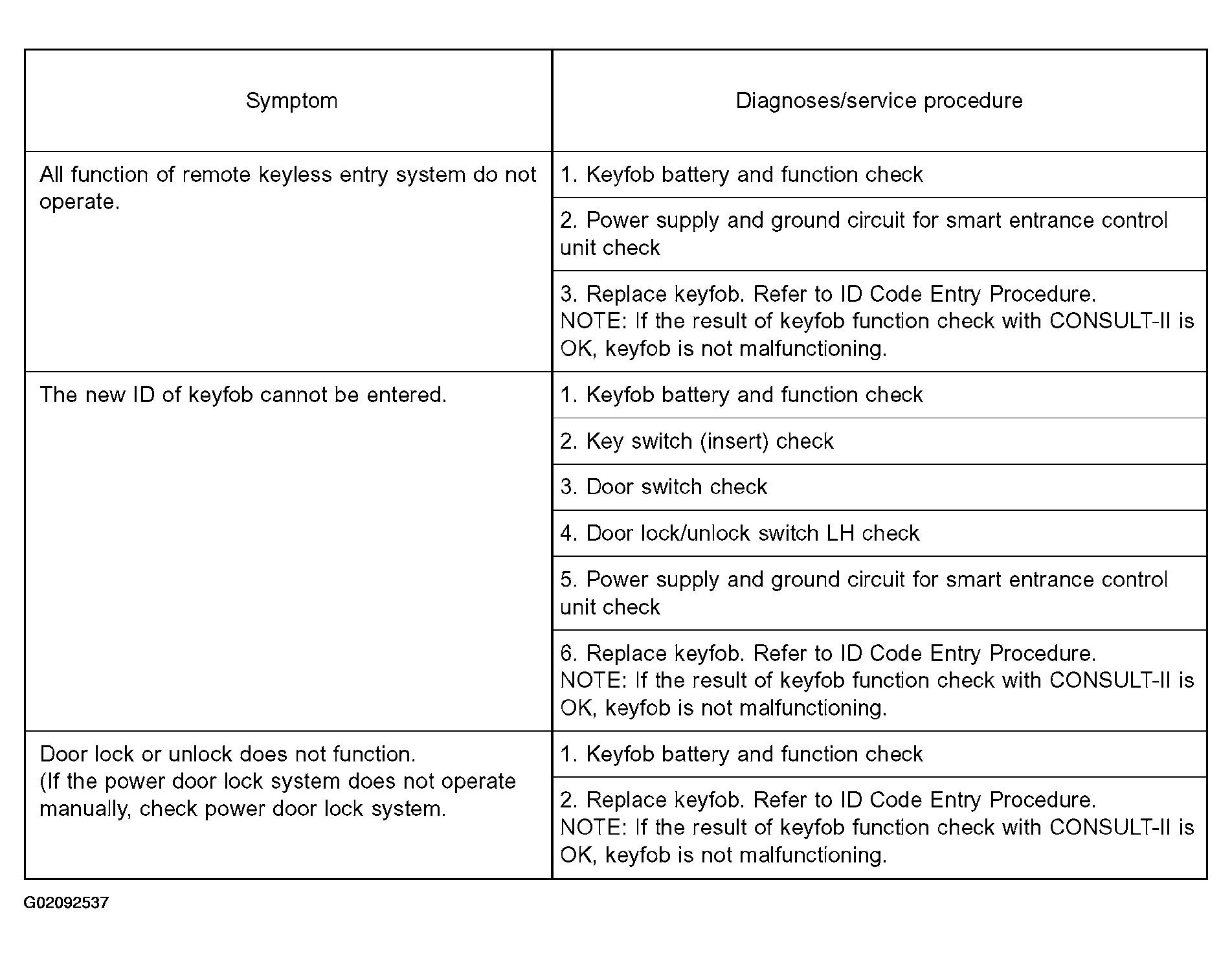

Fig 1: Remote Keyless Entry Problem Symptom Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

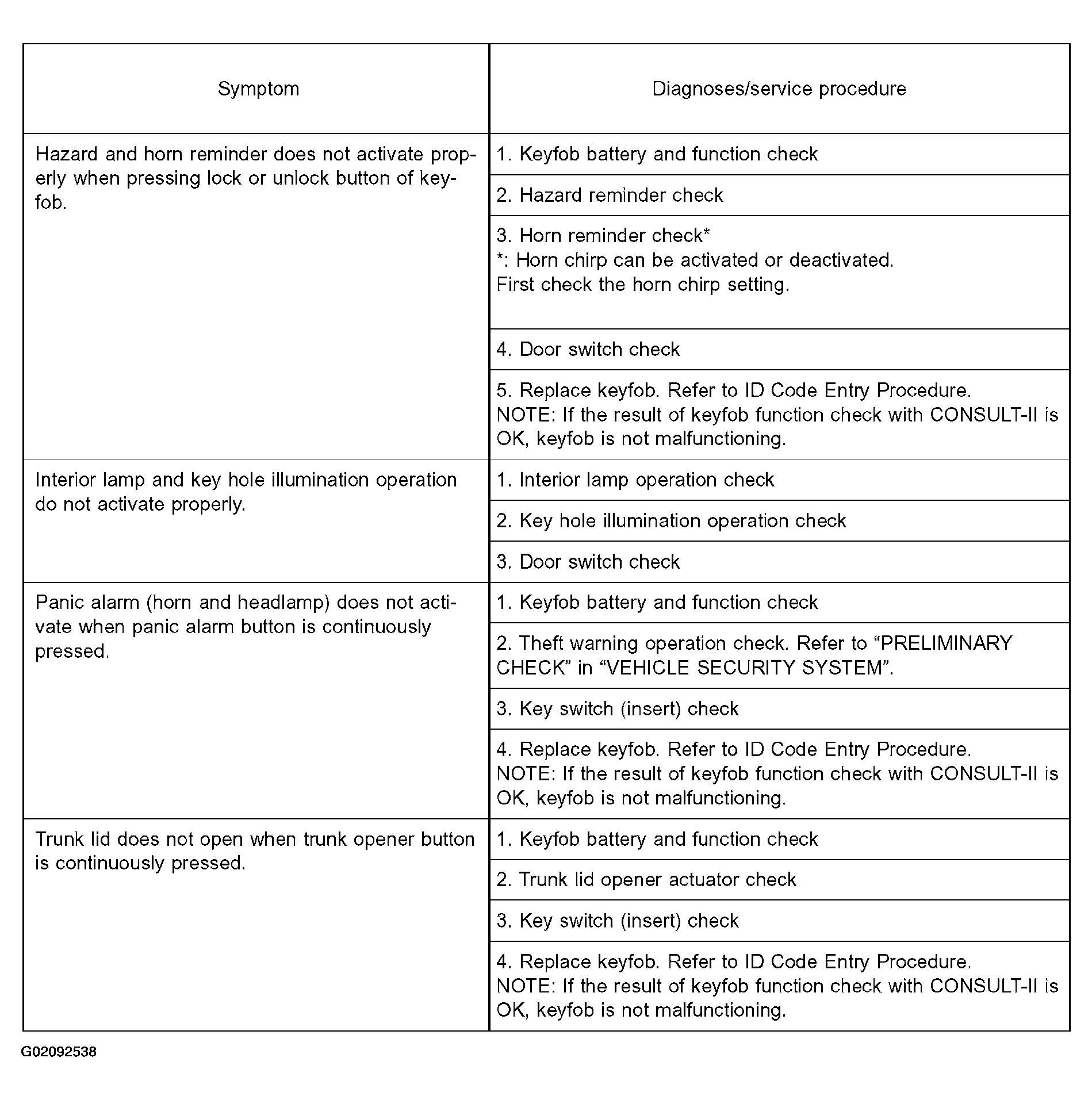

Fig 2: Remote Keyless Entry Problem Symptom Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
