"Retained PWR"

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

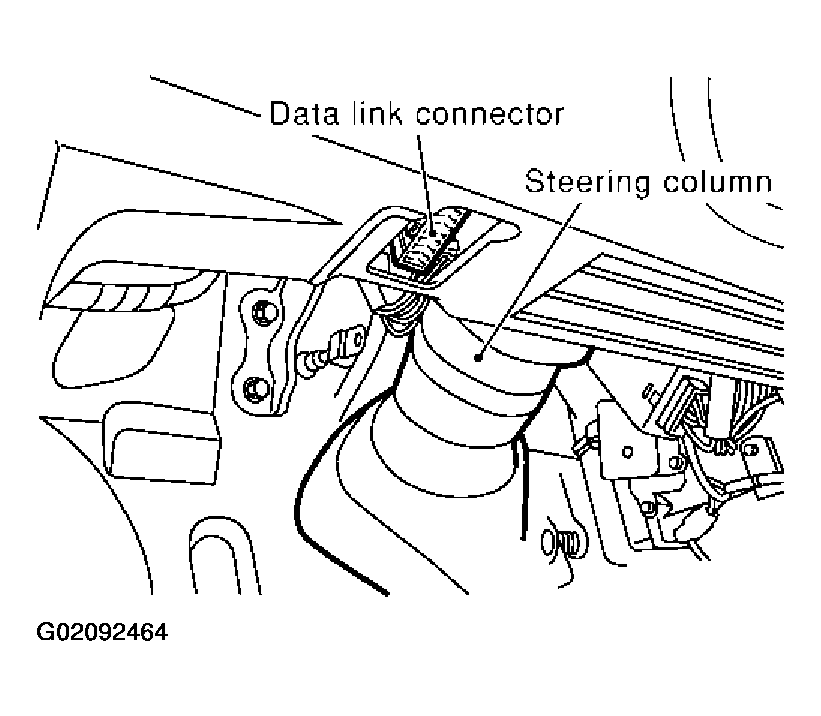

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Display-Touch "(START NISSAN BASED VHCL)"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SMART ENTRANCE".
If "SMART ENTRANCE" is not indicated, go to CONSULT-II CHECKING SYSTEM in GENERAL INFORMATION article.

Fig 3: CONSULT-II Display-Touch "SMART ENTRANCE"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

Fig 4: CONSULT-II Display-Touch "RETAINED PWR"
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

Fig 5: CONSULT-II Display-Selecting Diagnosis Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
