Power Window: Schematic

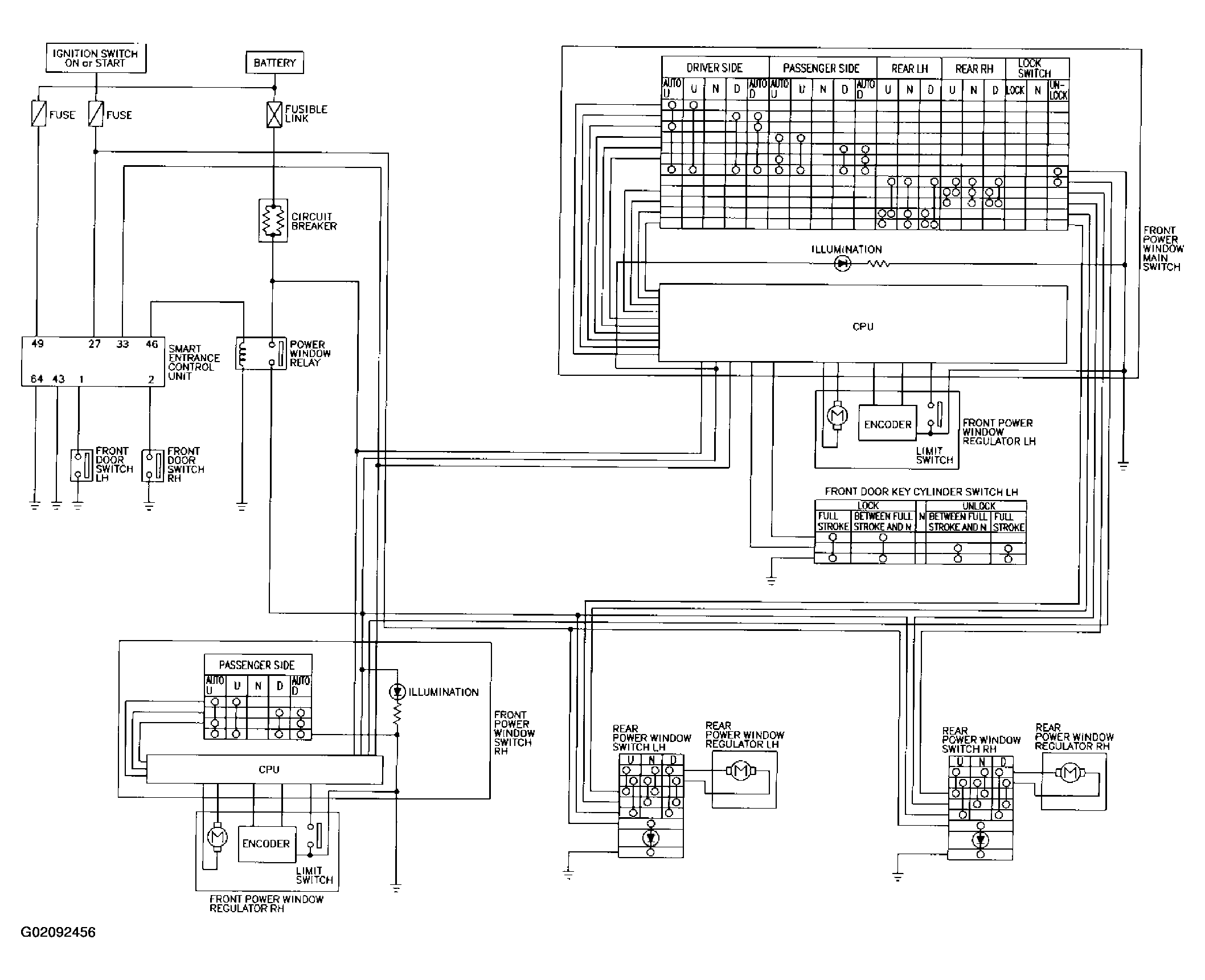

Fig 1: Power Window Schematic Diagram
G02092456Courtesy of NISSAN MOTOR CO., U.S.A.
