Power Window
›
Trouble Diagnoses
›
Notes
Trouble Diagnoses: Notes

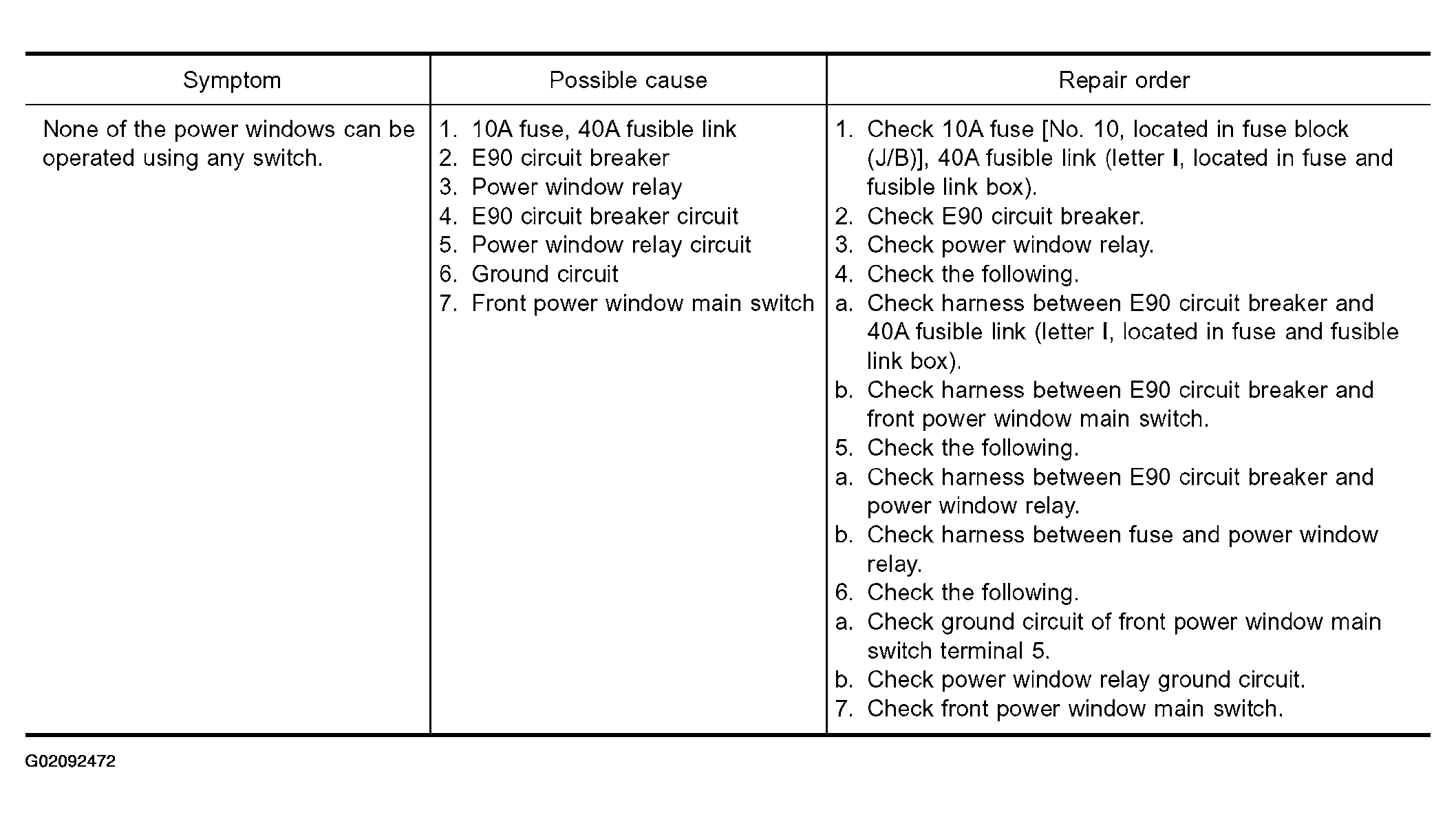

Fig 1: Power Window Trouble Diagnose Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

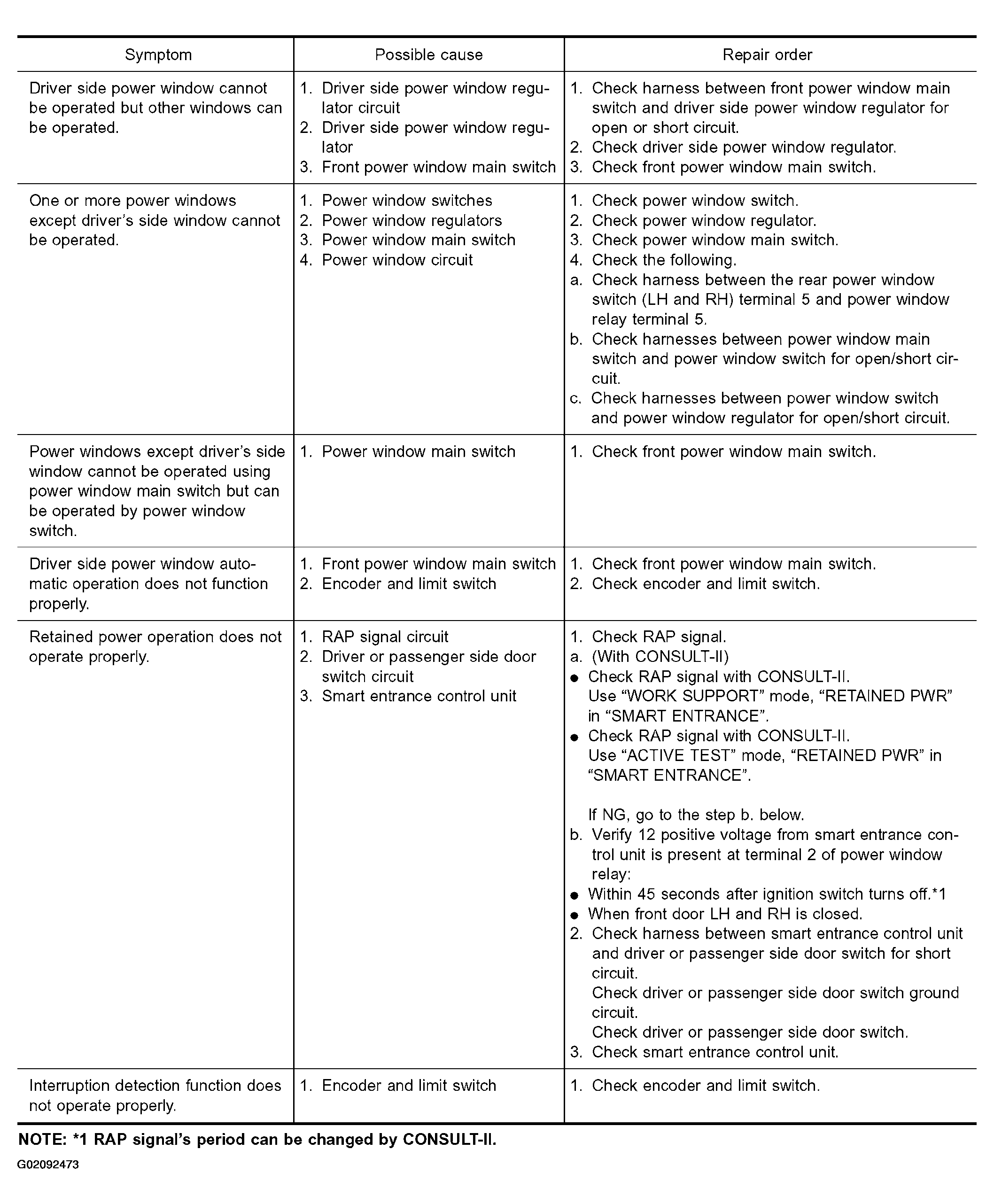

Fig 2: Power Window Trouble Diagnose Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
