General Information
›
System Diagram
System Diagram

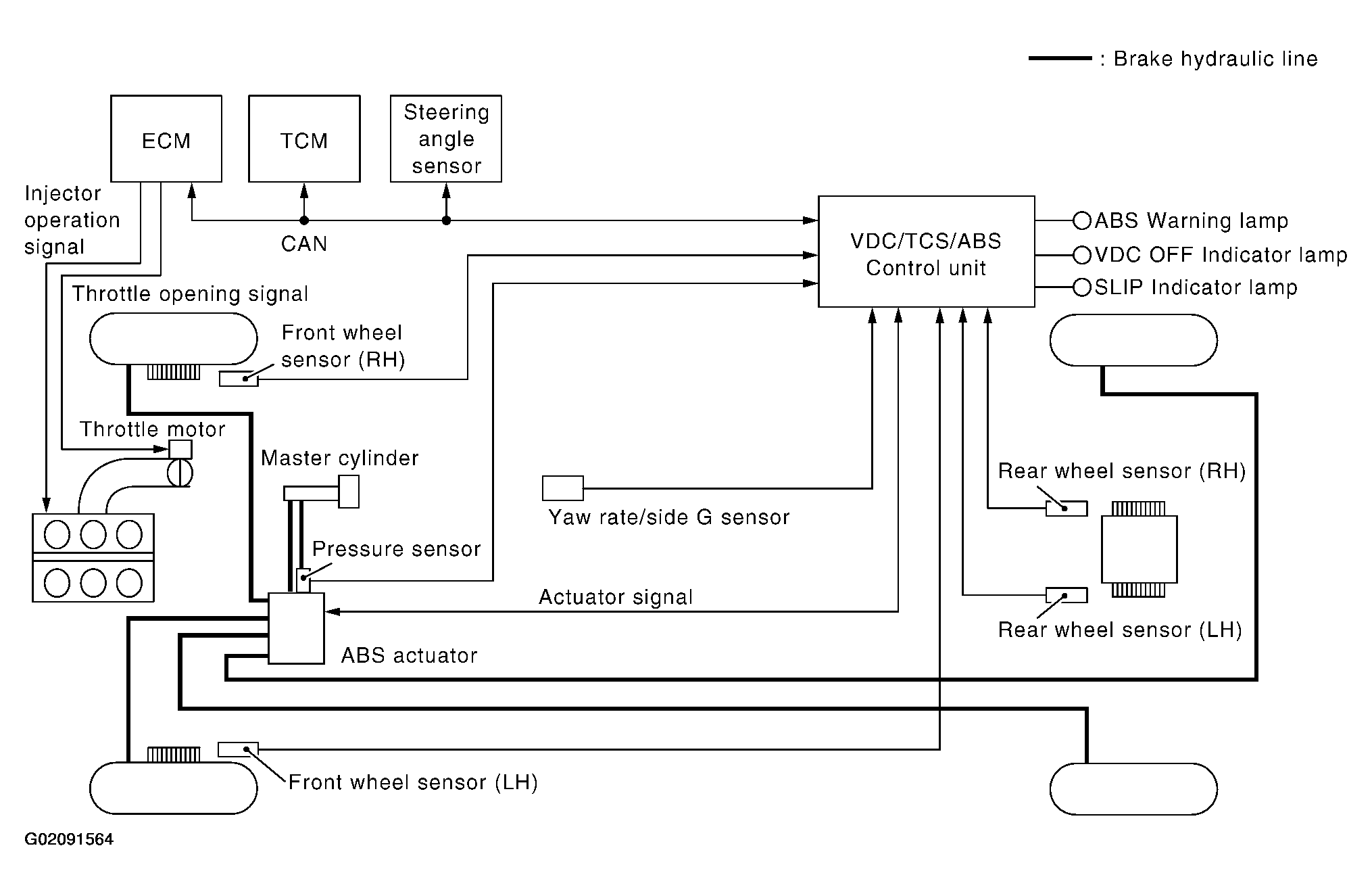

Fig 1: Displaying VDC System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
