Diagnostic Procedure 3

For diagnostic procedure 3, see Fig 1 .

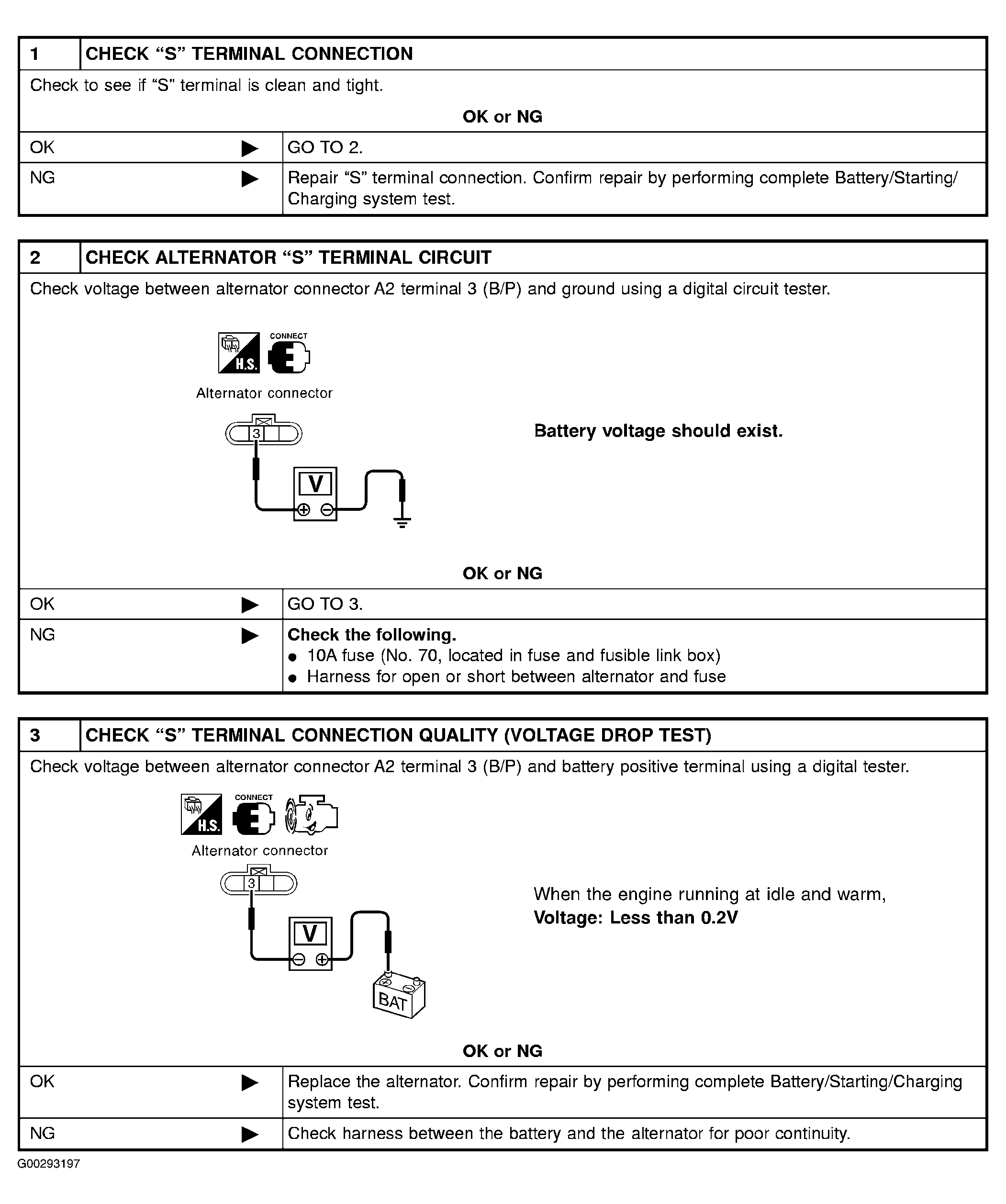

Fig 1: Diagnostic Procedure 3

G00293197

Courtesy of NISSAN MOTOR CO., U.S.A.
