Board Computer
›
Trouble Diagnoses
›
Diagnoses Procedure
Diagnoses Procedure

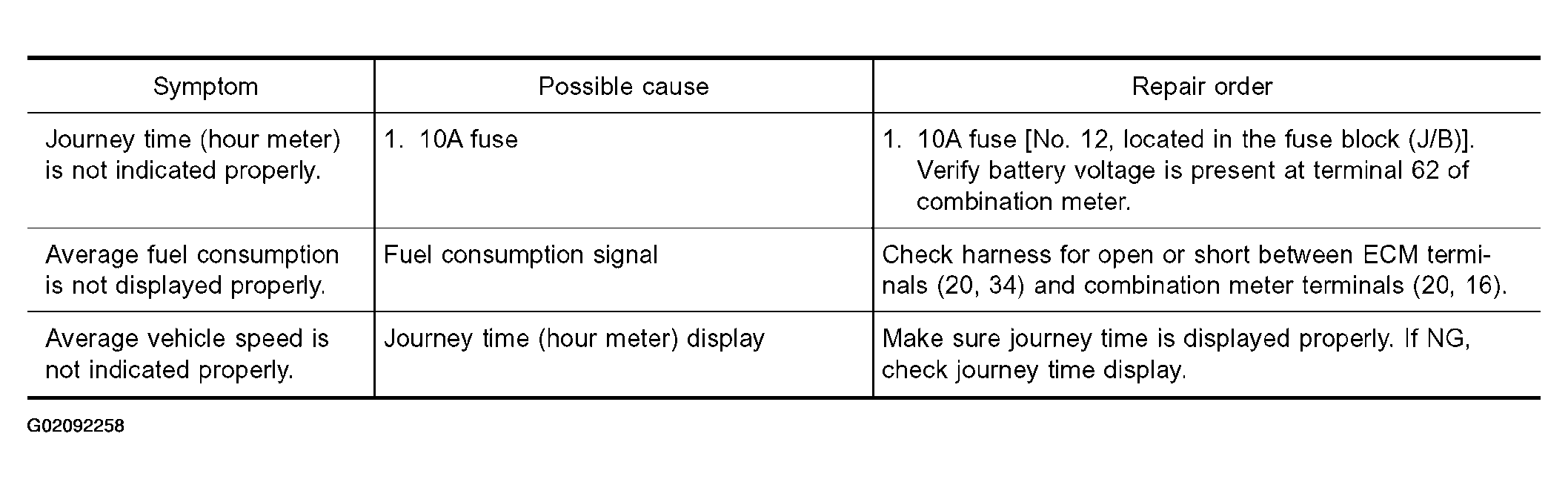

Fig 1: Diagnosis Procedure Symptom Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

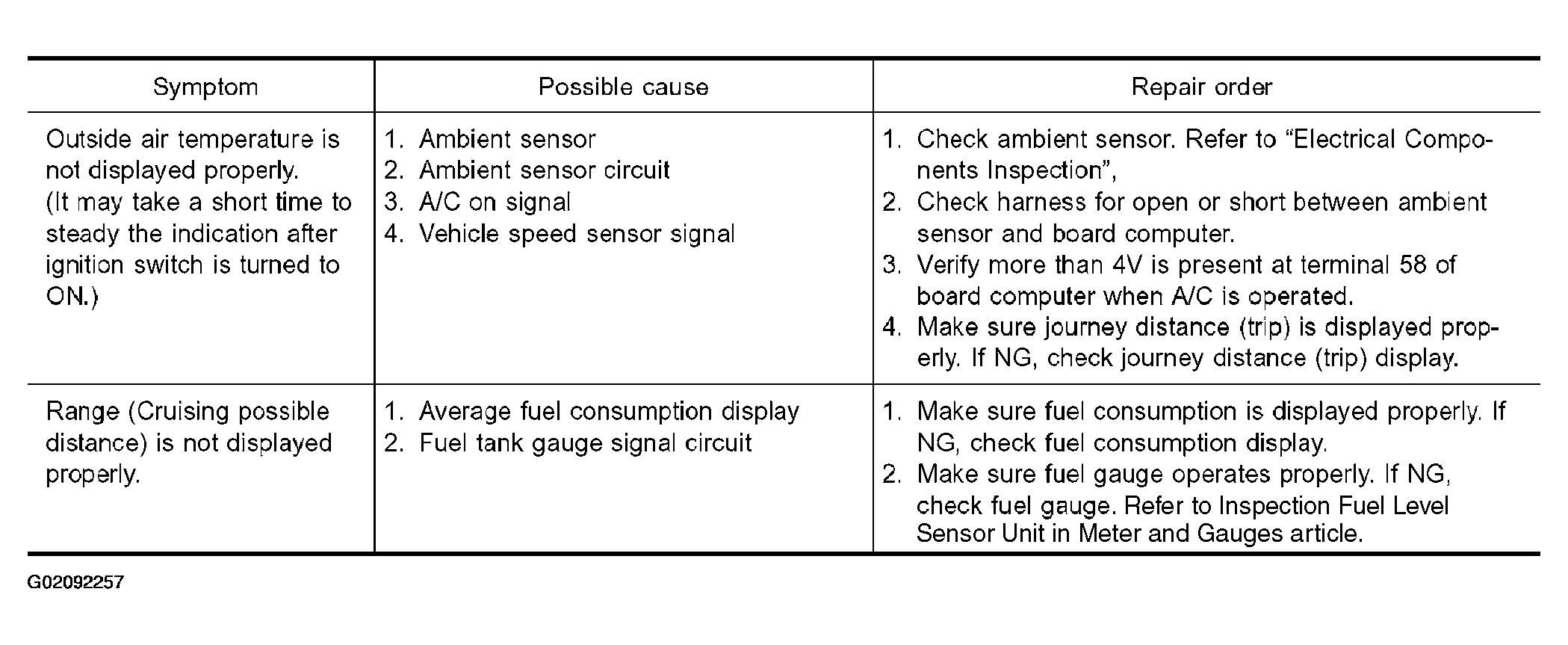

Fig 2: Diagnosis Procedure Symptom Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
