Fuel Rails & Injectors: Notes
WARNING:
Do not smoke while working on the fuel system. Keep open flames and sparks away from the work area. Be sure to work in a well ventilated area. Ensure that there are no open flames in your work area.
NOTE:

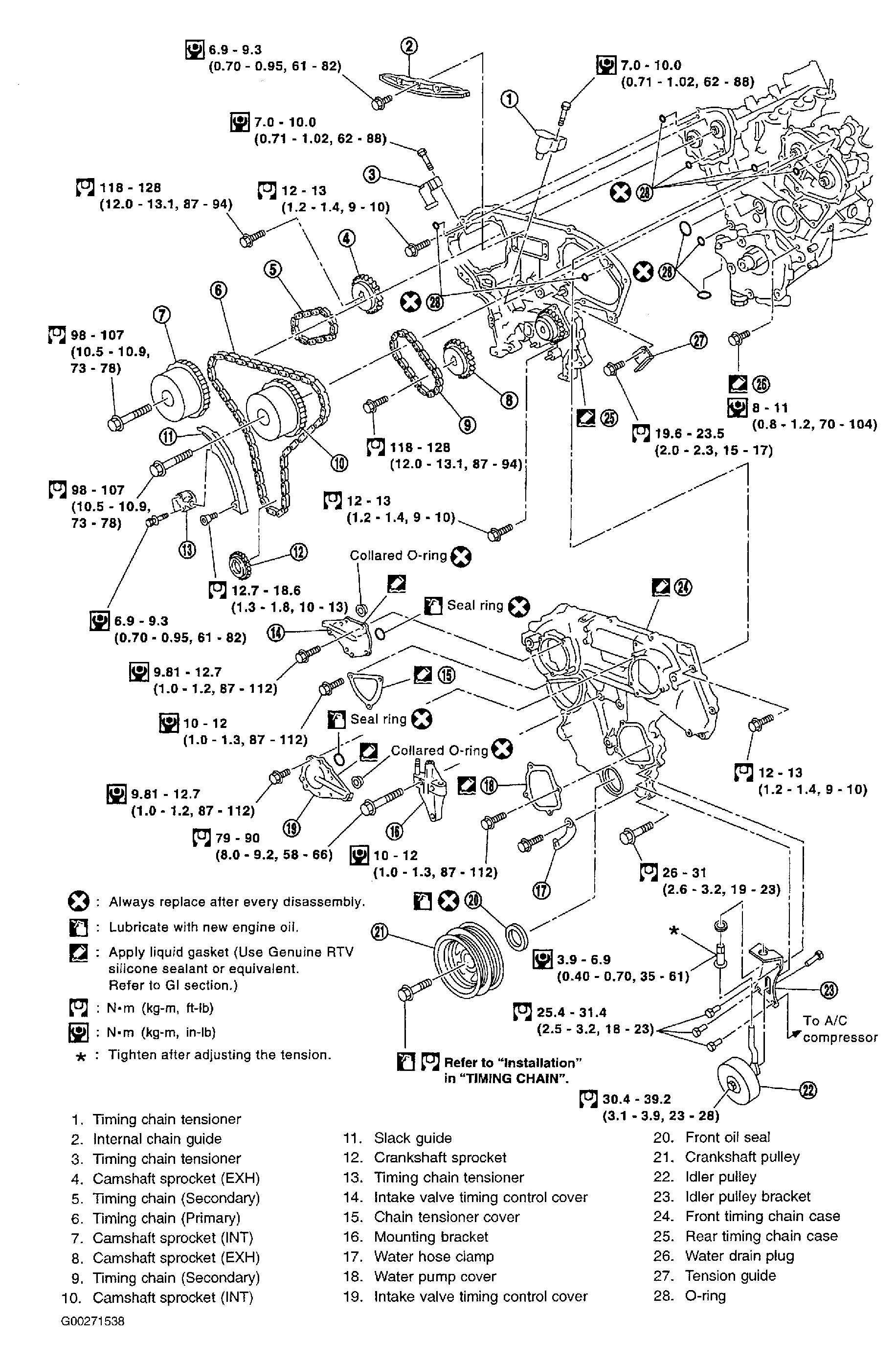

Apply new engine oil to parts before installing the parts, as shown in the illustration. See Figure
.
NOTE:
Do not remove or disassemble components or parts unless instructed to do so in the text or illustrations.
NOTE:
For fuel pressure release, see FUEL PRESSURE RELEASE
under FUEL SYSTEM in SYSTEM & COMPONENT TESTING article, for Fuel Pressure, see CHECKING FUEL PRESSURE
in BASIC DIAGNOSTIC PROCEDURES article.
