Front Suspension: Description

I35 uses a MacPherson strut-type front suspension system. Transverse links are connected to lower ball joint at bottom of steering knuckle. Strut assemblies are connected to top of steering knuckle. See Fig 1 and Fig 2 .

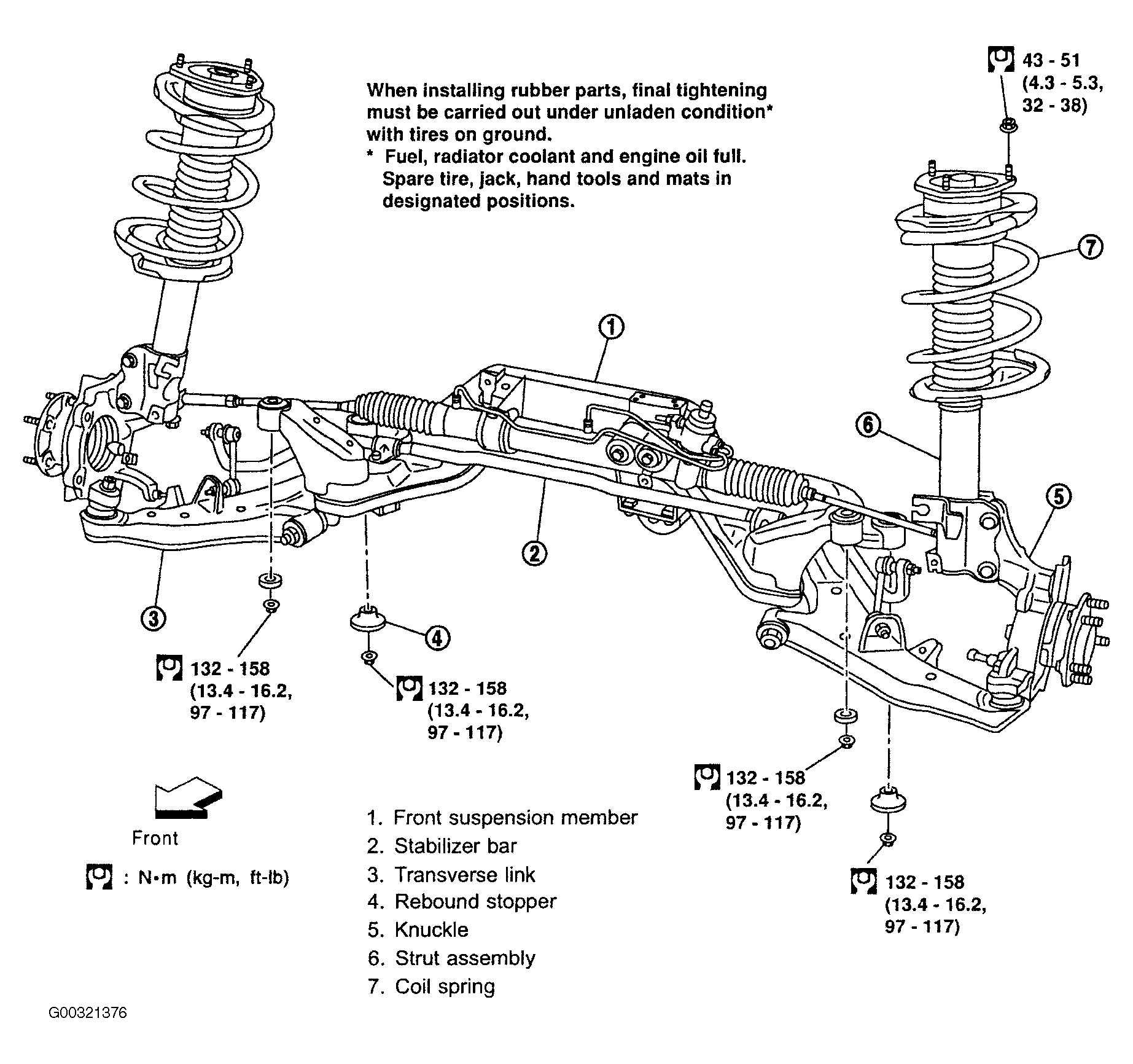

Fig 1: Identifying Front Suspension Components (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

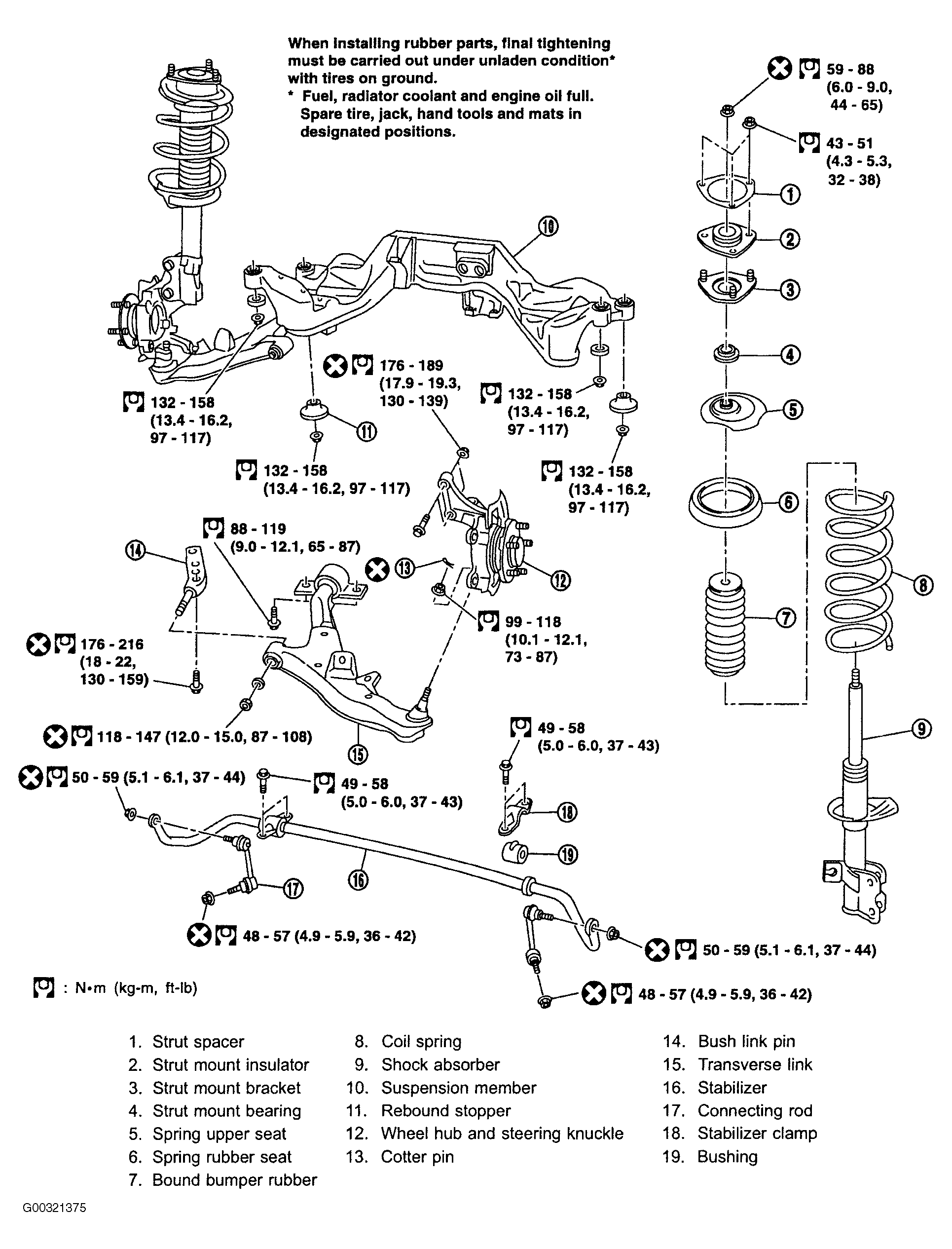

Fig 2: Identifying Front Suspension Components (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
