With CONSULT-II

  1. Turn ignition switch ON and select "DATA MONITOR" mode for A/T with CONSULT- II.
  2. Start engine.
  3. Run engine for at least 2 seconds at idle speed.
    Fig 1: Display Select system Sheet With Consult-II
    G02090793Courtesy of NISSAN MOTOR CO., U.S.A.

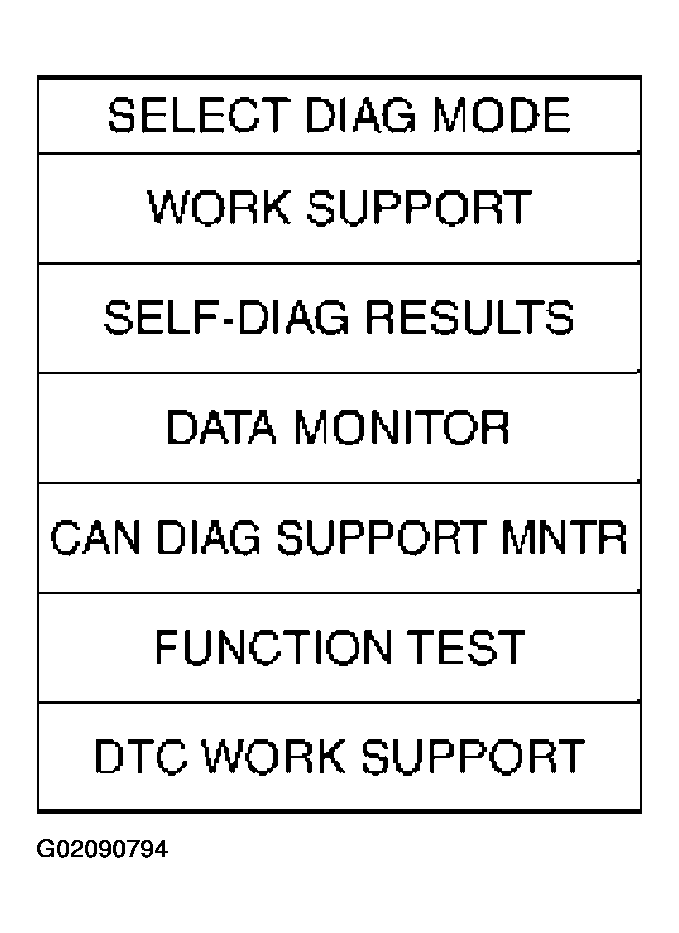

    Fig 2: Display Select Diag Mode Sheet With Consult-II
    G02090794Courtesy of NISSAN MOTOR CO., U.S.A.
