With CONSULT-II

  1. Turn ignition switch "ON" and select "DATA MONITOR" mode for A/T with CONSULT-II.
  2. Start engine.
    Fig 1: Display Select system Sheet With Consult-II
    G02090796Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Run engine for at least 2 seconds at idle speed.

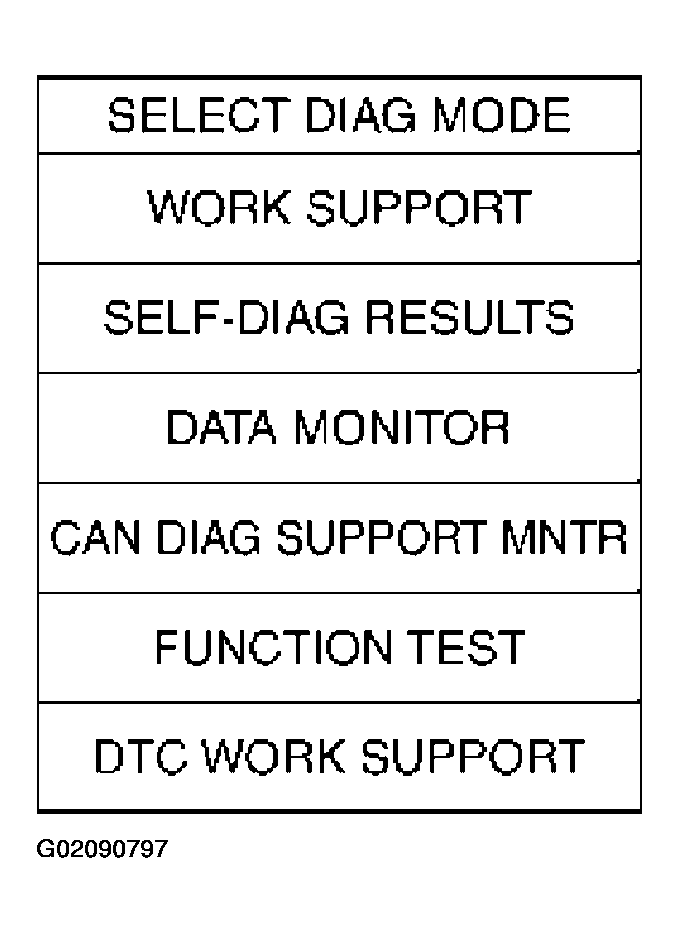

    Fig 2: Display Select Diag Mode Sheet With Consult-II
    G02090797Courtesy of NISSAN MOTOR CO., U.S.A.
