Data Monitor Mode (A/T)

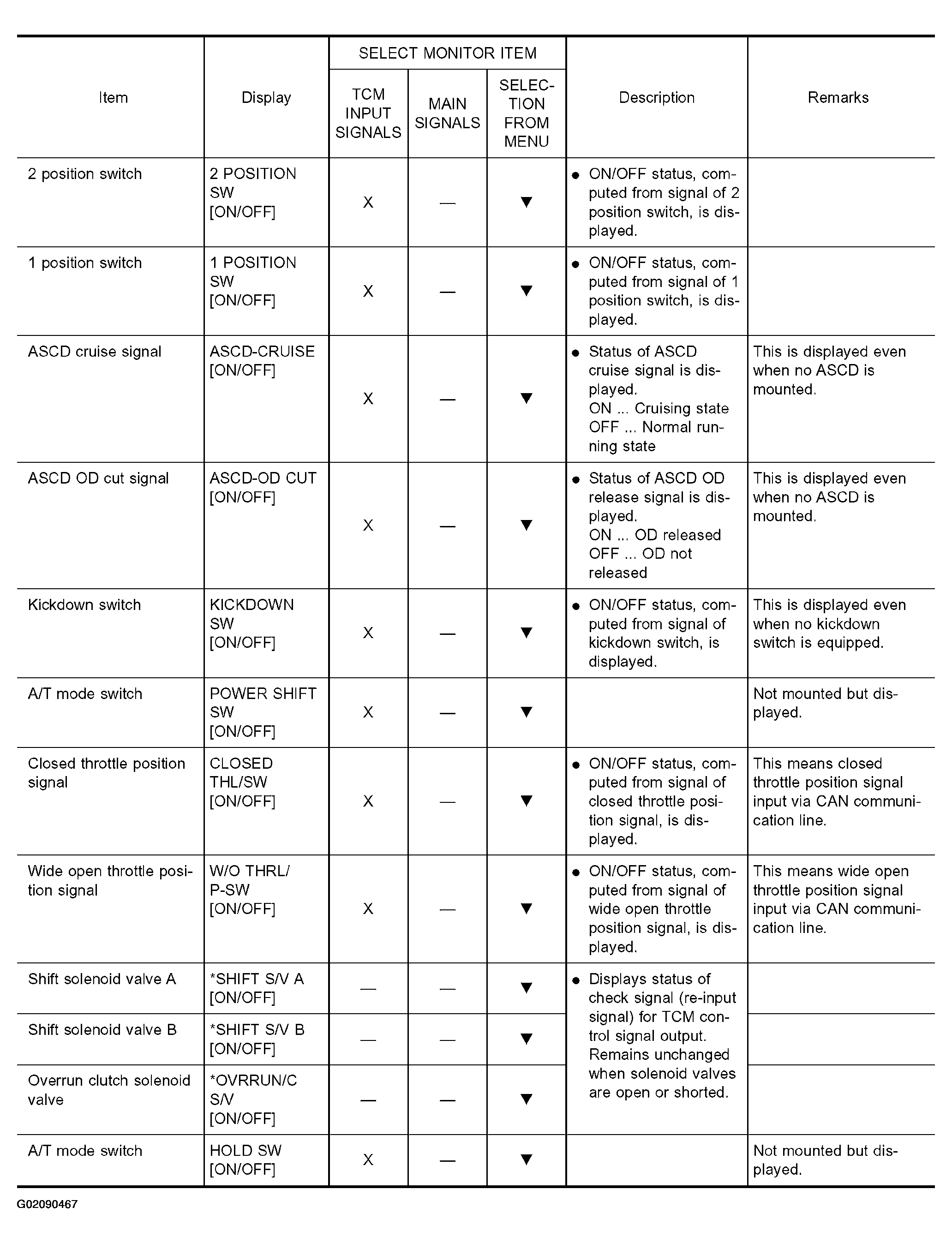

Fig 1: Identifying Self-Diagnostic Result Test Mode Table (3 of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

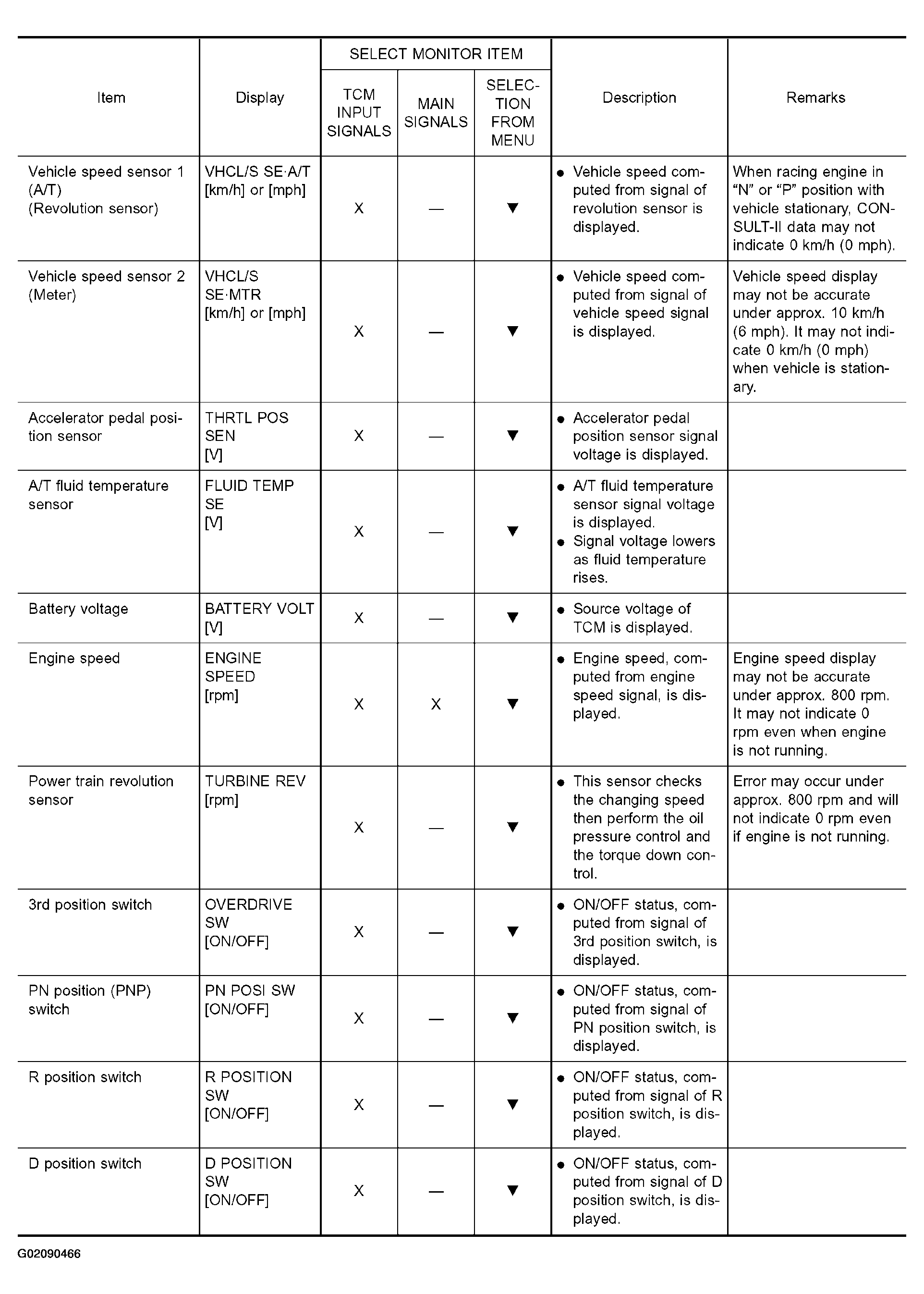

Fig 2: Identifying Self-Diagnostic Result Test Mode Table (4 of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Self-Diagnostic Result Test Mode Table (5 of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Self-Diagnostic Result Test Mode Table (6 of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
