Hydraulic Control Circuit

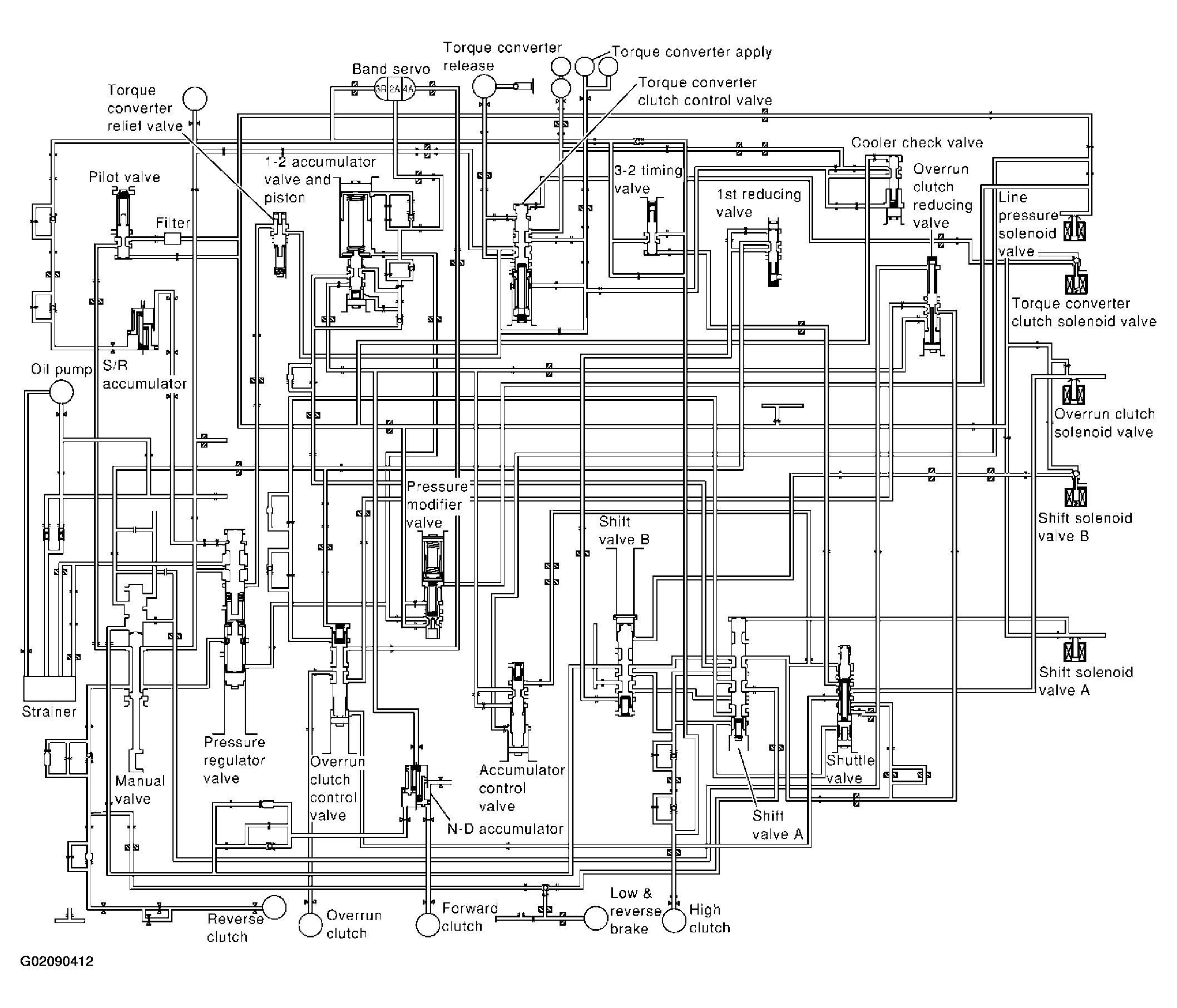

Fig 1: Identifying A/T Hydraulic Control Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
