Oil Channel
Oil Channel

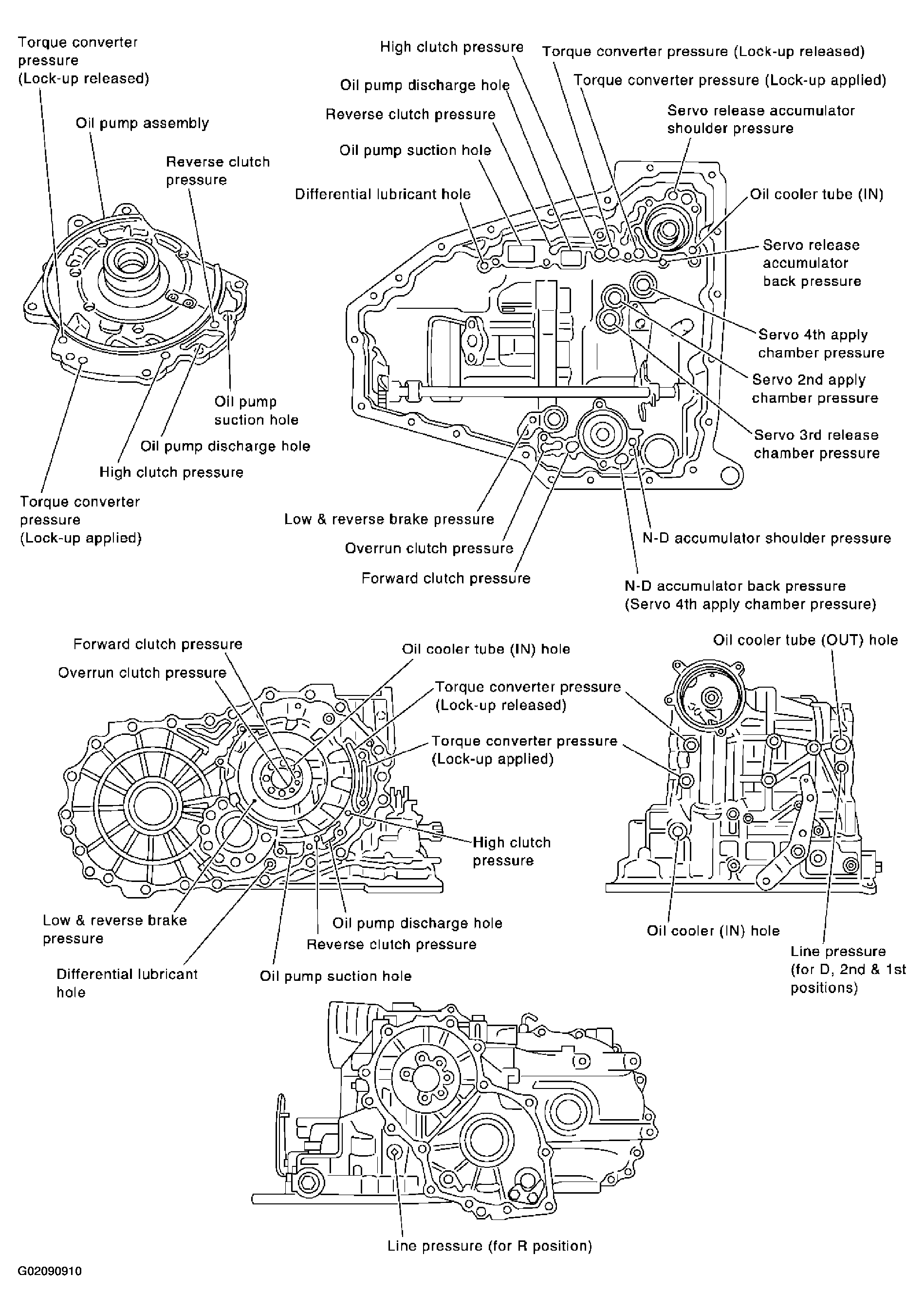

Fig 1: Identifying A/T Oil Channel Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
