Final Drive: Components

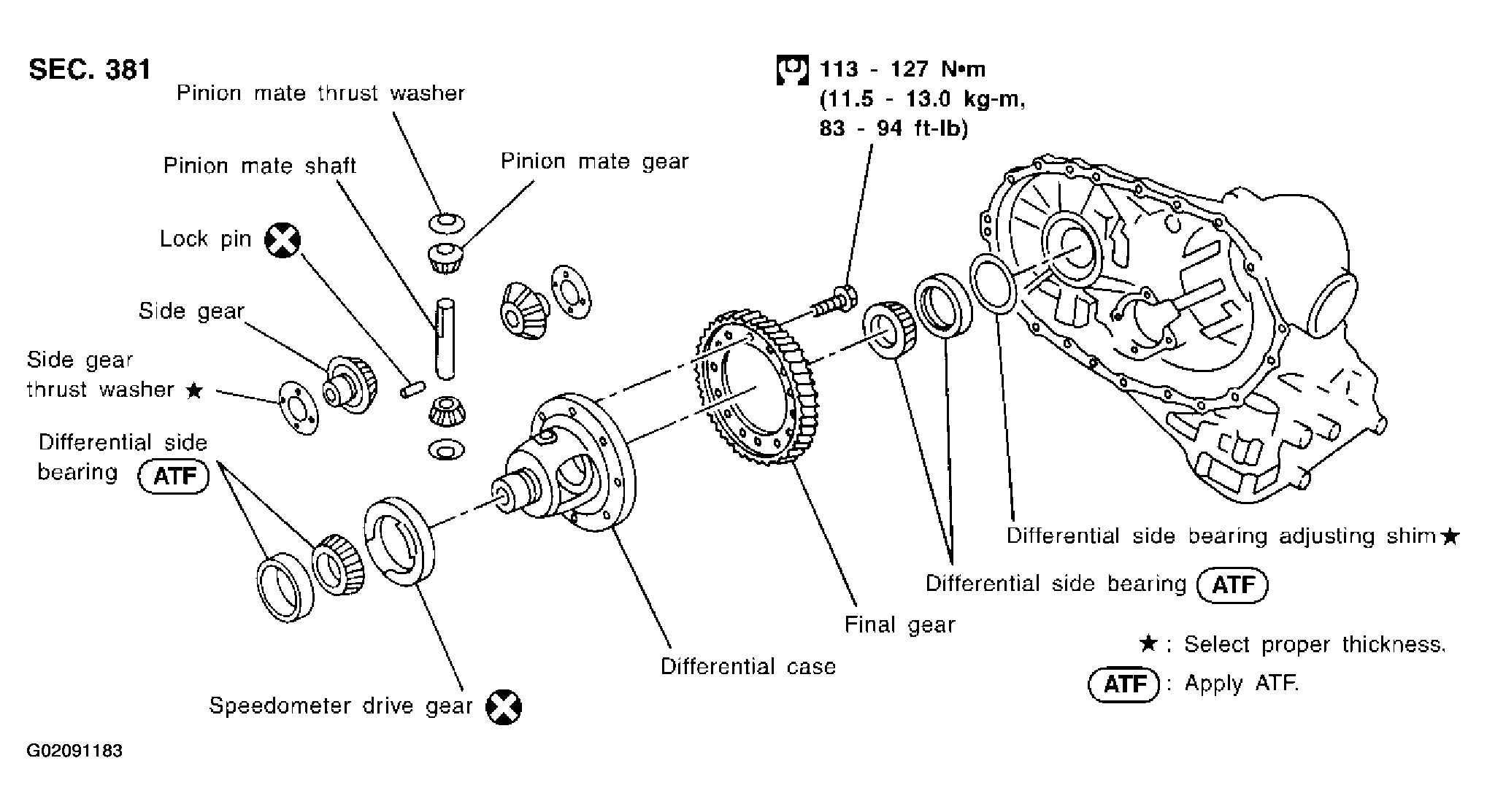

Fig 1: Identifying Final Drive Component
G02091183Courtesy of NISSAN MOTOR CO., U.S.A.
