Reverse Clutch: Components

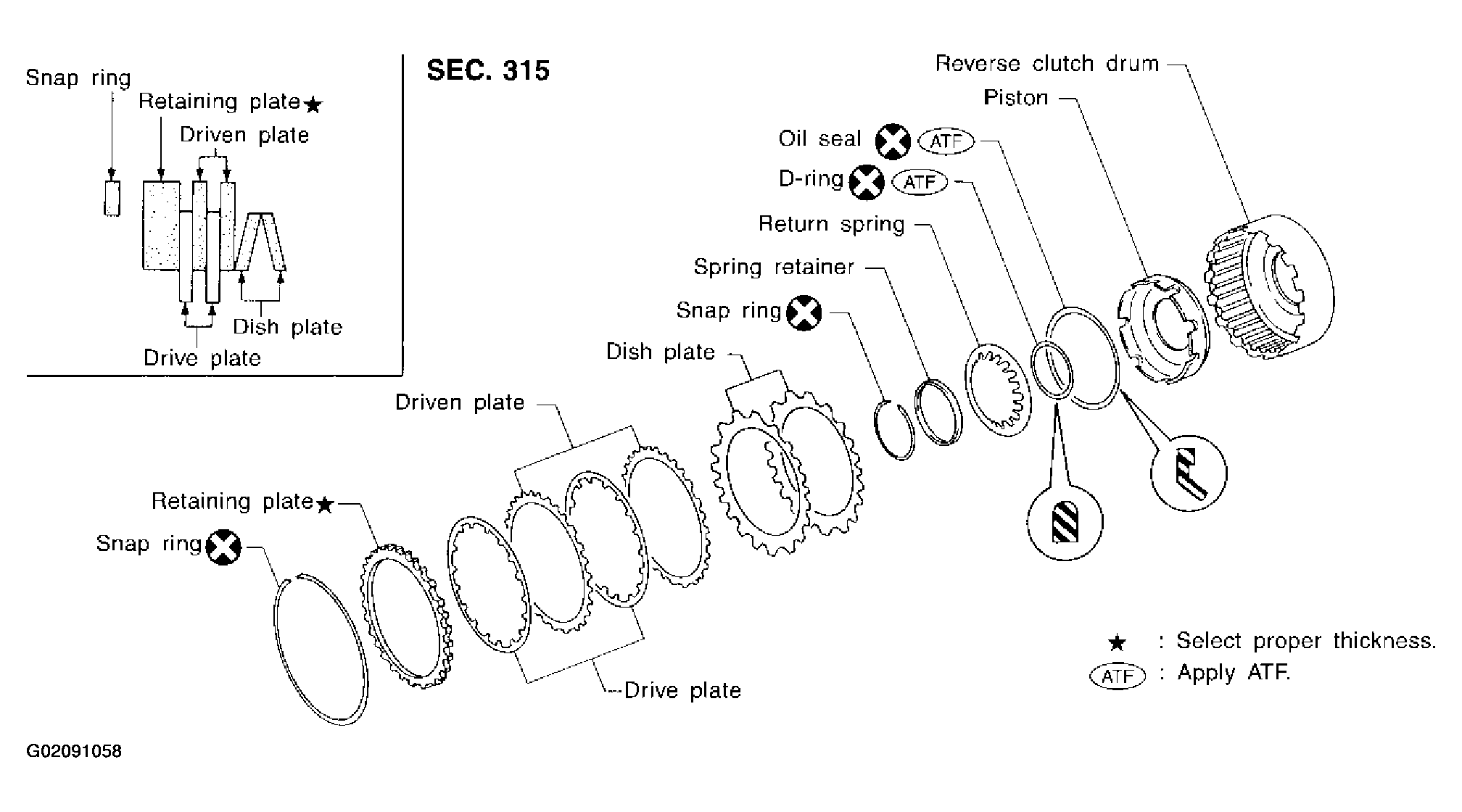

Fig 1: Exploded View Of Reverse Clutch Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
