Removal and Installation: Removal

1. Remove spiral cable assembly. Refer to "SPIRAL CABLE ".
2. Remove steering angle sensor from spiral cable assembly.

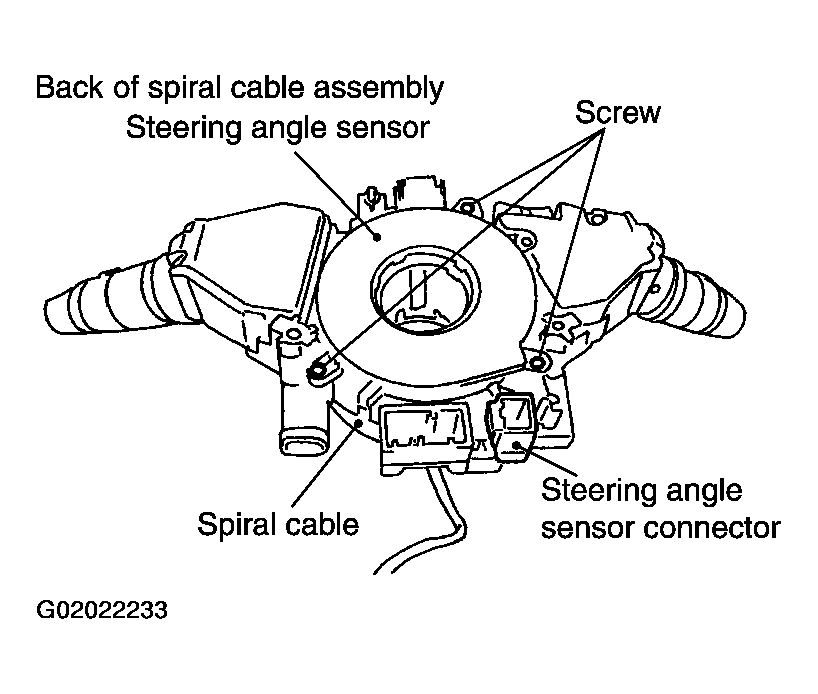

Fig 1: Identifying Steering Angle Sensor, Steering Angle Sensor Connector And Spiral Cable

Courtesy of NISSAN MOTOR CO., U.S.A.
