Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 5 .

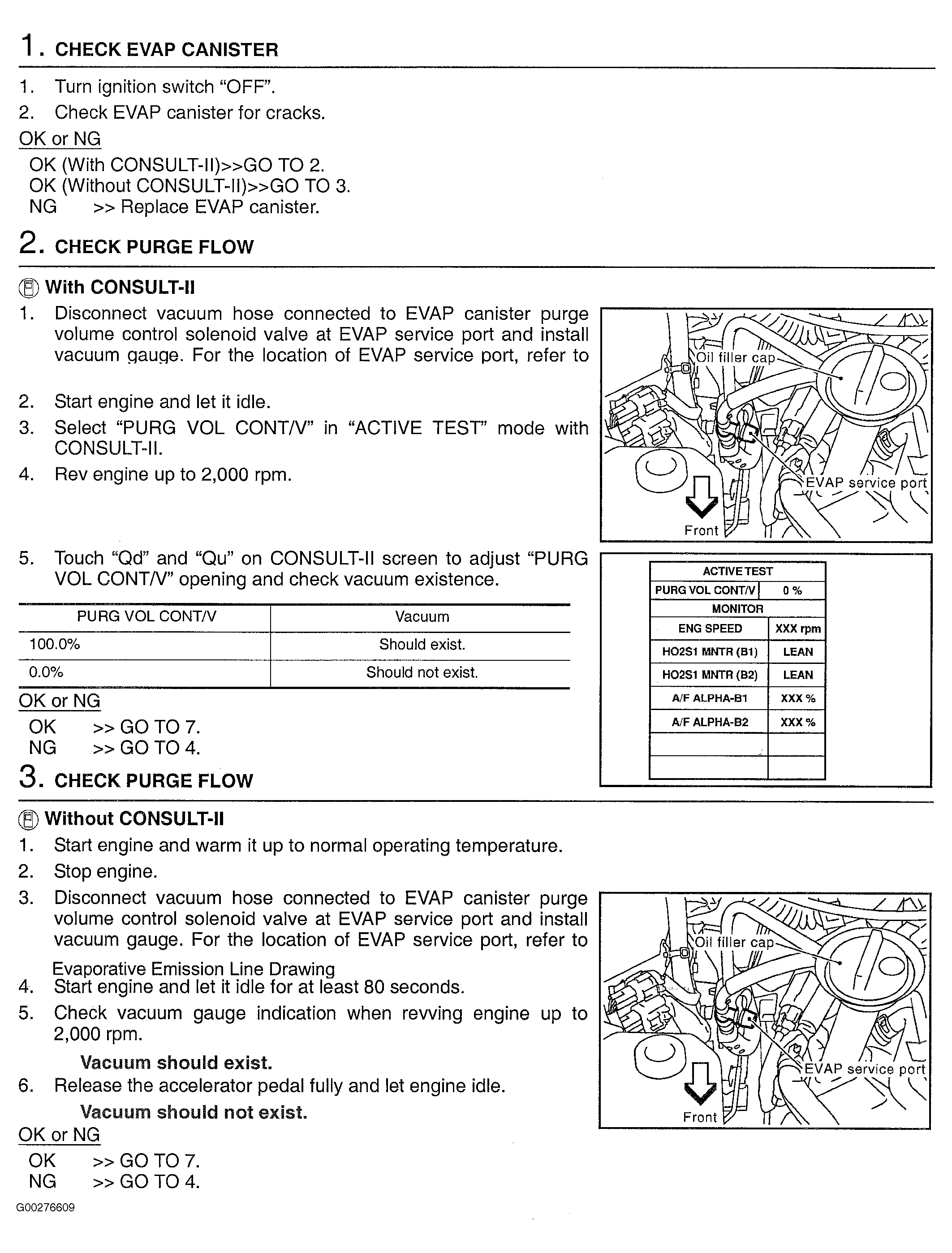

Fig 1: Diagnostic Procedure (Steps 1-3)

Courtesy of NISSAN MOTOR CO., U.S.A.

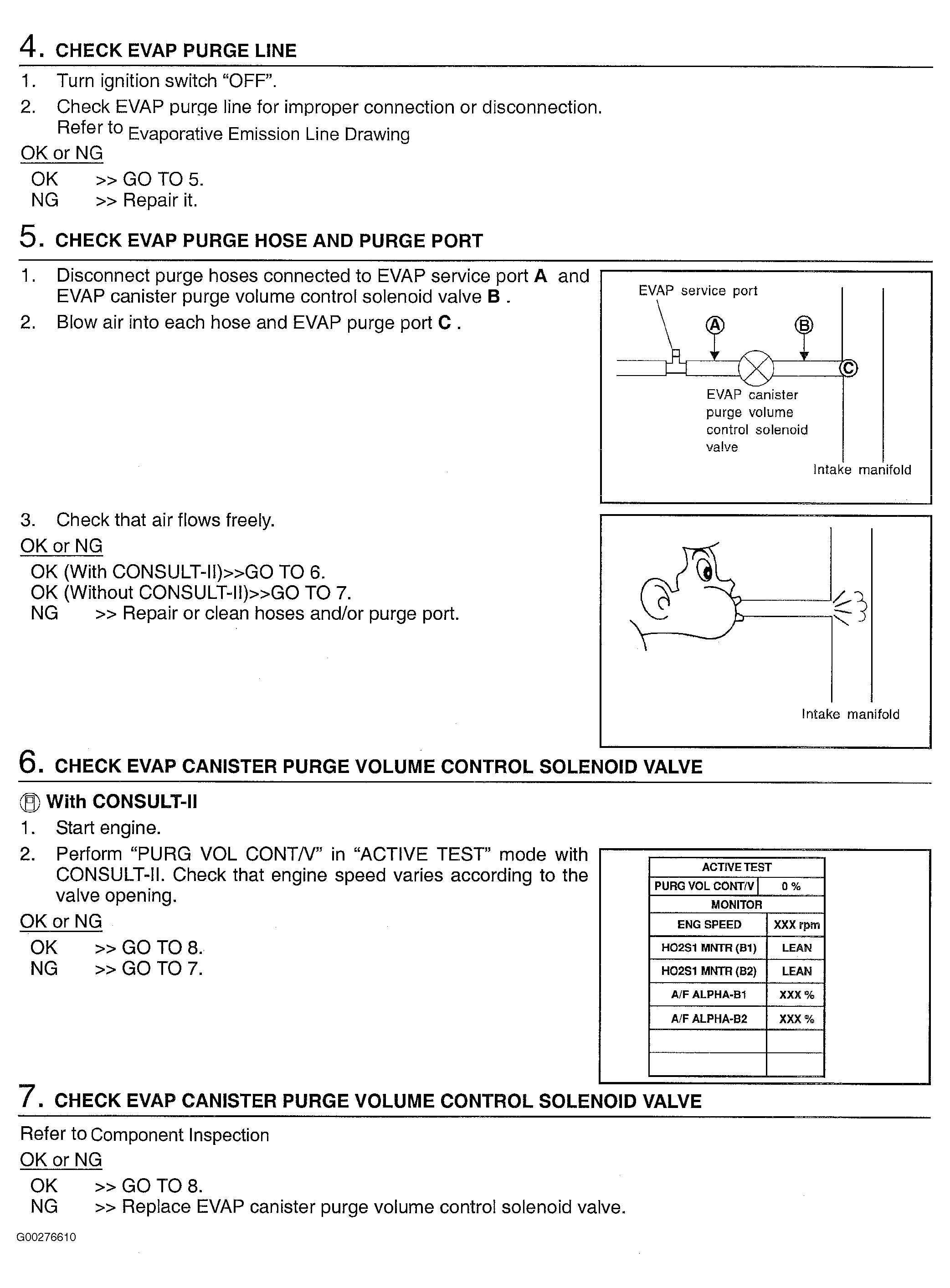

Fig 2: Diagnostic Procedure (Steps 4-7)

Courtesy of NISSAN MOTOR CO., U.S.A.

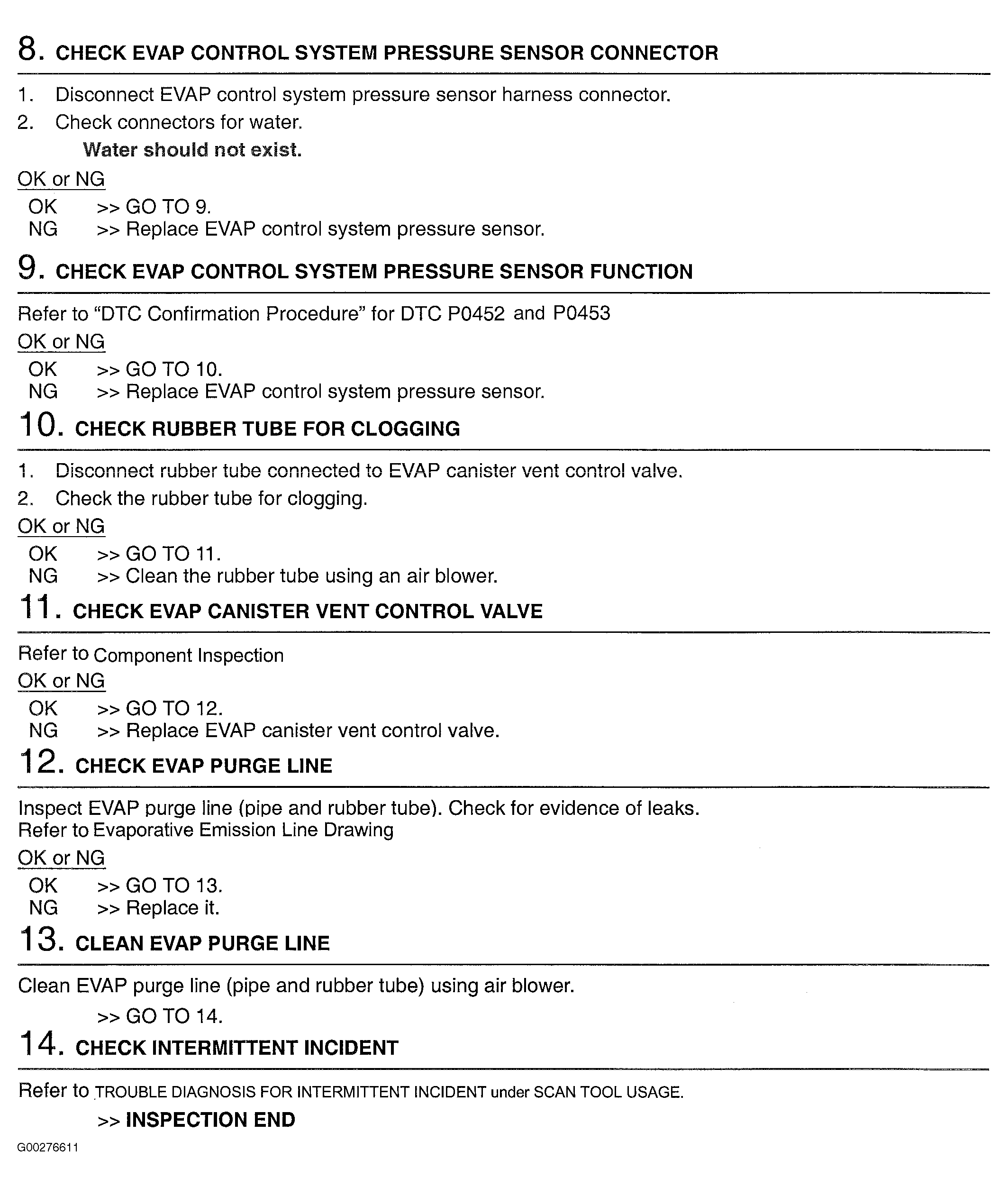

Fig 3: Diagnostic Procedure (Steps 8-14)

Courtesy of NISSAN MOTOR CO., U.S.A.

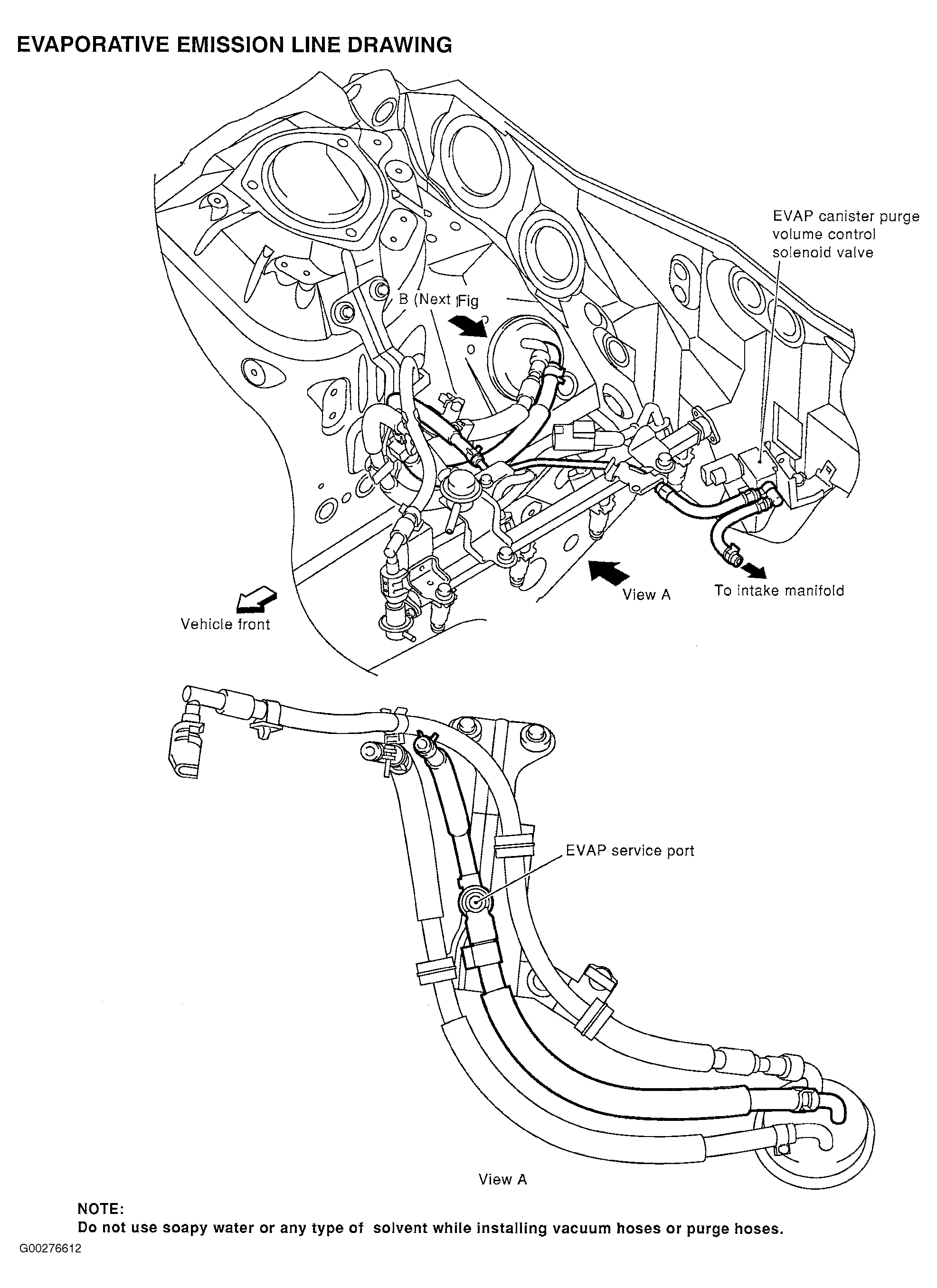

Fig 4: Evaporative Emission Line Drawing (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

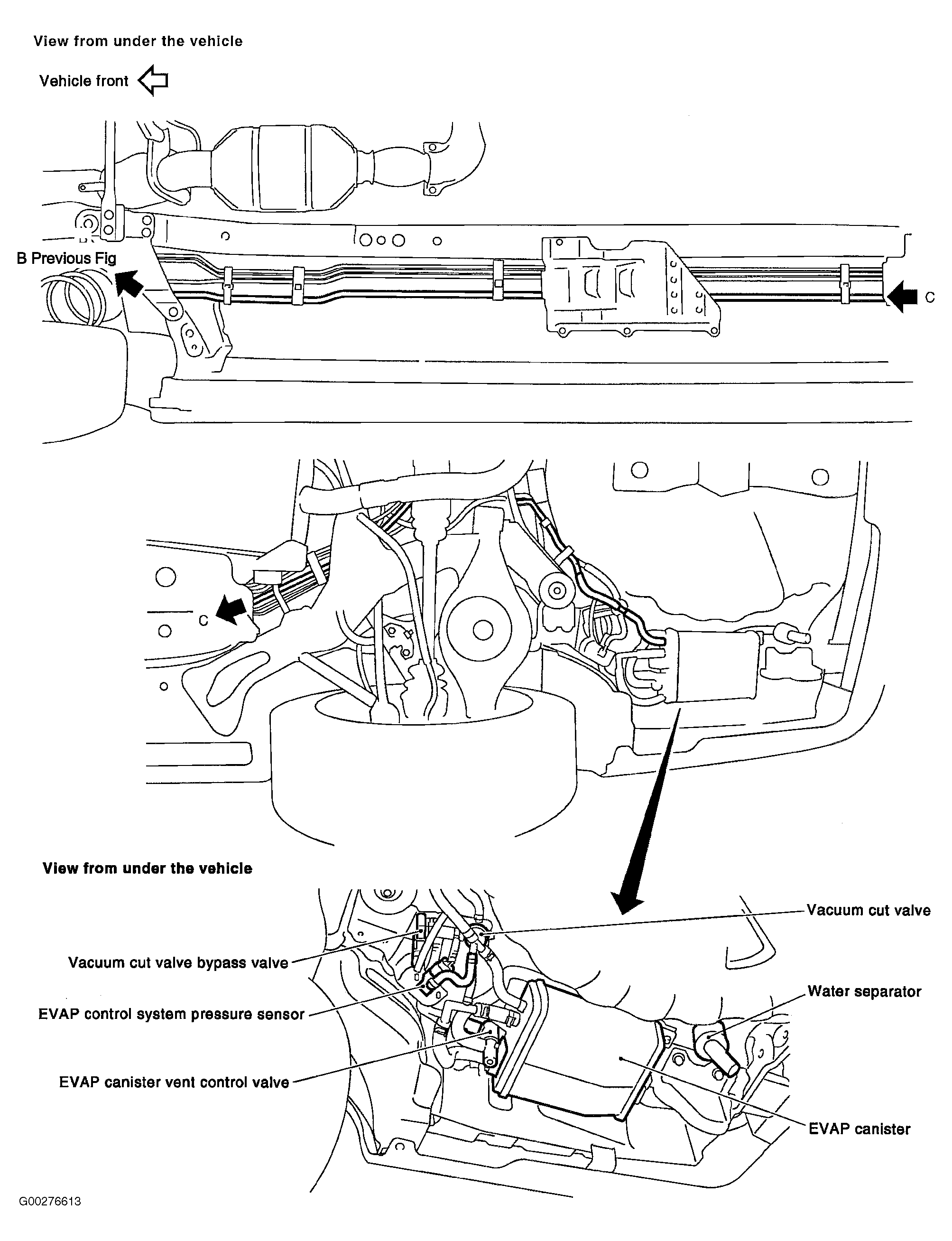

Fig 5: Evaporative Emission Line Drawing (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
