Component Inspection

For component inspection, see Fig 1 .

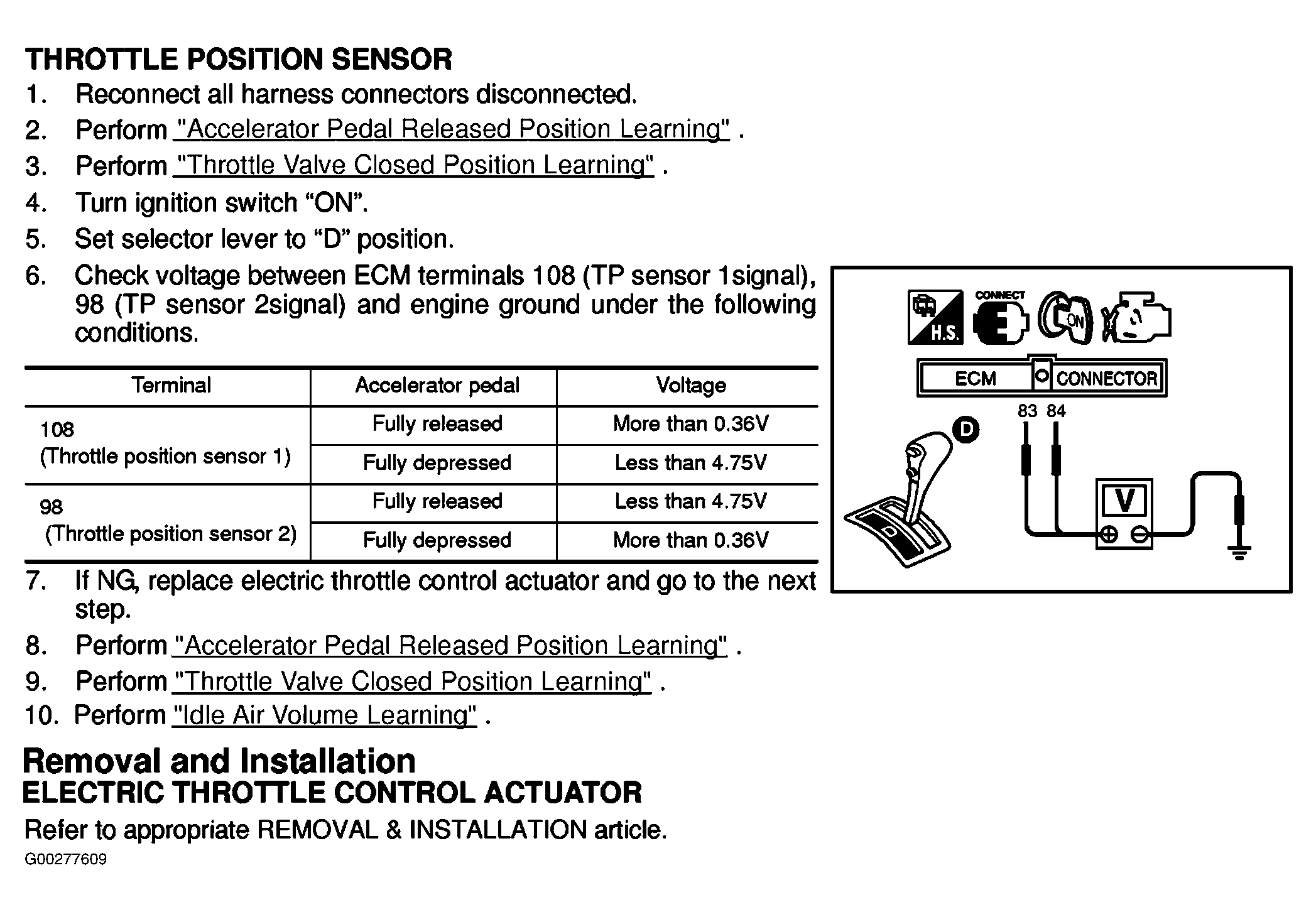

Fig 1: Component Inspection
G00277609Courtesy of NISSAN MOTOR CO., U.S.A..
