Automatic Drive Positioner: Schematic

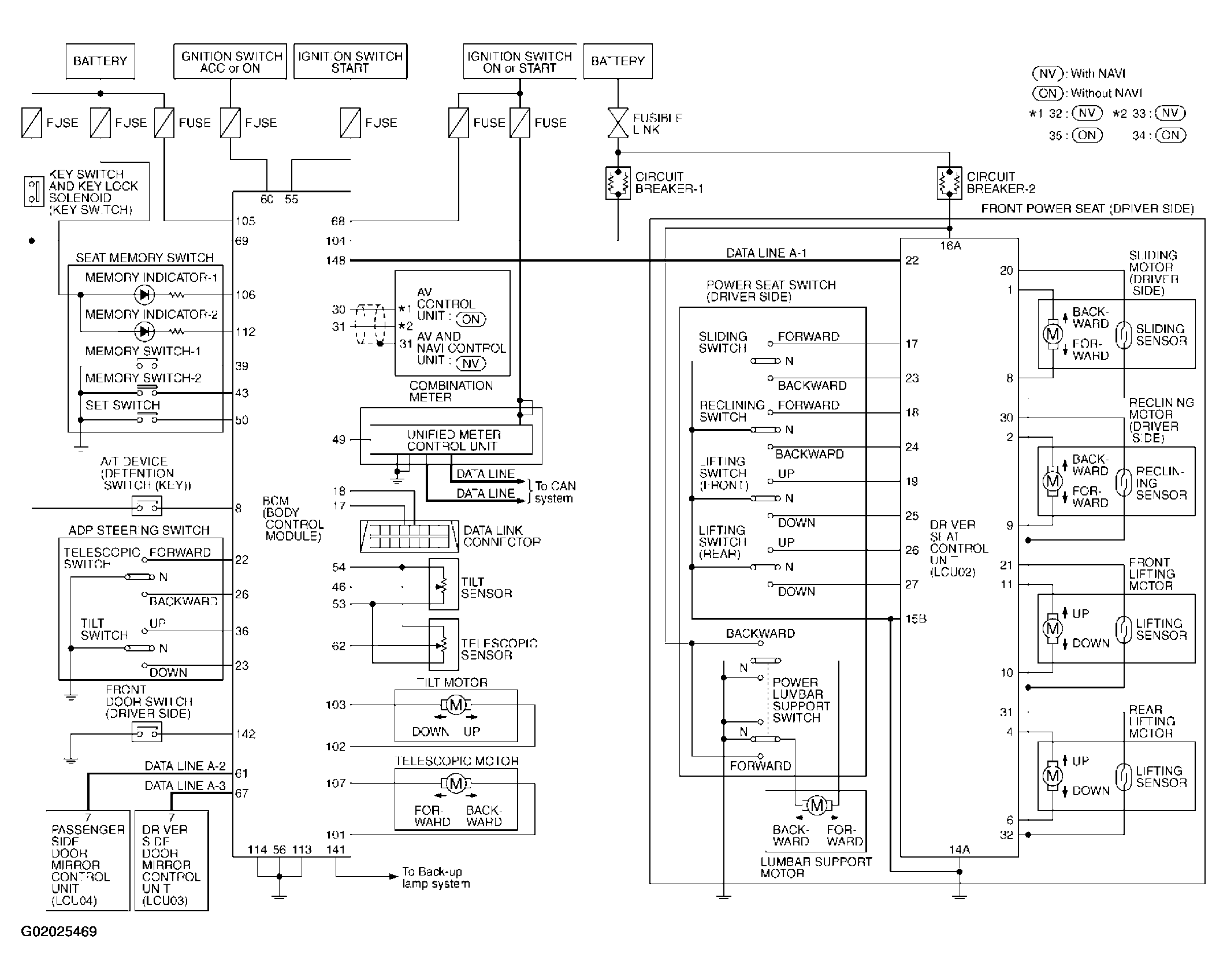

Fig 1: Automatic Drive Positioner Schematic Diagram
G02025469Courtesy of NISSAN MOTOR CO., U.S.A.
