Power Window System
›
Component Parts and Harness Connector Location
Component Parts and Harness Connector Location

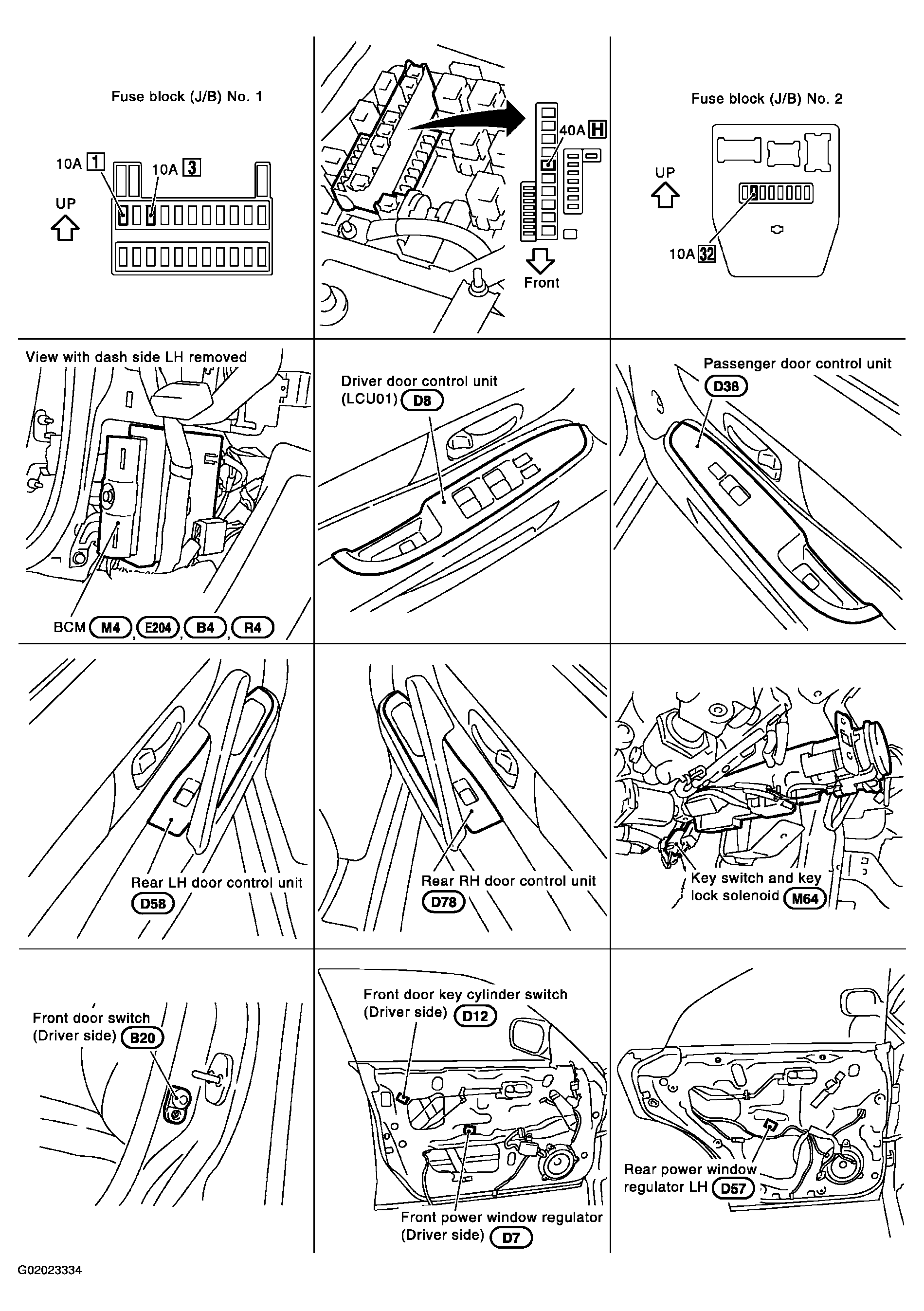

Fig 1: Locating Power Window System Components And Harness Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
