Power Window System
›
Schematic
Power Window System: Schematic

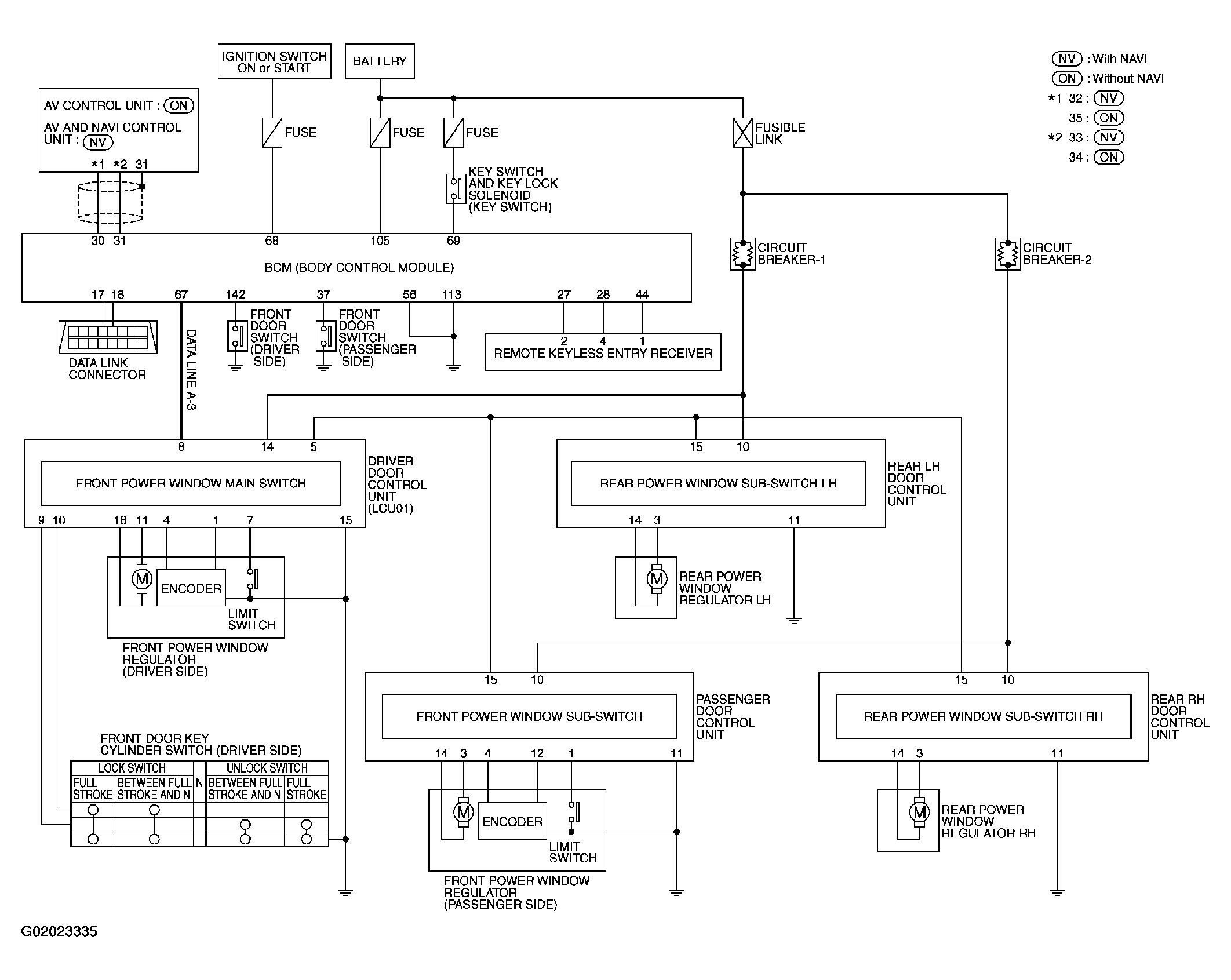

Fig 1: Power Window System Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
