Brake Control System
›
System Description
›
Hydraulic Circuit Diagram
Hydraulic Circuit Diagram

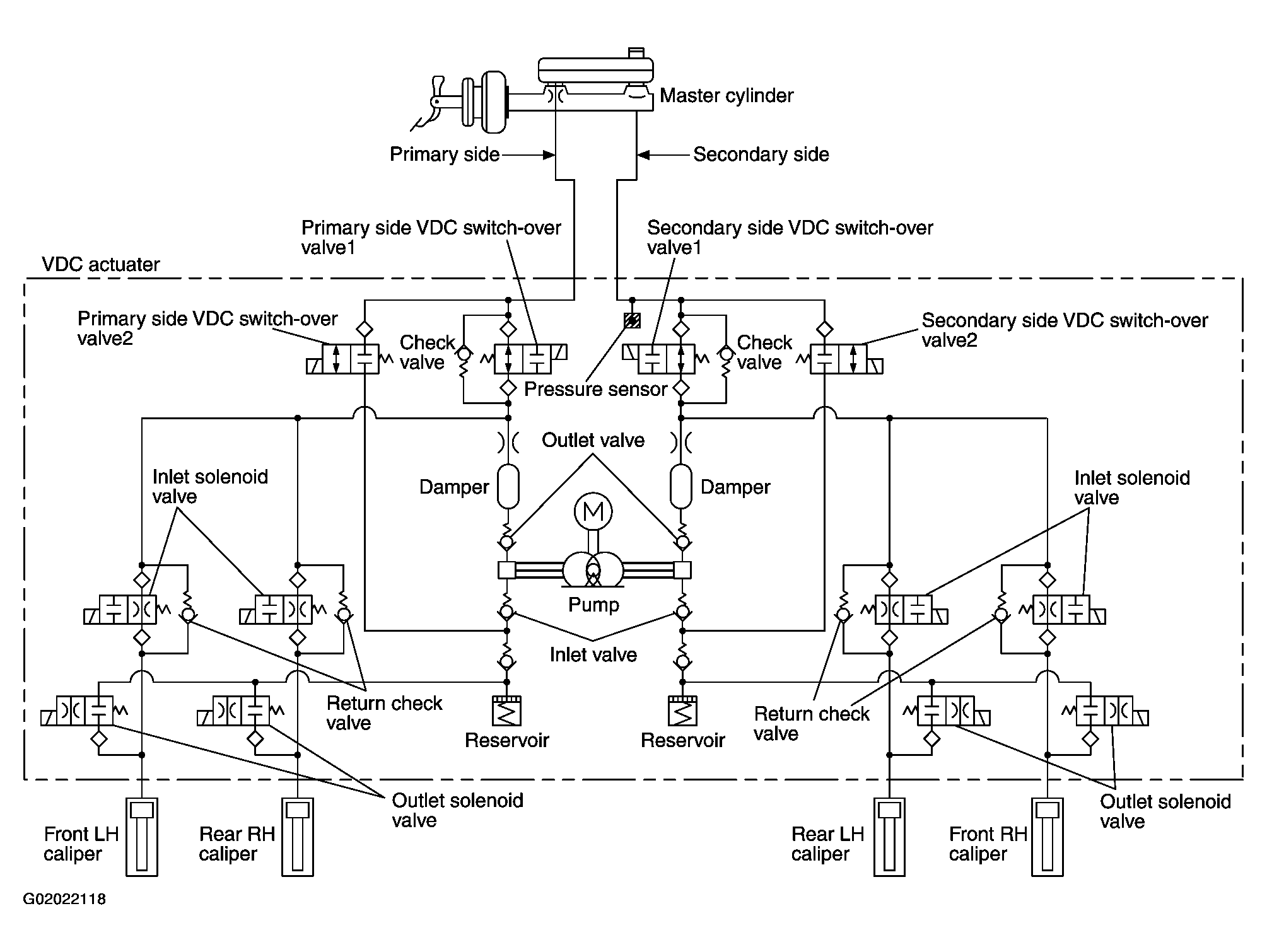

Fig 1: VDC, TCS And ABS Hydraulic Circuit Diagram
