Consult-II Basic Operation Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
  3. Turn ignition switch ON.

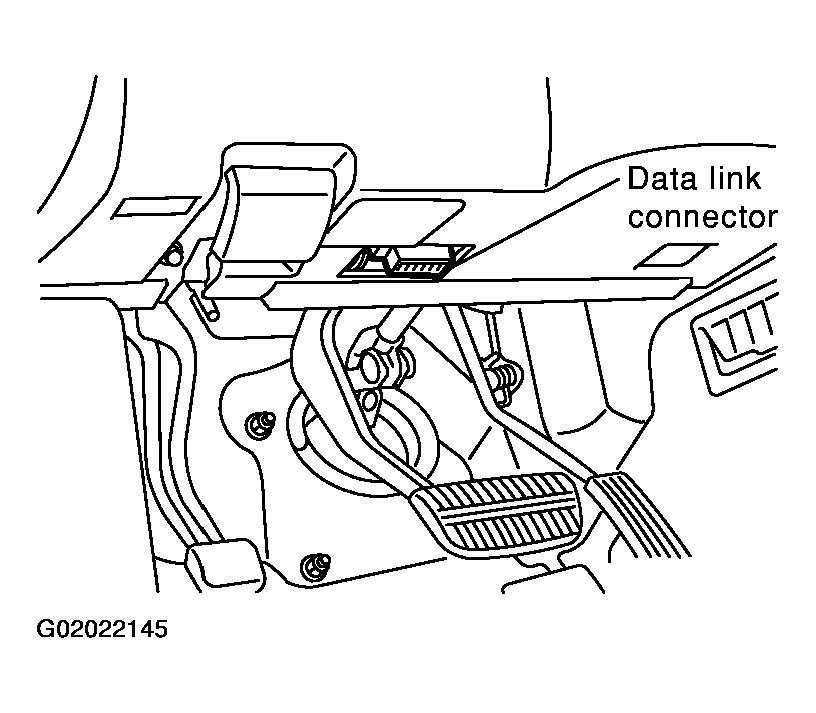

    Fig 1: CONSULT-II Basic Operation Procedure (1 Of 4)
    G02022145Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: CONSULT-II Basic Operation Procedure (2 Of 4)
    G02022146Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "VDC" in the "Diagnosis System Selection" screen. If "VDC" is not indicated, "CONSULT-II Data Link Connector (DLC) Circuit".
    Fig 3: CONSULT-II Basic Operation Procedure (3 Of 4)
    G02022147Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select the required diagnostic location from the "Diagnosis Mode Selection" screen.

    For further information, see the CONSULT-II Operation Manual.

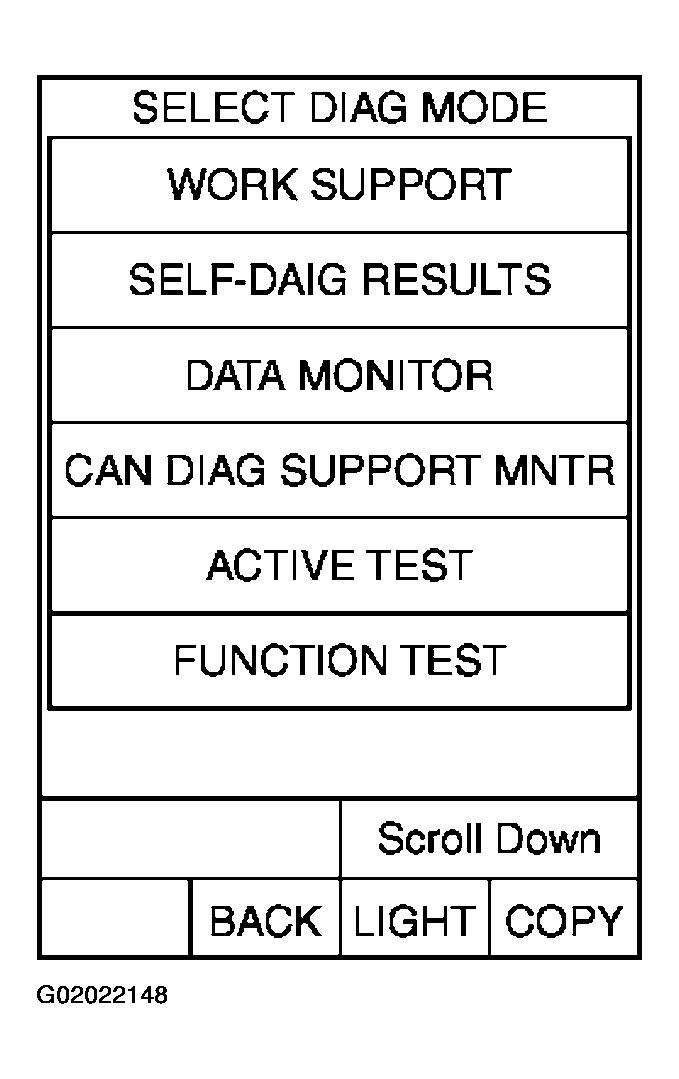

    Fig 4: CONSULT-II Basic Operation Procedure (4 Of 4)
    G02022148Courtesy of NISSAN MOTOR CO., U.S.A.
